MPSA56/MMBTA56/PZTA56 PNP General Purpose Amplifier
February 2006
MPSA56/MMBTA56/PZTA56
PNP General Purpose Amplifier
Description
This device is designed for general purpose amplifier
applications at collector currents to 300mA. Sourced
from Process 73
Absolute Maximum Ratings*
T
A
= 25
°
C unless otherwise specified.
Parameter
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current – Continuous
Operating and Storage Junction Temperature Range
Symbol
V
CES
V
CBO
V
EBO
I
C
T
J
, T
STG
Value
-80
-80
-4.0
-500
-55 to +150
Unit
V
V
V
mA
°
C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Notes:
1. These ratings are based on a maximum junction temperature of 150°C.
2. These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
3. All voltages (V) and currents (A) are negative polarity for PNP transistors.
Thermal Characteristics
T
A
= 25°C unless otherwise noted.
Max
Characteristic
Total Device Dissipation,
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
Symbol
P
D
R
θ
JC
R
θ
JA
MPSA56
625
5.0
83.3
200
*MMBTA56
350
2.8
357
**PZTA56
1,000
8.0
125
Units
mW
mW/°C
°C/W
°C/W
*Device mounted on FR-4 PCB 1.6" x 1.6" x 0.06."
**Device mounted on FR-4 PCB 36mm x 18mm x 1.5mm; mounting pad for the collector lead min. 6 cm
2
.

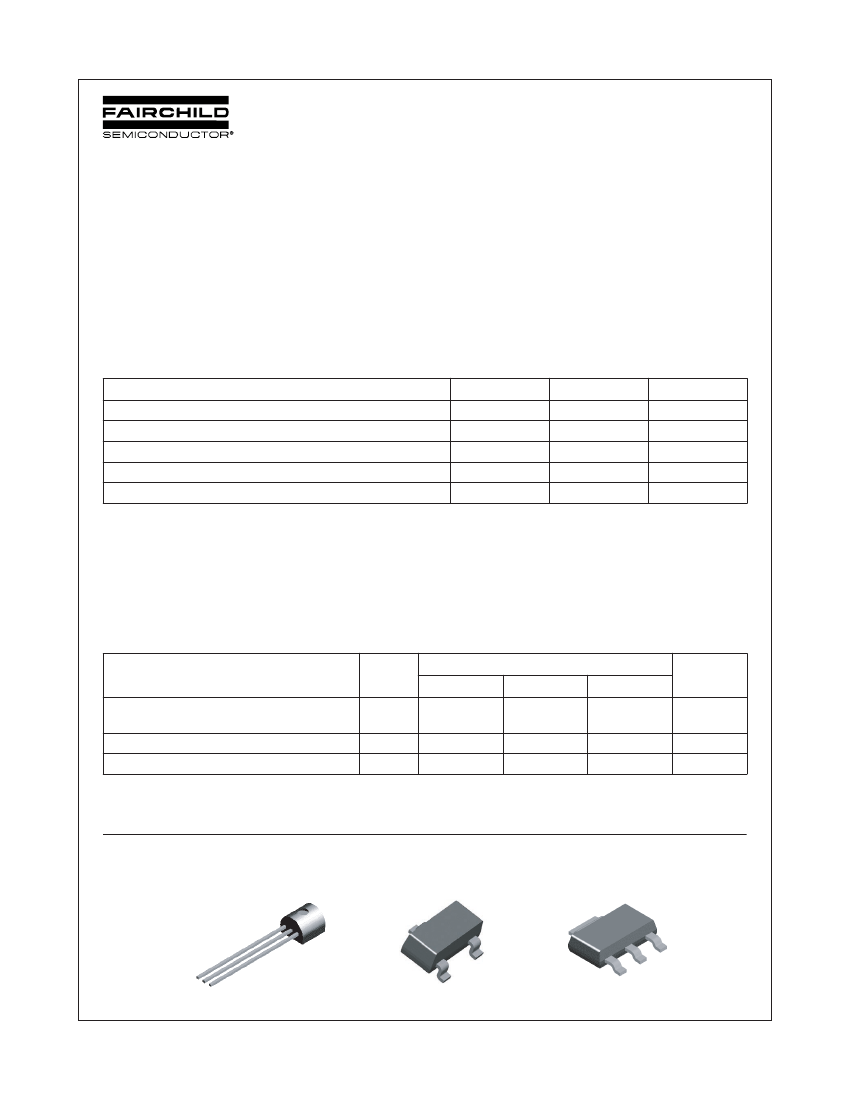

Packages
MPSA56
C
MMBTA56
C
PZTA56
E
C
B
E
C
B
TO-92
E
SOT-23
Mark: 2G
B
SOT-223
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
MPSA56/MMBTA56/PZTA56 Rev. 1.0.2
MPSA56/MMBTA56/PZTA56 PNP General Purpose Amplifier
Electrical Characteristics
T
A
= 25
°
C unless otherwise specified.
Parameter
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage*
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
Collector-Cutoff Current
ON CHARACTERISTICS
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
SMALL SIGNAL CHARACTERISTICS
Current Gain – Bandwidth Product
Symbol
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CEO
I
CBO
h
FE
V
CE(sat)
V
BE(on)
f
T
Test Condition
I
C
= -1.0mA, I
B
= 0
I
C
= -100µA, I
E
= 0
I
E
= -100µA, I
C
= 0
V
CE
= -60V, I
B
= 0
V
CB
= -80V, I
E
= 0
I
C
= -10mA, V
CE
= -1.0V
I
C
= -100mA, V
CE
= -1.0V
I
C
= -100mA, I
B
= -10mA
I
C
= -100mA, V
CE
= -1.0V
I
C
= -100mA, V
CE
= -1.0V,
f = 100MHz
Min.
-80
-80
-4.0
Max.
Units
V
V
V
-0.1
-0.1
100
100
-0.2
-1.2
50
µA
µA
V
V
MHz
*Pulse Test: Pulse Width
≤
300µs, Duty Cycle
≤
2.0%
Note:
All voltages (V) and currents (A) are negative polarity for PNP transistors.
Spice Model
PNP
(Is=12.27p Xti=3 Eg=1.11 Vaf=100 Bf=91.63 Ne=1.531 Ise=12.27p Ikf=1.009 Xtb=1.5 Br=1.287 Nc=2 Isc=0 Ikr=0 Rc=.6
Cjc=48.28p Mjc=.5615 Vjc=.75 Fc=.5 Cje=106.7p Mje=.5168 Vje=.75 Tr=496.3n Tf=865.8p Itf=.2 Vtf=2 Xtf=.8 Rb=10)
2
MPSA56/MMBTA56/PZTA56 Rev. 1.0.2
www.fairchildsemi.com
MPSA56/MMBTA56/PZTA56 PNP General Purpose Amplifier

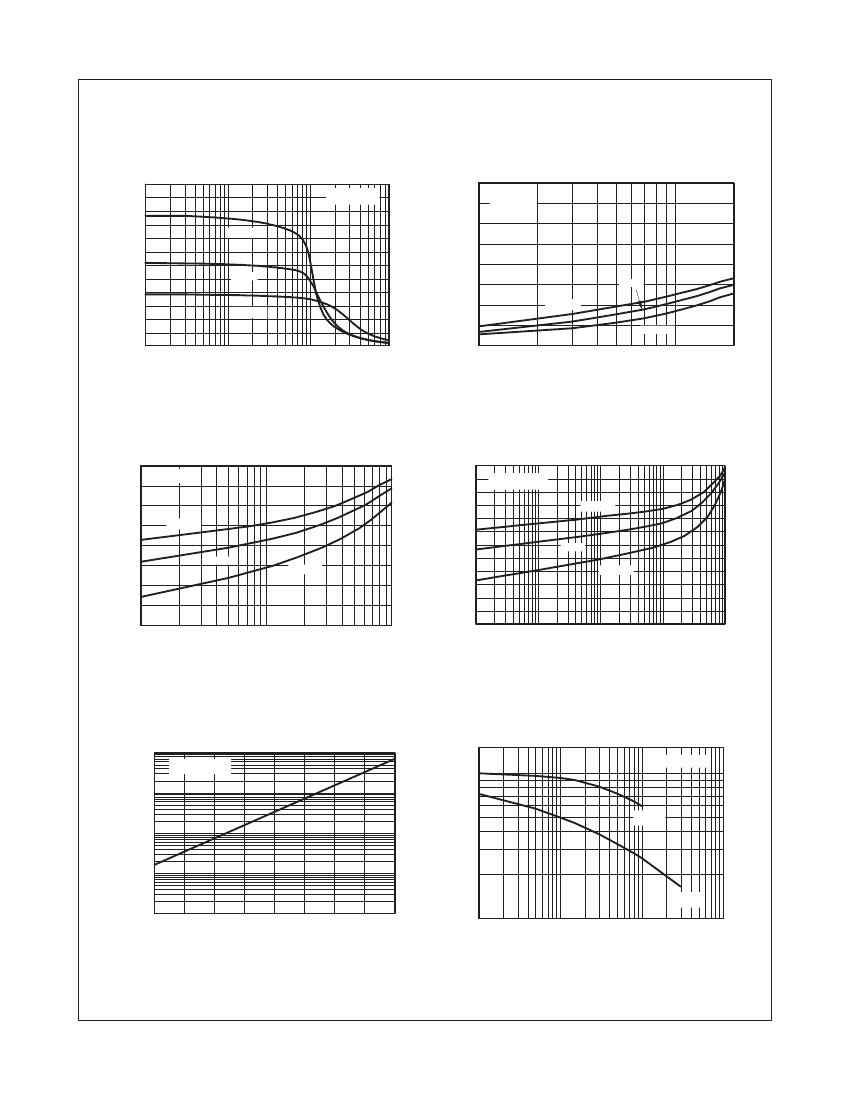

Typical Characteristics
V
CESAT
- COLLECTOR EMITTE R VOLTAGE (V)
TYP ICAL PULSED CURRE NT GAIN
Typical Pulsed Current Gain
vs Collector Curren
300
250
200
150
25°C
125°C
Collector-Emitter Saturation
Voltage vs Collector Current
-0.8
β
= 10
-0.6
V
CE
= -1V
-0.4
25°C
100
- 40°C
-0.2
- 40°C
125°C
50
-0.001
-0.01
-0.1
I
C
- COLLECTOR CURRENT (A)
-1
FE
-
h
0
-1
-100
I
C
- COLLECTOR CURRE NT (mA)
-1.2
V
BE( ON)
- BAS E EMITTER ON VOLTAGE (V)
Base-Emitter Saturation
Voltage vs Collector Current
V
BESAT
- BASE EM ITTE R VOLTAGE (V)
β
= 10
Base Emitter ON Voltage vs
Collect or Current
-1.2
V
CE
= -1V
-1
- 40
°C
-1
- 40
°C
-0.8
-0.6
-0.4
-0.2
0
-0.1
25
°C
125
°C
-0.8
25
°C
125
°C
-0.6
-0.4
-10
-100
I
C
- COLLECTOR CURRE NT (mA)
-1000
-1
-10
-100
I
C
- COLLECTOR CURRENT (mA)
-1000
Collector-Cutoff Current
vs Ambient Temperature
I
CBO
- COLLECTOR CURRENT (nA)
-10
V
CB
= -60V
-1
100
Input and Output Capacitance
vs Reverse Voltage
f = 1.0 MHz
CAPACITANCE (pF)
C
ib
-0.1
-0.01
C
ob
-0.001
25
50
75
100
T
A
- AMBIENT TEMPERATURE (°C)
125
-0.1
-1
-10
V
CE
- COLLECTOR VOLTAGE (V)
-100
3
MPSA56/MMBTA56/PZTA56 Rev. 1.0.2
www.fairchildsemi.com
MPSA56/MMBTA56/PZTA56 PNP General Purpose Amplifier
Typical Characteristics
(Continued)
V
CE
- COLLECTOR-EMITTER VOLTAGE (V)
Collector Saturation Region
-10
f
T
- GAIN BANDWIDTH PRODUCT (MHz)
Gain Bandwidth Product
vs Collector Current
350
-8
TA = 25°C
V
CE
= -5V
300
250
200
150
100
50
0
-1
-10
-100
-6
I=
-4
-1mA
-10mA
-100mA
-2
0
-3000
-5000
-10000
-20000
-30000 -50000
I
B
- BASE CURRENT (µA)
I
C
- COLLECTOR CURRENT (mA)
Power Dissipation vs
Ambient Temperature
1
P
D
- POWER DISSIPATION (W)
0.75
SOT-223
TO-92
0.5
SOT-23
0.25
0
0
25
50
75
100
TEMPERATURE (
o
C)
125
150
4
MPSA56/MMBTA56/PZTA56 Rev. 1.0.2
www.fairchildsemi.com
MPSA56/MMBTA56/PZTA56 PNP General Purpose Amplifier

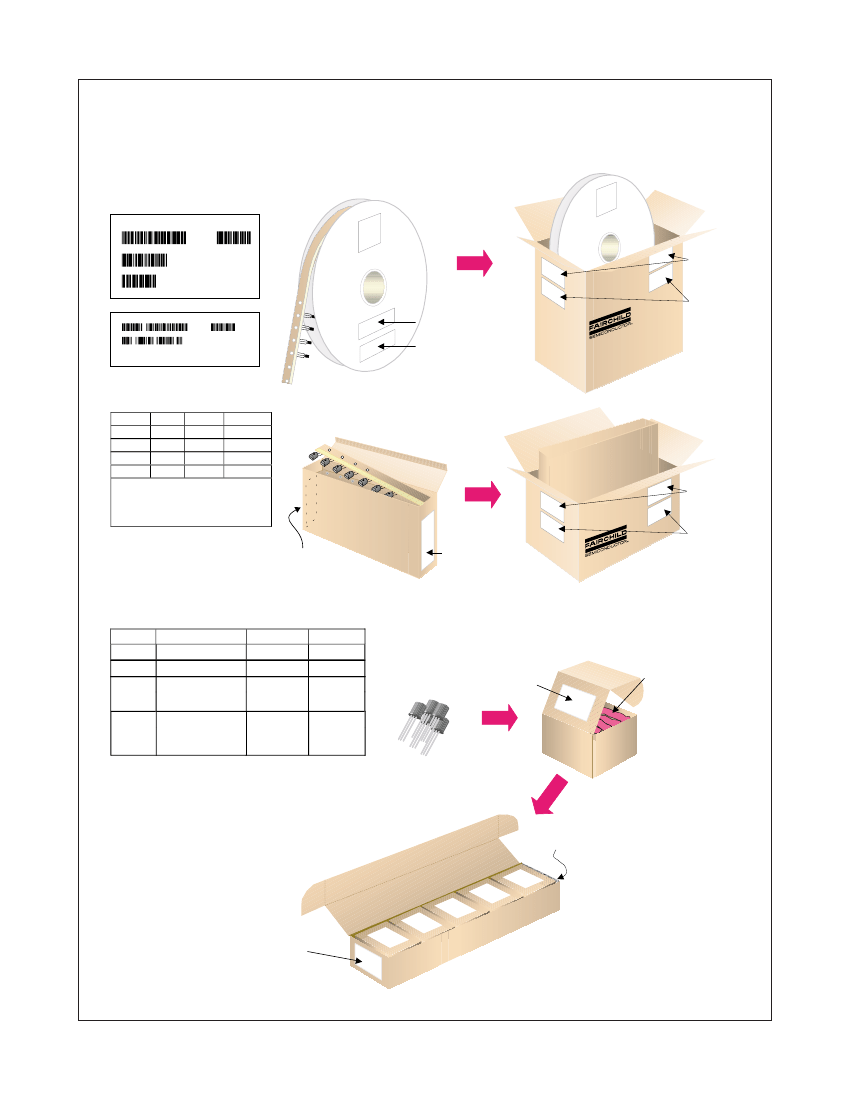

TO-92 Tape and Reel Data
TO-92 Packaging
Configuration:
Figure 1.0
TAPE and REEL OPTION
FSCINT Label sample
FAIRCHILD SEMICONDUCTOR CORPORATION
LOT:
CBVK741B019
HTB:B
QTY:
10000
See Fig 2.0 for various
Reeling Styles
NSID:
PN2222N
SPEC:
D/C1:
D9842
SPEC REV:
QA REV:
B2
FSCINT
Label
(FSCINT)
5 Reels per
Intermediate Box
F63TNR
Label
Customized
Label
375mm x 267mm x 375mm
Intermediate Box
F63TNR Label sample
LOT: CBVK741B019
FSID: PN222N
D/C1: D9842
D/C2:
QTY1:
QTY2:
QTY: 2000
SPEC:
SPEC REV:
CPN:
N/F: F
Customized
Label
(F63TNR)3
TO-92 TNR/AMMO PACKING INFROMATION
Packing
Reel
Style
A
E
Ammo
M
P
Quantity
2,000
2,000
2,000
2,000
EOL code
D26Z
D27Z
D74Z
D75Z
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
Unit weight
= 0.22 gm
Reel weight with components
= 1.04 kg
Ammo weight with components = 1.02 kg
Max quantity per intermediate box = 10,000 units
FSCINT
Label
327mm x 158mm x 135mm
Immediate Box
Customized
Label
5 Ammo boxes per
Intermediate Box
F63TNR
Label
333mm x 231mm x 183mm
Intermediate Box
Customized
Label
(TO-92) BULK PACKING INFORMATION
EOL
CODE
J18Z
J05Z
NO EOL
CODE
DESCRIPTION
TO-18 OPTION STD
TO-5 OPTION STD
TO-92 STANDARD
STRAIGHT FOR: PKG 92,
94 (NON PROELECTRON
SERIES), 96
TO-92 STANDARD
STRAIGHT FOR: PKG 94
(PROELECTRON SERIES
BCXXX, BFXXX, BSRXXX),
97, 98
LEADCLIP
DIMENSION
NO LEAD CLIP
NO LEAD CLIP
NO LEADCLIP
QUANTITY
2.0 K / BOX
1.5 K / BOX
2.0 K / BOX
BULK OPTION
See Bulk Packing
Information table
Anti-static
Bubble Sheets
FSCINT Label
L34Z
NO LEADCLIP
2.0 K / BOX
2000 units per
EO70 box for
std option
114mm x 102mm x 51mm
Immediate Box
5 EO70 boxes per
intermediate Box
530mm x 130mm x 83mm
Intermediate box
Customized
Label
FSCINT Label
10,000 units maximum
per intermediate box
for std option
5
MPSA56/MMBTA56/PZTA56 Rev. 1.0.2
www.fairchildsemi.com
