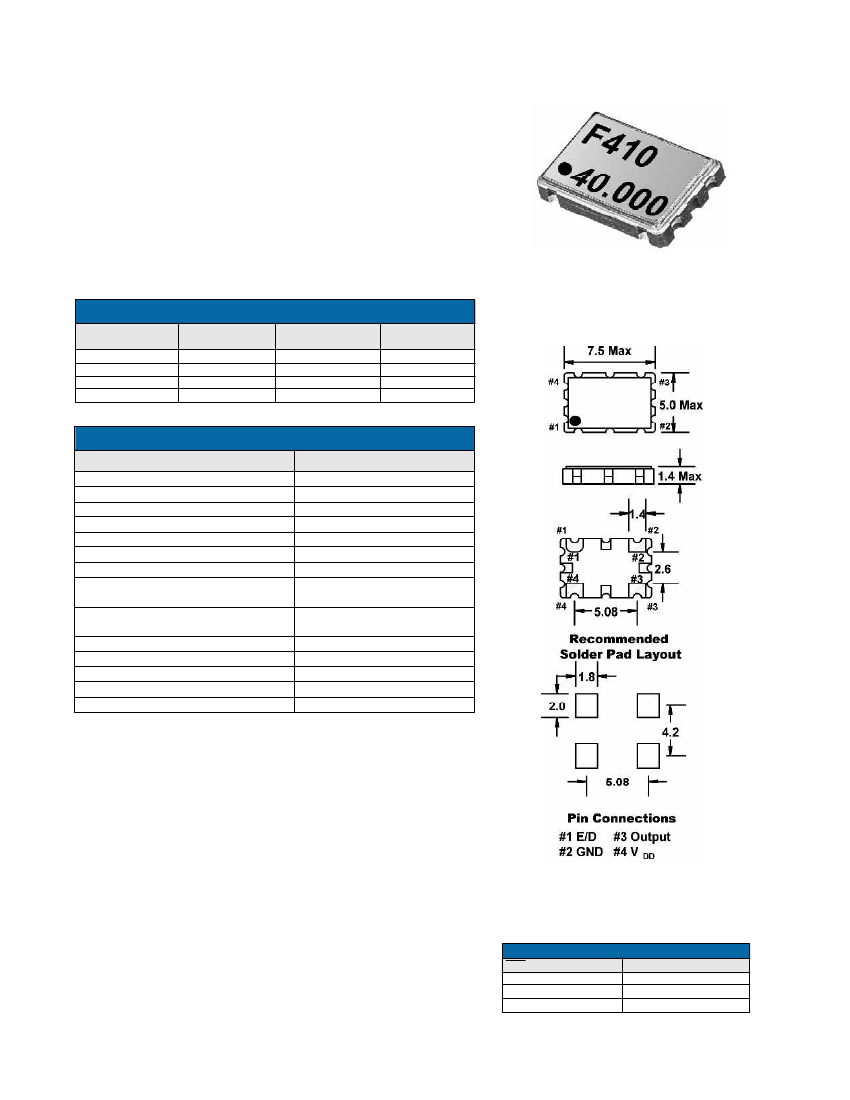

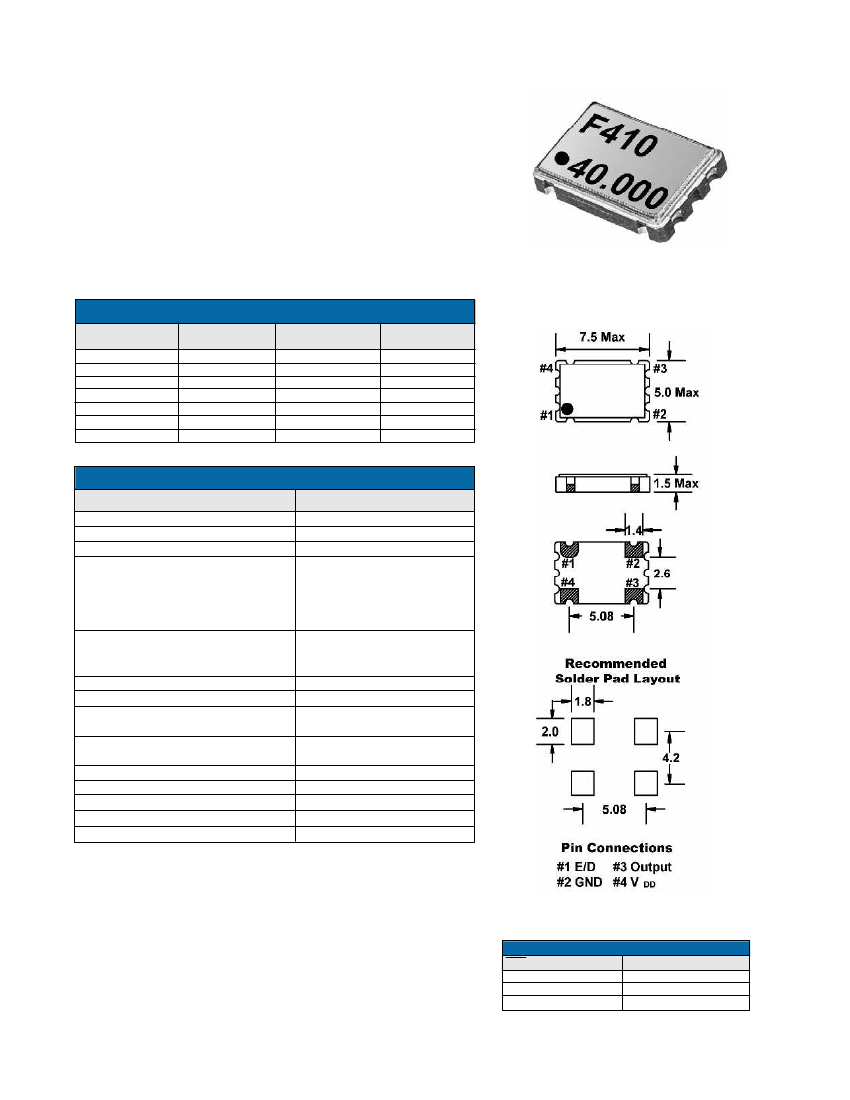

3.3V HCMOS SMD OSCILLATOR WITH STANDBY

F4100 SERIES

FEATURES

•

3.3V Operation

HCMOS Output

Standby Function

Tape and Reel

(2,000 pcs. STD)

Pb Free

OPTIONS

• 1.05mm Height Max

• MODEL NUMBER SELECTION

Model Number

F4100

F4100R

F4105

F4105R

F4106

F4106R

F4108

Frequency

Stability

1

±100PPM

±50PPM

±25PPM

±20PPM

Operating

Temperature (ºC)

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

Frequency

Range (MHz)

1.000 ~ 170.000

1.000 ~ 125.000

1.000 ~ 100.000

1.000 ~ 80.000

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

O

)

Storage Temperature Range (T

STG

)

Supply Voltage

(V

DD

)

Input Current

(I

DD

)

1.000 ~ 32.000 MHz

32.000+ ~ 50.000 MHz

50.000+ ~ 67.000 MHz

67.000+ ~ 170.000 MHz

Output Symmetry (50% V )

DD

1.000 ~ 50.000 MHz

50.000+ ~ 170.000 MHz

Rise Time (10% ~ 90% V

DD

) (T

R

)

Fall Time (90% ~ 10% V

DD

) (T

F

)

Output Voltage

(V

OL

)

(V

OH

)

Output Current

(I

OL

)

(I

OH

)

Output Load

(HCMOS)

Standby Current (V

IL

≤

0.99V)

Start-up Time

(T

S

)

Output Disable Time

2

Output Enable Time

2

1

MAX

(unless otherwise noted)

1.000 ~ 170.000 MHz

-55ºC ~ +125ºC

3.3V ± 10%

15mA

20mA

25mA

40mA

45% ~ 55%

40% ~ 60%

6nS

10% V

DD

90% V

DD

Min

2mA Min

-2mA Min

15pF

10µA

10mS

150nS

10mS

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

2

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

See

page 30

for mechanical specifications, test circuits, and output waveform.

Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to

minimize power supply line noise.

All specifications subject to change without notice.

Rev. 02/10/03

All dimensions are in millimeters.

• ENABLE / DISABLE FUNCTION

INH (Pin 1)

OUTPUT (Pin 3)

OPEN

2

ACTIVE

'1' Level V

IH

≥

70% V

DD

ACTIVE

'0' Level V

IL

≤

30% V

DD

High Z

See

page 60

for tape and reel specifications.

48

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554

http://www.foxonline.com
