2SB1197KT146/PQ datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB1197KT146/PQ

2SB1197KT146/PQ: Description800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size97KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SB1197KT146/PQ Overview

800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR

2SB1197KT146/PQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli
Maximum collector current (IC)	0.8 A
Collector-based maximum capacity	30 pF
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

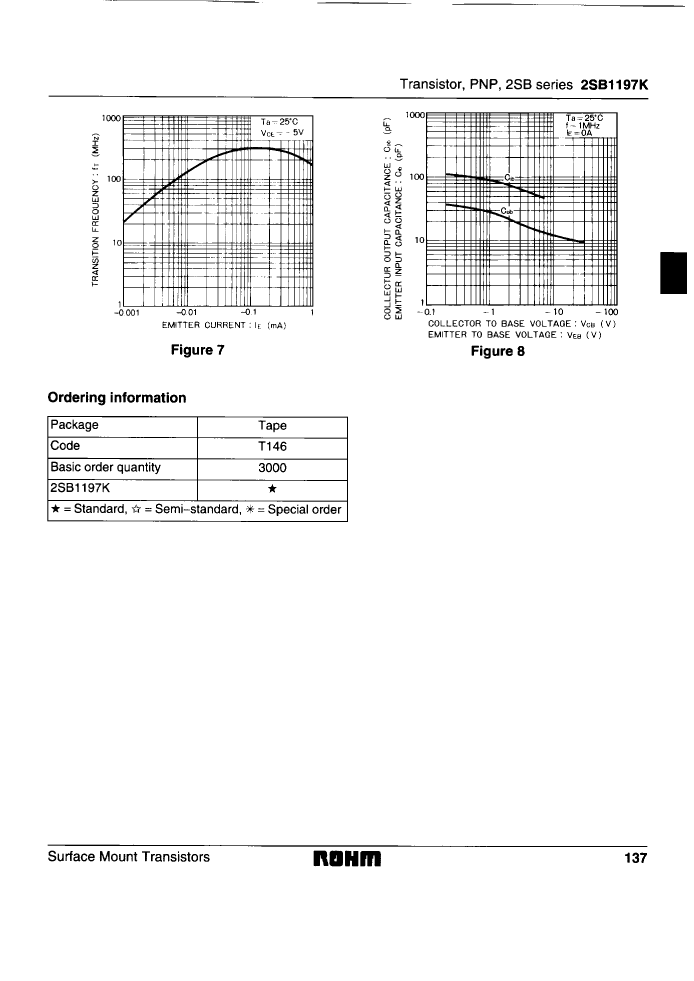

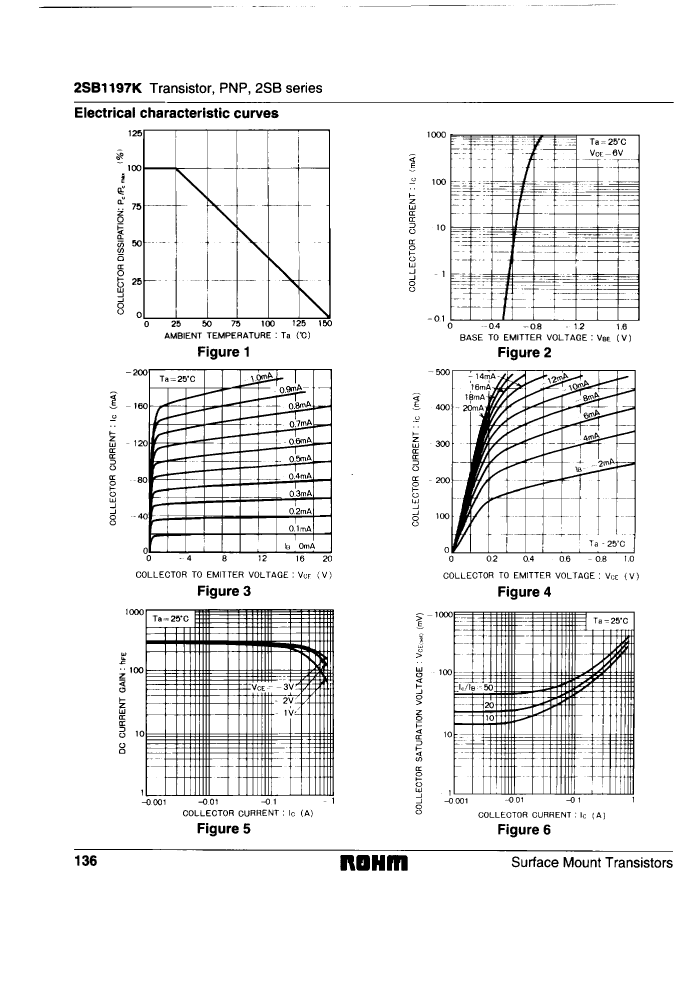

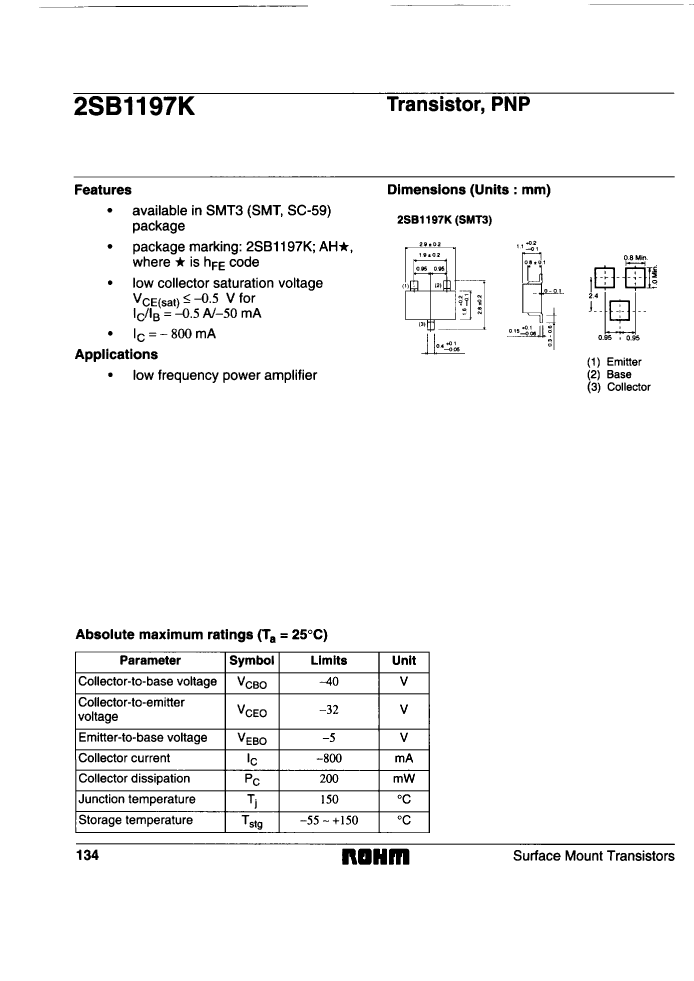

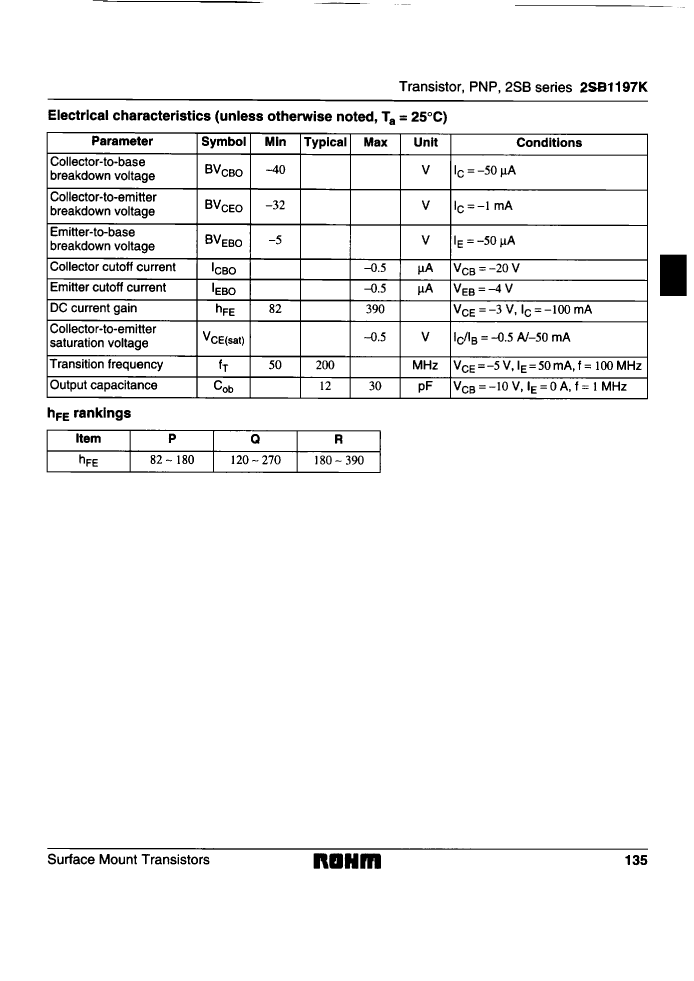

Preview

Download Datasheet

View All

2SB1197KT146/PQ Related Products

	2SB1197KT146/PQ	2SB1197KT146/QR	2SB1197KT146QR	2SB1197KT146/P	2SB1197KT146P	2SB1197KT146/PR	2SB1197KT146PR	2SB1197KT146PQ
Description	800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR	800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon,	800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon,	800mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli
Maximum collector current (IC)	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A
Collector-emitter maximum voltage	32 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	120	120	82	82	82	82	82
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10
transistor applications	SWITCHING	SWITCHING	AMPLIFIER	SWITCHING	AMPLIFIER	SWITCHING	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Base Number Matches	1	1	1	1	1	1	1	1
package instruction	SMALL OUTLINE, R-PDSO-G3	-	SMALL OUTLINE, R-PDSO-G3	-	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
