ACVX1220-FREQ-L-R-N15-Q40 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ACVX1220-FREQ-L-R-N15-Q40

ACVX1220-FREQ-L-R-N15-Q40: DescriptionCMOS/TTL Output Clock Oscillator, 1MHz Min, 160MHz Max, ROHS COMPLIANT, HERMETIC SEALED, DIP-14/4; CategoryPassive components oscillator; File Size511KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ACVX1220-FREQ-L-R-N15-Q40 Overview

CMOS/TTL Output Clock Oscillator, 1MHz Min, 160MHz Max, ROHS COMPLIANT, HERMETIC SEALED, DIP-14/4

ACVX1220-FREQ-L-R-N15-Q40 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	25%
linearity	10%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	5 TTL, 15 pF
physical size	20.2mm x 12.6mm x 8.0mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

TTL/CMOS FULL-SIZE DIP VOLTAGE

CONTROLLED CRYSTAL OSCILLATOR

ACVX1220

RoHS

Compliant

APPLICATIONS:

• Phase locked loops (PLLs)

• Clock recovery

• Synthesizers

• Reference signal tracking

| | | | | | | | | | | | | | |

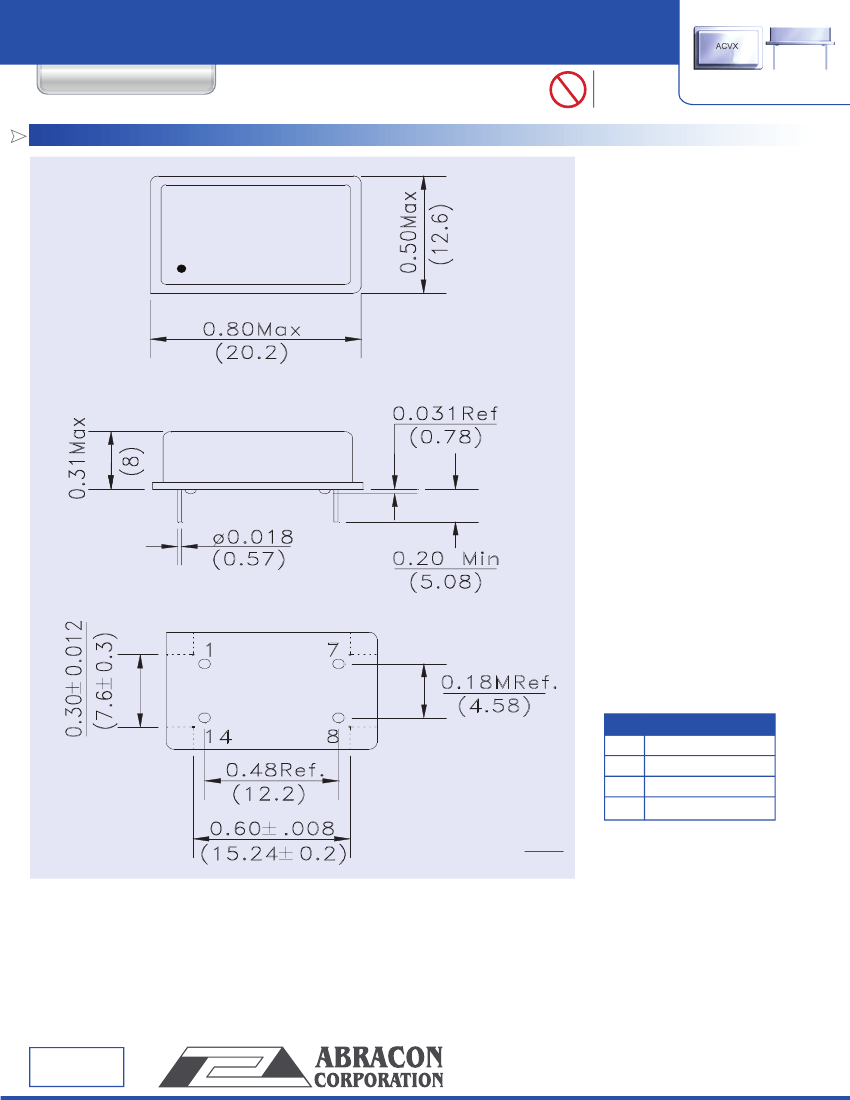

20.2 x 12.6 x 8.0mm

FEATURES:

• Large frequency pulling available

• Hermetically sealed

• Tight Symmetry Available

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Freq. Stability vs. Temperature

Freq. Stability vs. Aging

Freq. Stability vs. Supply Volt.

Supply Voltage (Vdd)

Supply Current (Idd)

Symmetry

Rise & Fall Time (Tr/Tf)

Output Load

Output Voltage

Transfer Function

Control Voltage (Vc)

Center Voltage

Frequency Deviation

Linearity

Start-up Time

(Left blank if standard)

Frequency

XXX.XXXMHz

Operating Temp.

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

ACVX1220 Series

1.0MHz to 160.0MHz

0°C to + 70°C (see options)

-40°C to + 85°C

± 100ppm max. (see options)

± 5ppm/yr max.

± 5ppm max.

5.0 Vdc ±5%

See Table 1

40/60% max. @ 1/2 Vdd (see option)

10ns max.

TTL/CMOS (15pF or 5TTL gate)

VOH=0.9*Vdd min. ; VOL=0.4*Vdd max.

Positive

0.5Vdc to 4.5Vdc

2.5 VDC

±0.5V

± 100ppm min. (see options)

± 10% max.

10ms. max.

Table 1

<=24

<=45

<=70

<=160

Freq

MHz

Idd max.

OPTIONS & PART IDENTIFICATION:

ACVX1220 - Frequency -

Frequency Stability

±10ppm

±20ppm

±25ppm

±30ppm

±35ppm

±50ppm

N05

N15

N20

N25

N30

Symmetry

45/55%@0.5Vdd

45/55%@1.4Vdd

Trimed Lead

Gull Wing

0.45(11.43)

Q45

0.40(10.16)

Q40

0.35(8.89)

Q35

0.30(7.62)

Q30

0.25(6.35)

Q25

0.20(5.08)

Q20

0.15(3.81)

Q15

0.10(2.54)

Q10

Pulling

± 50ppm

± 150ppm

± 200ppm

± 250ppm

± 300ppm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 12.03.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
