2SD2144STP

Description
Small Signal Bipolar Transistor, 0.5A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon
CategoryDiscrete semiconductor    The transistor
File Size145KB,5 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

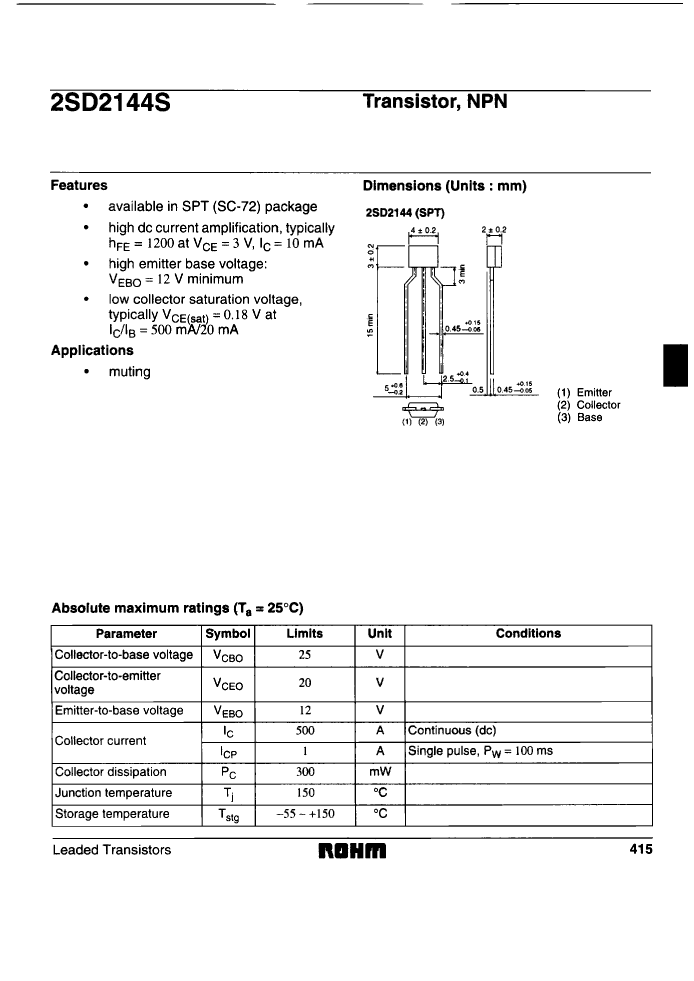

2SD2144STP Overview

Small Signal Bipolar Transistor, 0.5A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon

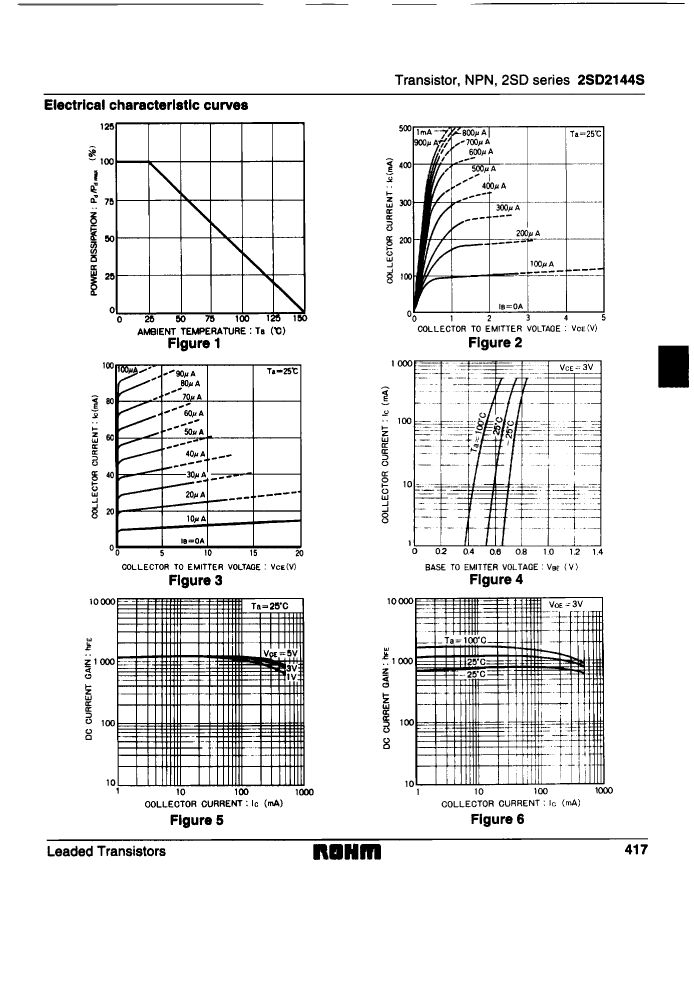

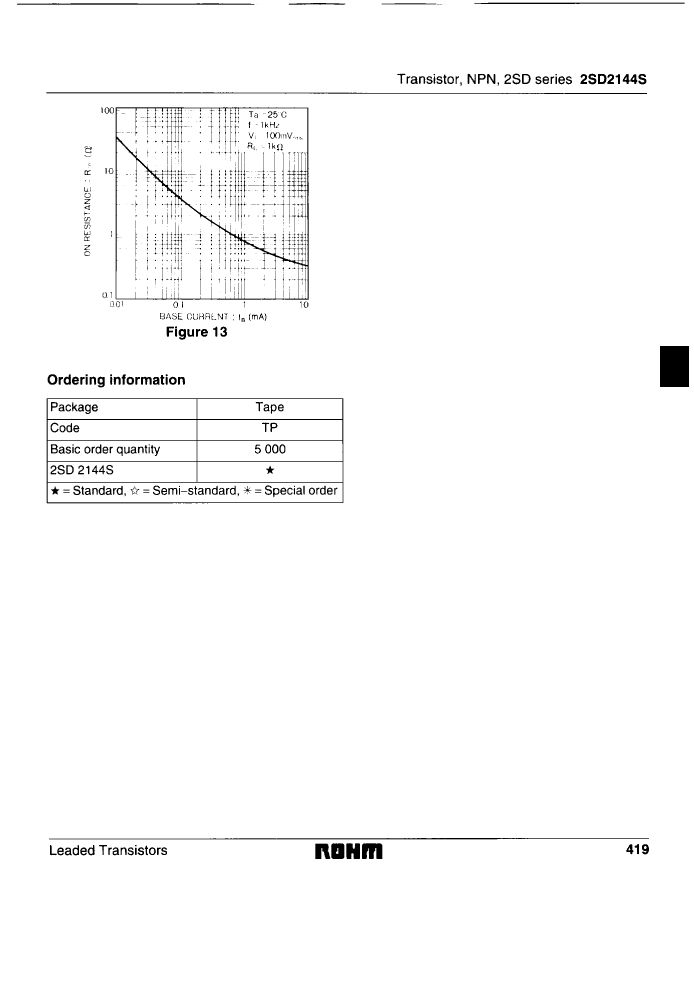

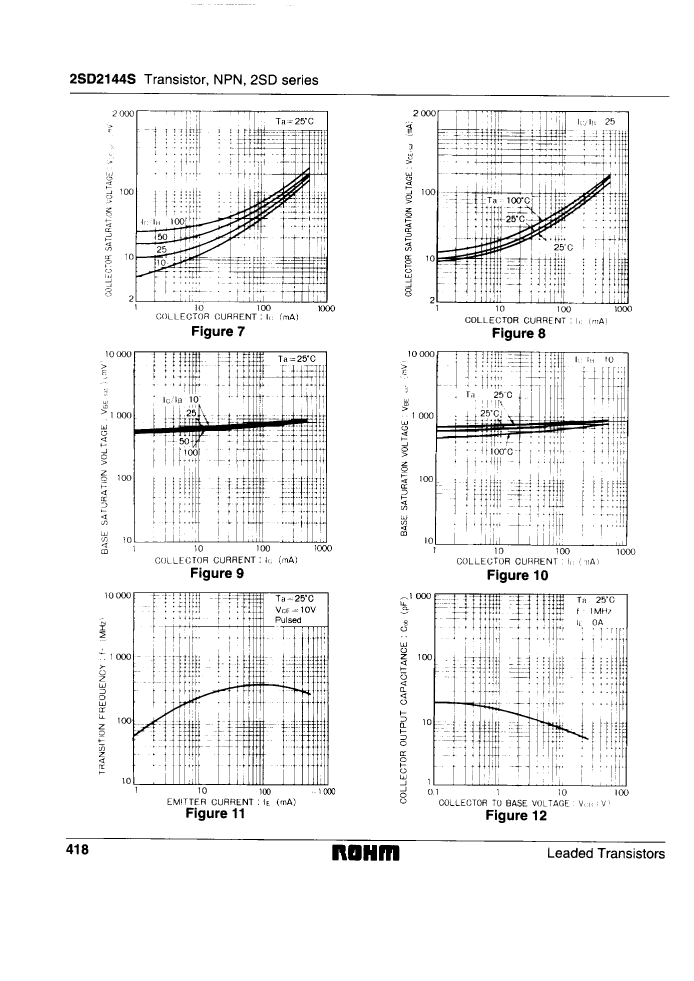

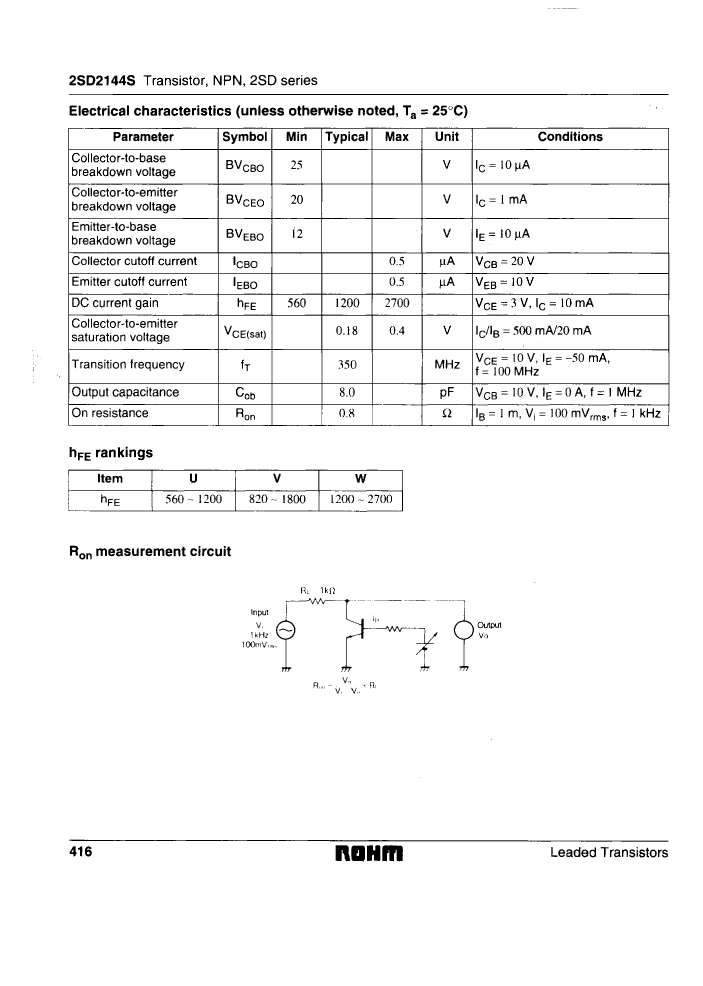

2SD2144STP Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionIN-LINE, R-PSIP-T3
Reach Compliance Codecompli
ECCN codeEAR99
Maximum collector current (IC)0.5 A
Collector-emitter maximum voltage20 V
ConfigurationSINGLE
Minimum DC current gain (hFE)560
JESD-30 codeR-PSIP-T3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)350 MHz
Base Number Matches1
