TCR2508S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TCR2508S

TCR2508S: DescriptionRectifier Diode, 1 Phase, 1 Element, 25A, 800V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerTak Cheong; Websitehttp://www.takcheong.com/

Download Datasheet Parametric Compare View All

TCR2508S Overview

Rectifier Diode, 1 Phase, 1 Element, 25A, 800V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN

TCR2508S Parametric

Parameter Name	Attribute value
Maker	Tak Cheong
package instruction	PLASTIC, BUTTON, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PEDB-N2
Maximum non-repetitive peak forward current	400 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	25 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END

Preview

Download Datasheet

View All

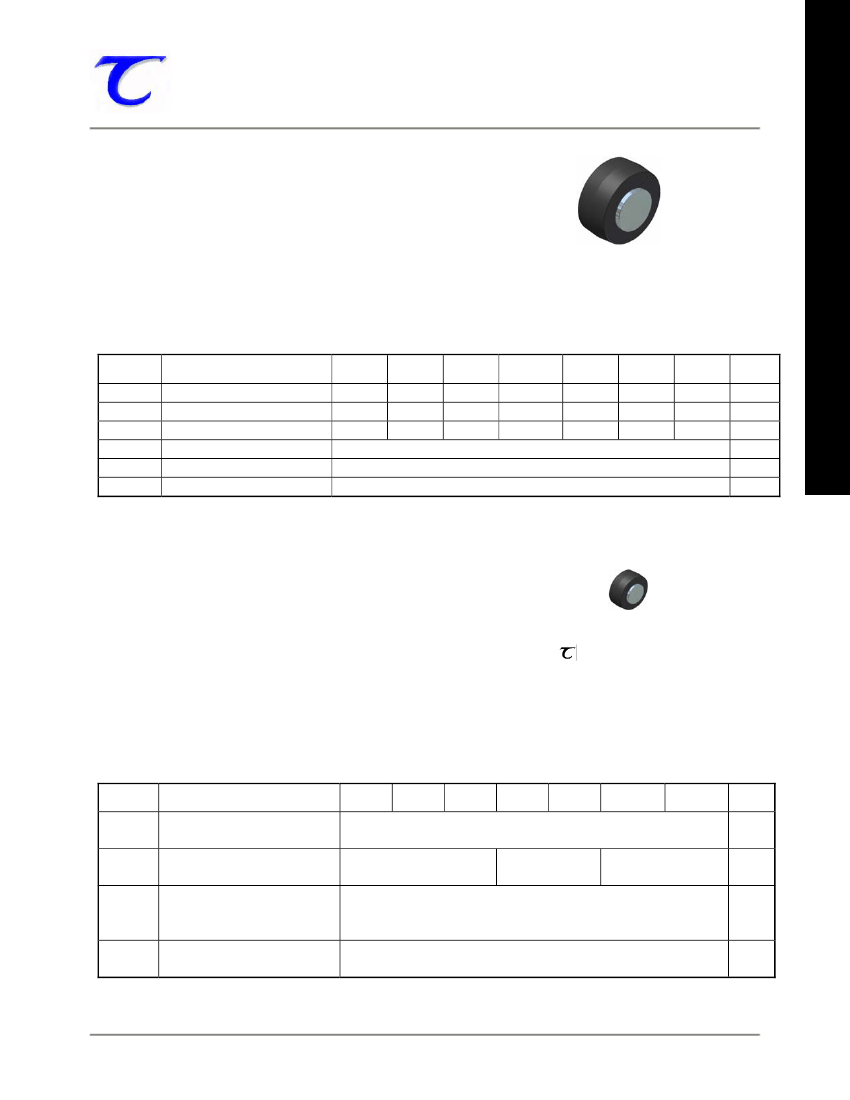

PRELIMINARY

TCR25XXS SERIES

BUTTON RECTIFIER

Absolute Maximum Ratings

= 25°C unless otherwise noted

Single phase half sine-wave 60 Hz, resistive or inductive load.

For capacitive load derate current by 20%.

SYMBOL

RRM

RMS

stg

PARAMETER

Peak Repetitive Reverse Voltage

RMS Voltage

DC Blocking Voltage

Operating Junction Temperature

Storage Temperature

TCR

2500S

TCR

2501S

100

TCR

2502S

200

140

200

TCR

2504S

400

280

400

175

-65°C to 175

TCR

2506S

600

420

600

TCR

2508S

800

560

800

TCR

2510S

1000

700

1000

UNIT

°C

Features:

Compact and molded package for small case configuration

High current surge capability

Low cost

Marking Diagram

Mechanical Characteristics:

Case: Epoxy molded

Polarity: Cathode polarity band

25XXS

: Logo

: Device Code

Note: Marking stamp on side location

Electrical Characteristics

SYMBOL

F(A)

PARAMETER

= 25°C unless otherwise noted

TCR

2500S

TCR

2501S

TCR

2502S

TCR

2504S

TCR

2506S

TCR

2508S

TCR

2510S

UNIT

Maximum Average Forward Rectifier

Current T

=25°C

Maximum Instantaneous Forward

Voltage at Rated Current

Peak Forward Surge Current 8.3ms

0.98

1.00

1.05

FSM

Single Half Sine-Wave Superimposed

on Rated Current

400

Maximum Reverse Leakage Current at

Rated DC Blocking Voltage at 25°C

2.0

November 2005 / Rev. A

Page 1

TCR2500S through TCR2510S

TAK CHEONG

TCR2508S Related Products

	TCR2508S	TCR2501S	TCR2506S	TCR2502S	TCR2504S
Description	Rectifier Diode, 1 Phase, 1 Element, 25A, 800V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 25A, 100V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 25A, 600V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 25A, 200V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 25A, 400V V(RRM), Silicon, PLASTIC, BUTTON, 2 PIN
package instruction	PLASTIC, BUTTON, 2 PIN	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	PLASTIC, BUTTON, 2 PIN
Contacts	2	2	2	2	2
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	100 V	600 V	200 V	400 V
surface mount	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END
Base Number Matches	-	1	1	1	-
