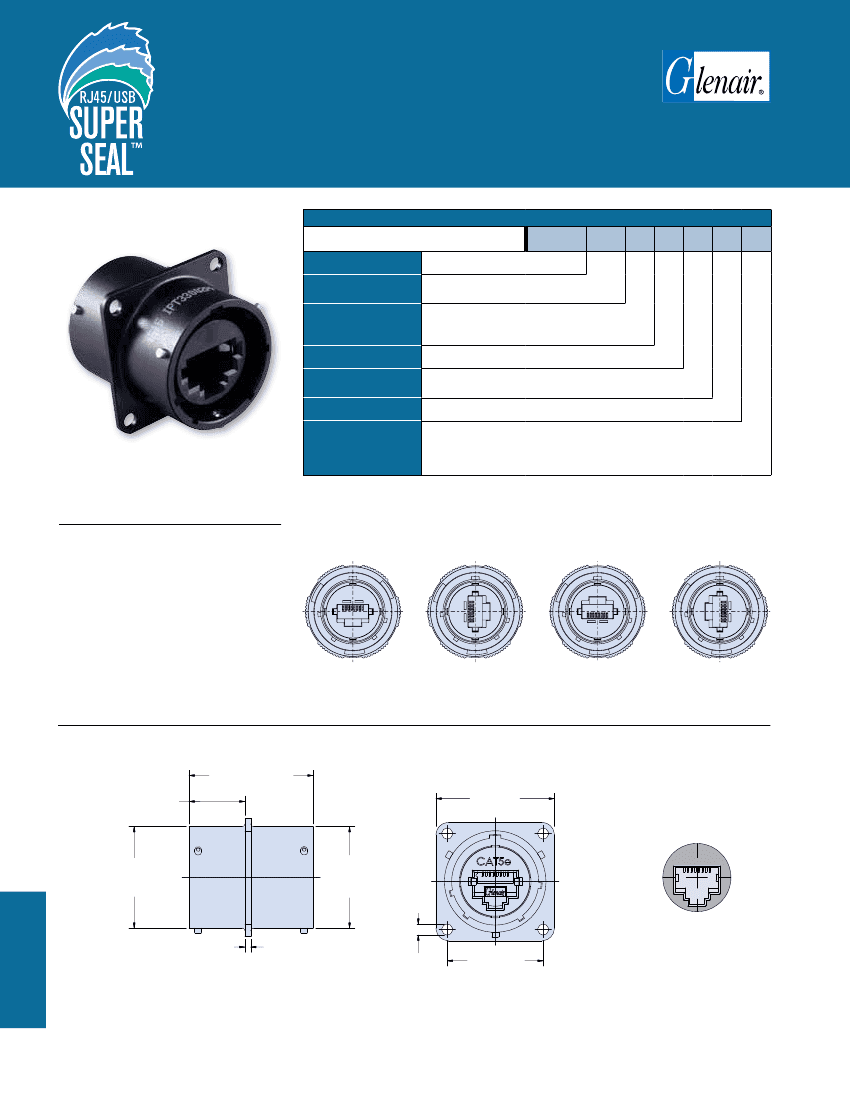

RJ45 CAT 5E ETHERNET
Series IPT (26482 Type) Bayonet Coupler
IPT330 Feedthrough Receptacle with Jack-to-Jack RJ45
How to Order
Sample Part Number
Basic Number
Connector Style
1
Insert-to-Shell
Grounding
Shell Size
RJ45 Category
2
RJ45 Orientation
Material/Finish
IPT330
IPT330
02PP
G
18
5E
1
F7
02PP
= Front Panel Mount Square Flange
receptacle
G
= Insert grounded to shell; Omit for none
(for use with shielded cable)
(Use only with G3, F11 or F7 finish)
18
5E
= Cat 5E
For Cat 6A applications consult factory
1,2,3
or
4
Omit
for Aluminum/Cadmium, Olive Drab (G3)
F6
= Aluminum/Black Polymer Electrocoat
F7
= Aluminum/Conductive Black Zinc Nickel
F11
= Aluminum/Electroless Nickel
NOTES
1. See Section A for recommended panel
cut out dimensions
2. Feedthrough is jack/jack layout
RJ45 Orientation Options (Plug Shown)
Code 1
Code2
Code 3
Code 4
02 - FRONT PANEL SQUARE FLANGE MOUNT RECEPTACLE
1.374 (34.89) Max
.618(15.7) +.004(+.1)
-.0(-.0)
1.311±.004
(33.3 ±.1)
+.0
Ø1.125 -.004
+.0
Ø1.125 -.004
+.00
(28.57) -.10
Rear Connector View
with RJ45 Jack
.122±.005
(3.1 ±.12)
1.063±.004
(27.0 ±.1)
+.00
(28.57) -.10
F
F-8
.063±.004
(1.6±.1)
