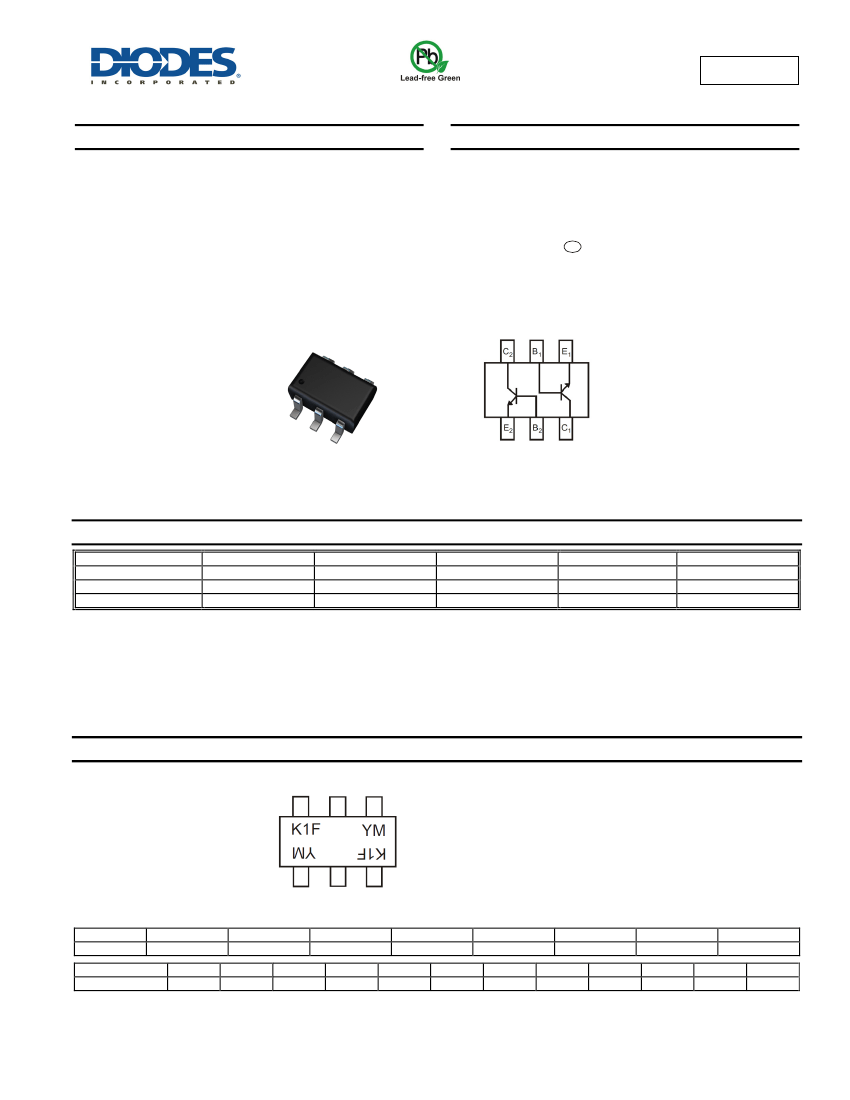

BC847BS

DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features



Ultra-Small Surface Mount Package

Ideally Suited for Automated Insertion

For switching and AF Amplifier Application

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT363

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish



Matte Tin Finish. Solderable per MIL-STD-

202, Method 208

Weight: 0.006 grams (approximate)

SOT363

Top View

Device Schematic

Top View

Ordering Information

(Notes 4 & 5)

Part Number

BC847BS-7-F

BC847BSQ-7-F

BC847BS-13-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Marking

K1F

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified.

5. For packaging details, go to our website at http://www.diodes.com.

Marking Information

K1F = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: Y = 2011)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2010

Jan

2011

Feb

Mar

2012

Apr

May

2013

Jun

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

BC847BS

Document number: DS30222 Rev. 13 - 2

1 of 5

www.diodes.com

February 2013
