SDC-630-A-L-3-V datasheet, PDF

SDC-630-A-L-3-V: DescriptionSynchro or Resolver to Digital Converter, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27; CategoryAnalog mixed-signal IC converter; File Size179KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

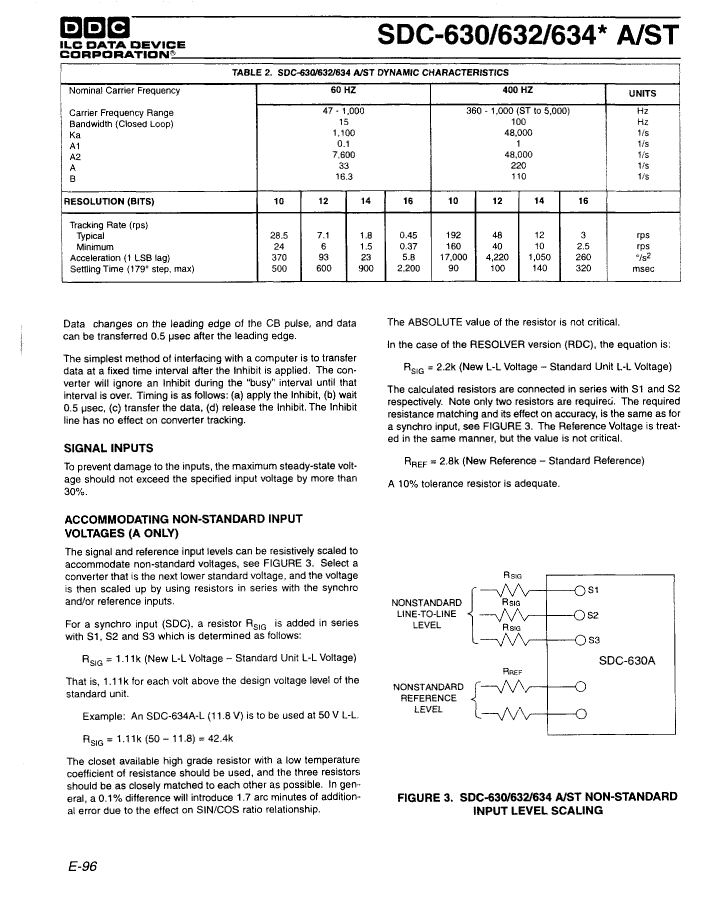

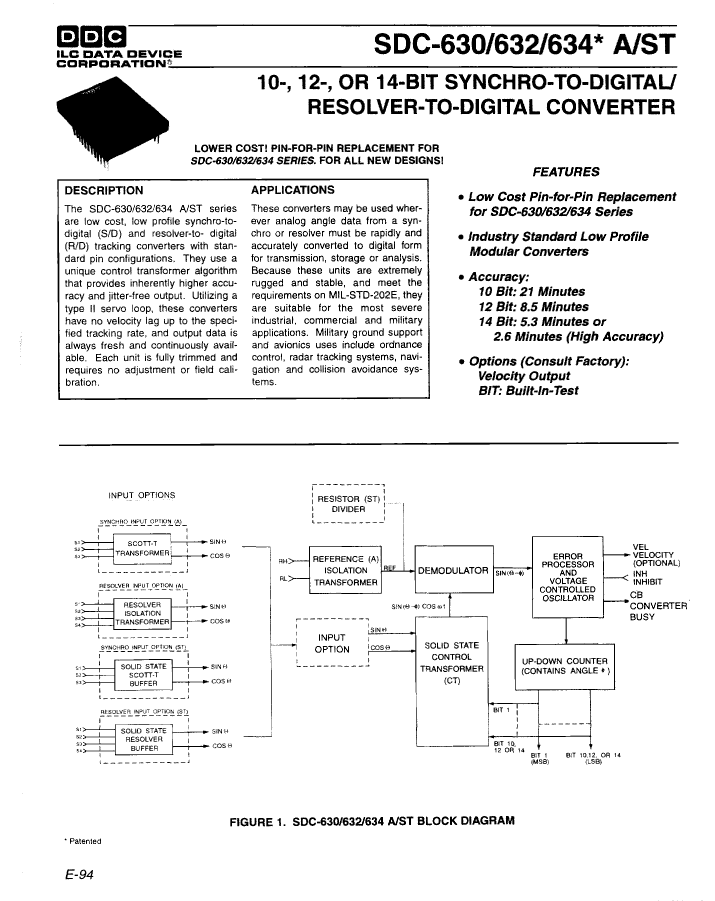

SDC-630-A-L-3-V Overview

Synchro or Resolver to Digital Converter, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27

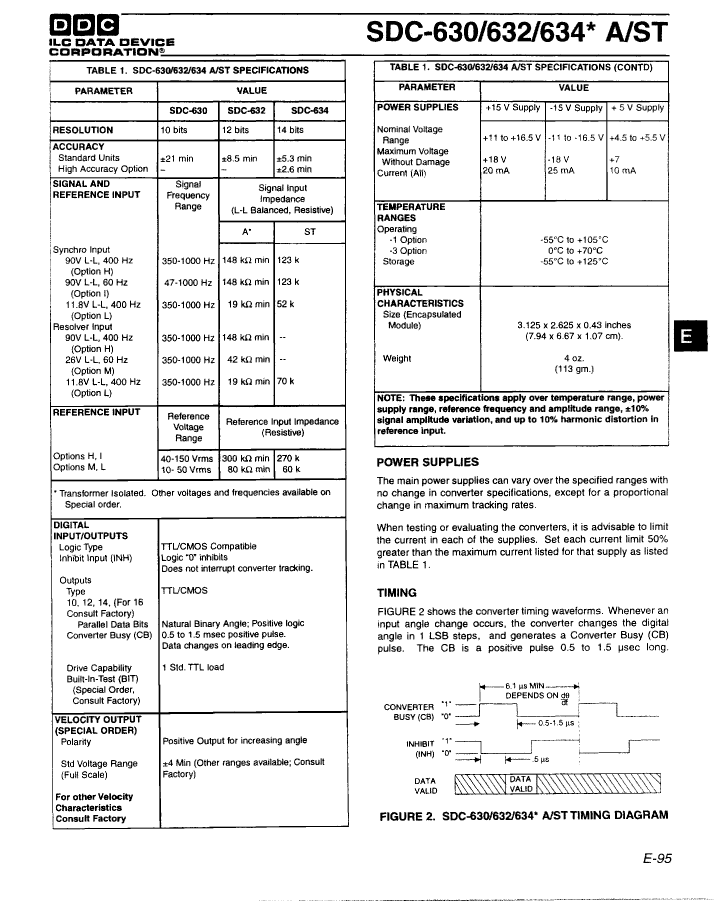

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27
Contacts	27
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUILT-IN-TEST, ALSO REQUIRE 5V SUPPLY
Maximum analog input voltage	11.8 V
Maximum angular accuracy	21 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XDIP-P27
JESD-609 code	e0

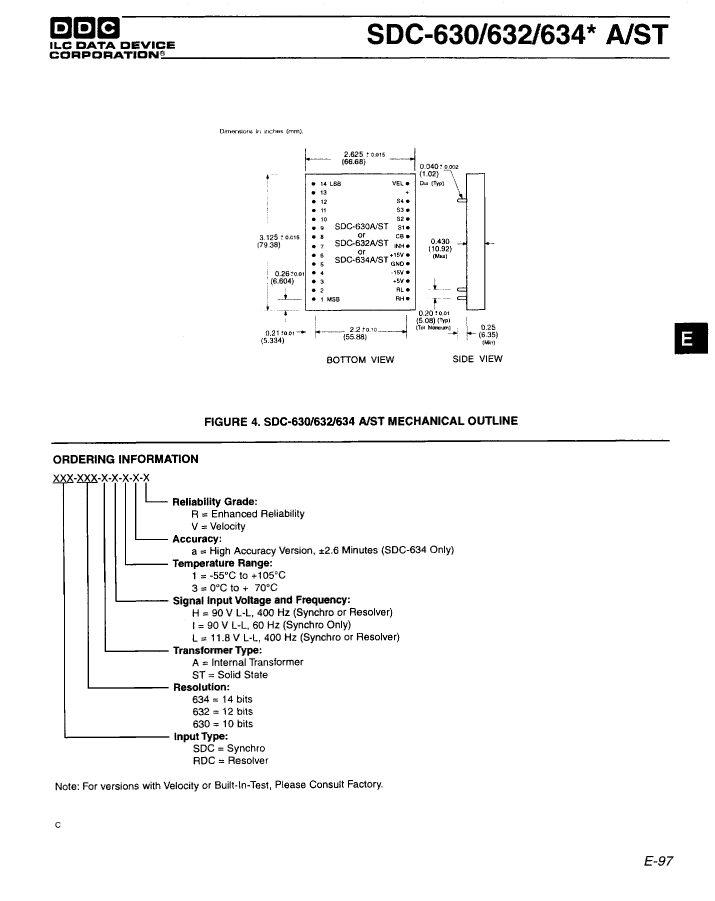

length	79.375 mm
Maximum negative supply voltage	-16.5 V
Minimum negative supply voltage	-11 V
Nominal negative supply voltage	-15 V
Number of digits	10
Number of functions	1
Number of terminals	27
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	10.92 mm
Signal/output frequency	400 Hz
Maximum supply voltage	16.5 V
Minimum supply voltage	11 V
Nominal supply voltage	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	55.88 mm
