OP16BZ/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> OP16BZ/883

OP16BZ/883: DescriptionOperational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

OP16BZ/883 Overview

Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8

OP16BZ/883 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	HERMETIC SEALED, CERAMIC, DIP-8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.018 µA
Nominal Common Mode Rejection Ratio	97 dB
Maximum input offset voltage	2000 µV
JESD-30 code	R-CDIP-T8
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Filter level	MIL-STD-883
Nominal slew rate	21 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	7600 kHz

Preview

Download Datasheet

View All

REI Datasheet

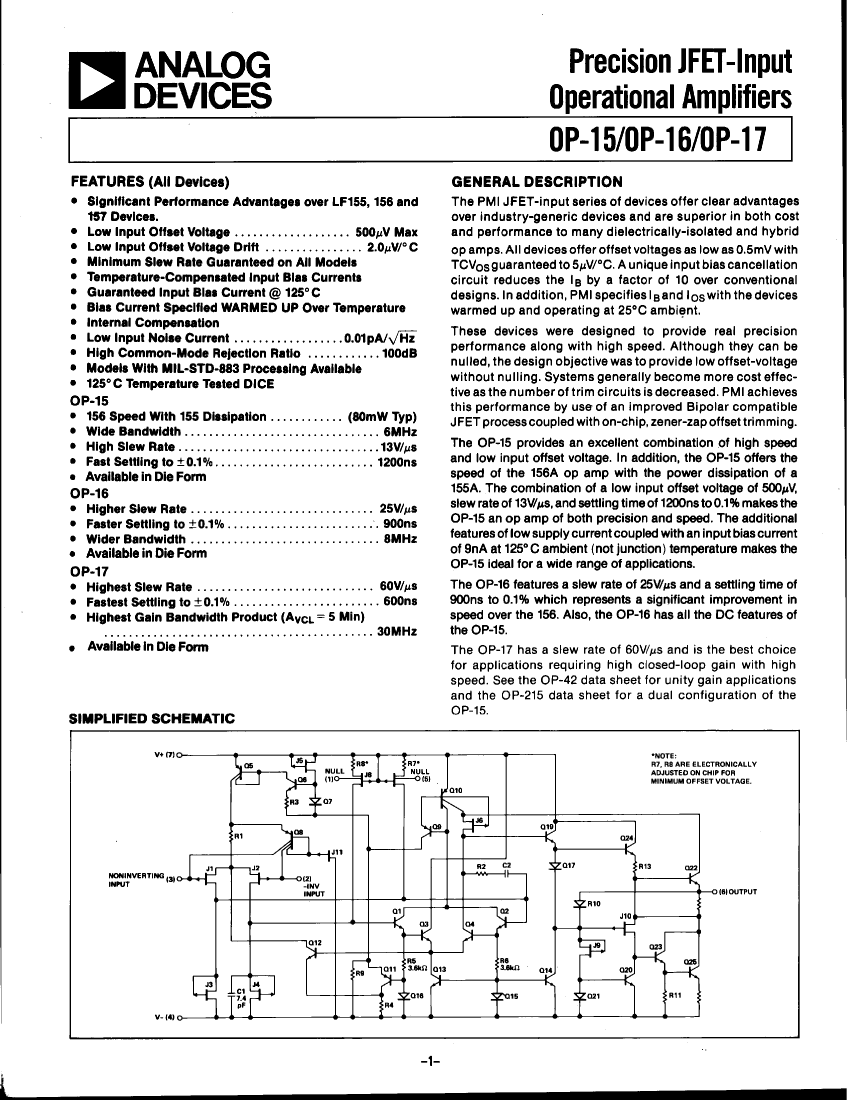

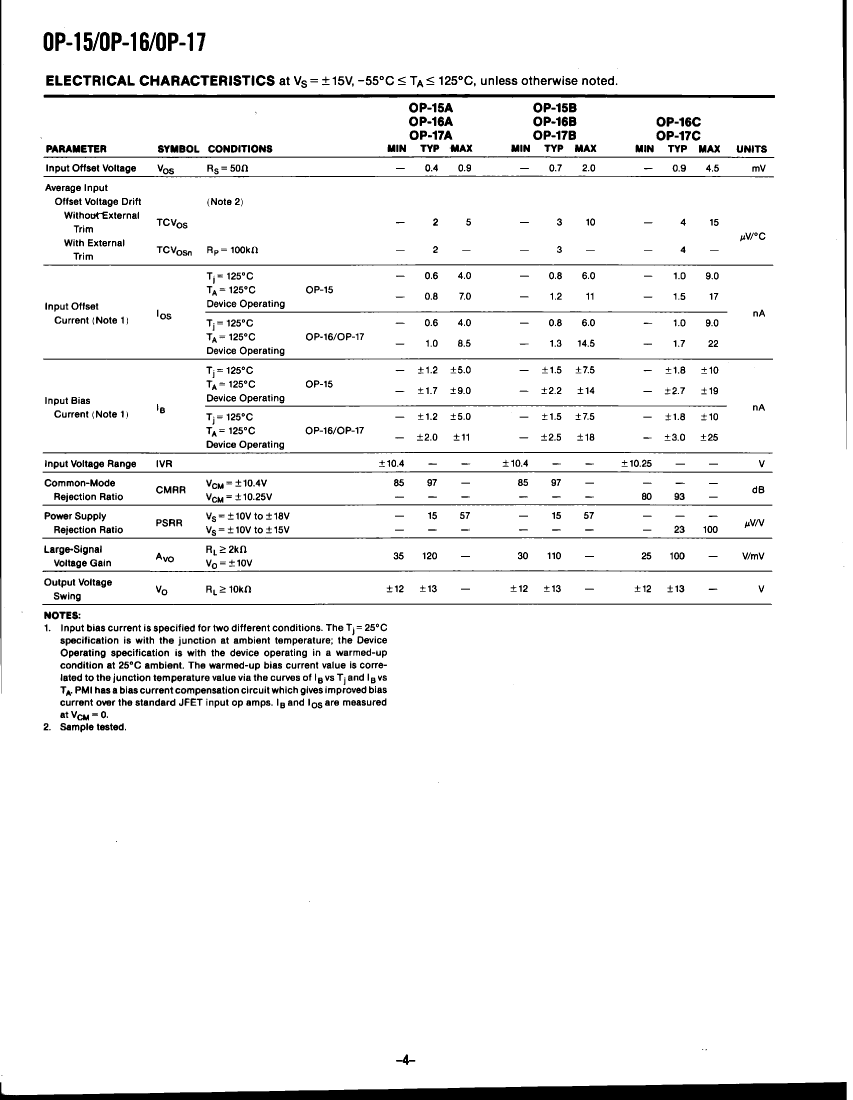

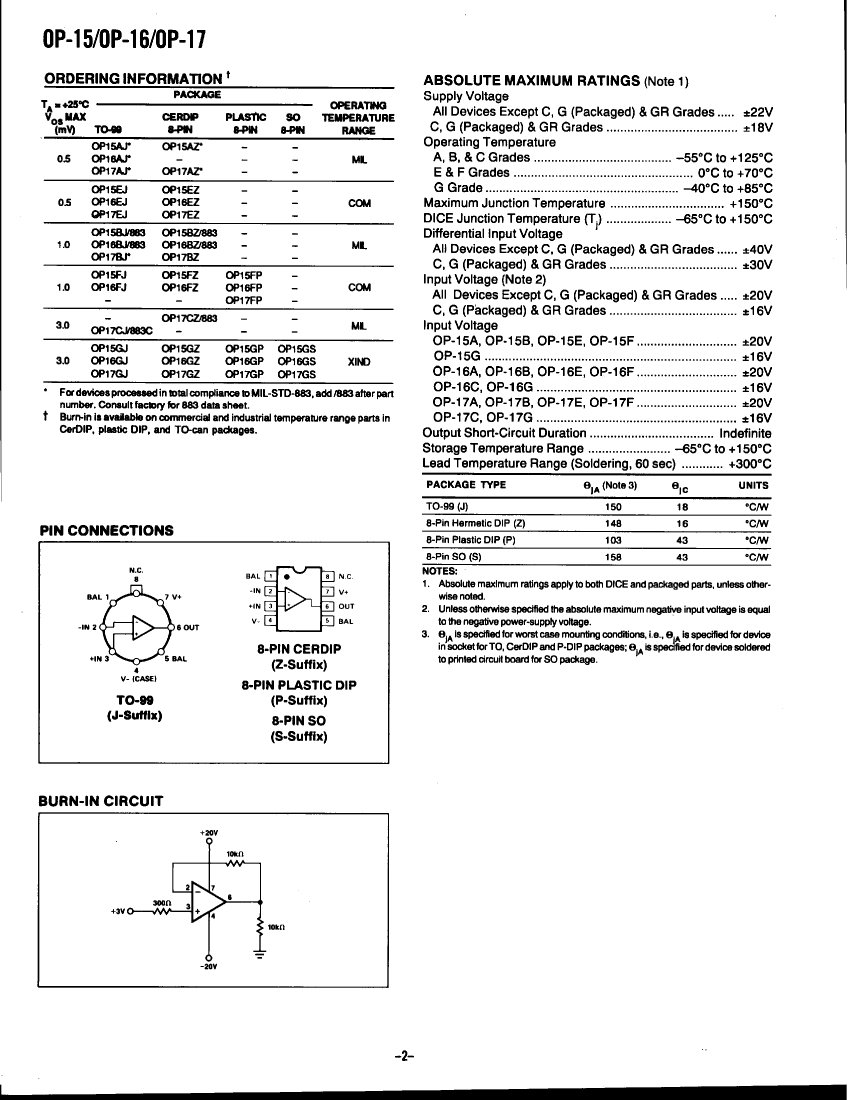

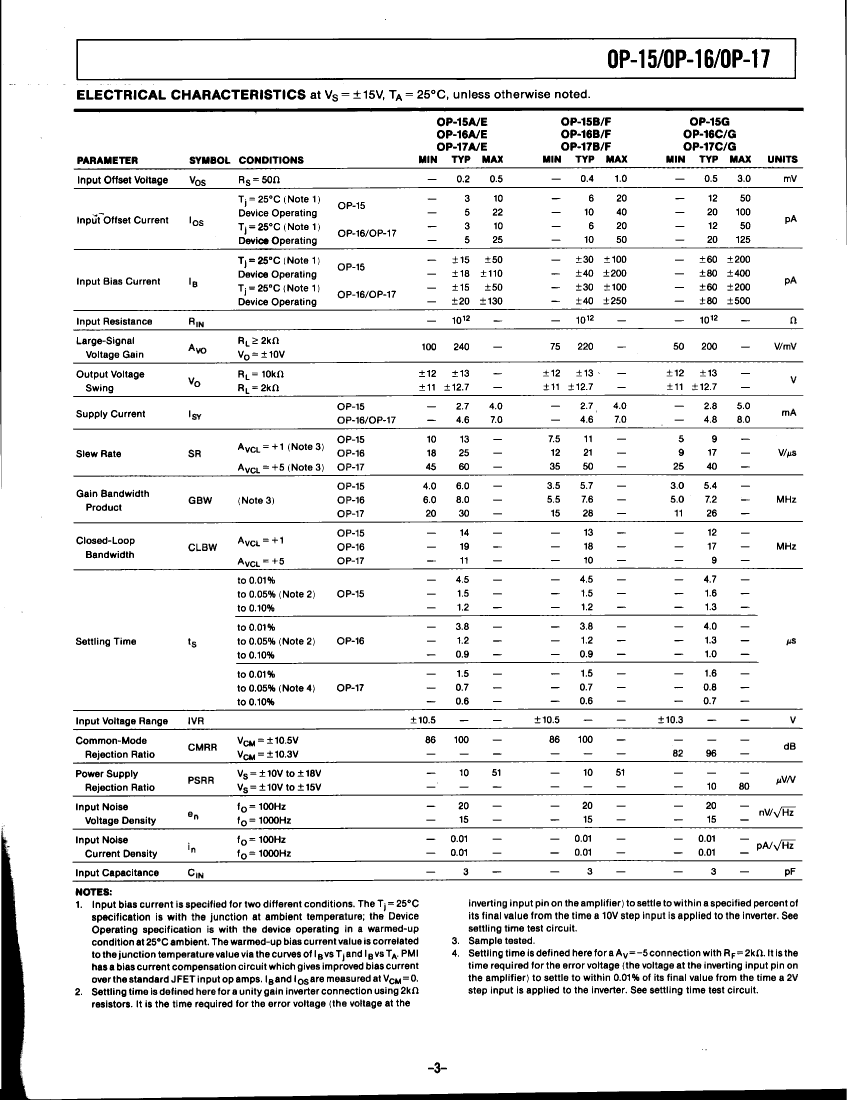

OP-15, OP-16, OP-17

Precision JFET-Input Operational Amplifiers

The PMI JFET-input series of devices offer clear advantages over industry-generic devices and

are superior in both cost and performance to many dielectrically-isolated and hybrid op amps. All

devices offer offset voltages as low as 0.5mV with TCV

guaranteed to 5µV/C. A unique input

bias cancellation circuit reduces the I

by a factor of 10 over conventional designs. In addition, PMI

specifies I

and I

with the devices warmed up and operating at 25°C ambient.

These devices were designed to provide real precision performance along with high speed. Although

they can be nulled, the design objective was to provide low offset-voltage without nulling. Systems

generally become more cost effective as the number of trim circuits is decreased. PMI achieves this

performance by use of an improved Bipolar compatible JFET process coupled with on-chip, zener-

zap offset trimming.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

OP16BZ/883 Related Products

	OP16BZ/883	OP17AZ	OP17CZ/883	OP17CJ/883C	OP15BJ/883	OP16GP	OP15FP	OP17AJ	OP17FP
Description	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 900uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, TO-99, 8 PIN	Operational Amplifier, 1 Func, 2000uV Offset-Max, BIPolar, TO-99, 8 PIN	Operational Amplifier, 1 Func, 3800uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 1 Func, 900uV Offset-Max, BIPolar, TO-99, 8 PIN	Operational Amplifier, 1 Func, 1500uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8
package instruction	HERMETIC SEALED, CERAMIC, DIP-8	HERMETIC SEALED, CERAMIC, DIP-8	HERMETIC SEALED, CERAMIC, DIP-8	TO-99, 8 PIN	TO-99, 8 PIN	PLASTIC, DIP-8	PLASTIC, DIP-8	TO-99, 8 PIN	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.018 µA	0.011 µA	0.025 µA	0.025 µA	0.014 µA	0.002 µA	0.0011 µA	0.011 µA	0.0014 µA
Nominal Common Mode Rejection Ratio	97 dB	97 dB	93 dB	93 dB	97 dB	94 dB	98 dB	97 dB	98 dB
Maximum input offset voltage	2000 µV	900 µV	4500 µV	4500 µV	2000 µV	3800 µV	1500 µV	900 µV	1500 µV
JESD-30 code	R-CDIP-T8	R-CDIP-T8	R-CDIP-T8	O-XBCY-W8	O-XBCY-W8	R-PDIP-T8	R-PDIP-T8	O-XBCY-W8	R-PDIP-T8
Negative supply voltage upper limit	-22 V	-22 V	-18 V	-18 V	-22 V	-18 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	70 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-	-55 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE
Nominal slew rate	21 V/us	60 V/us	40 V/us	40 V/us	11 V/us	17 V/us	11 V/us	60 V/us	50 V/us
Supply voltage upper limit	22 V	22 V	18 V	18 V	22 V	18 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	BOTTOM	BOTTOM	DUAL	DUAL	BOTTOM	DUAL
Nominal Uniform Gain Bandwidth	7600 kHz	30000 kHz	26000 kHz	26000 kHz	5700 kHz	7200 kHz	5700 kHz	30000 kHz	28000 kHz
Maker	Rochester Electronics	-	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
encapsulated code	DIP	DIP	DIP	-	-	DIP	DIP	-	DIP
