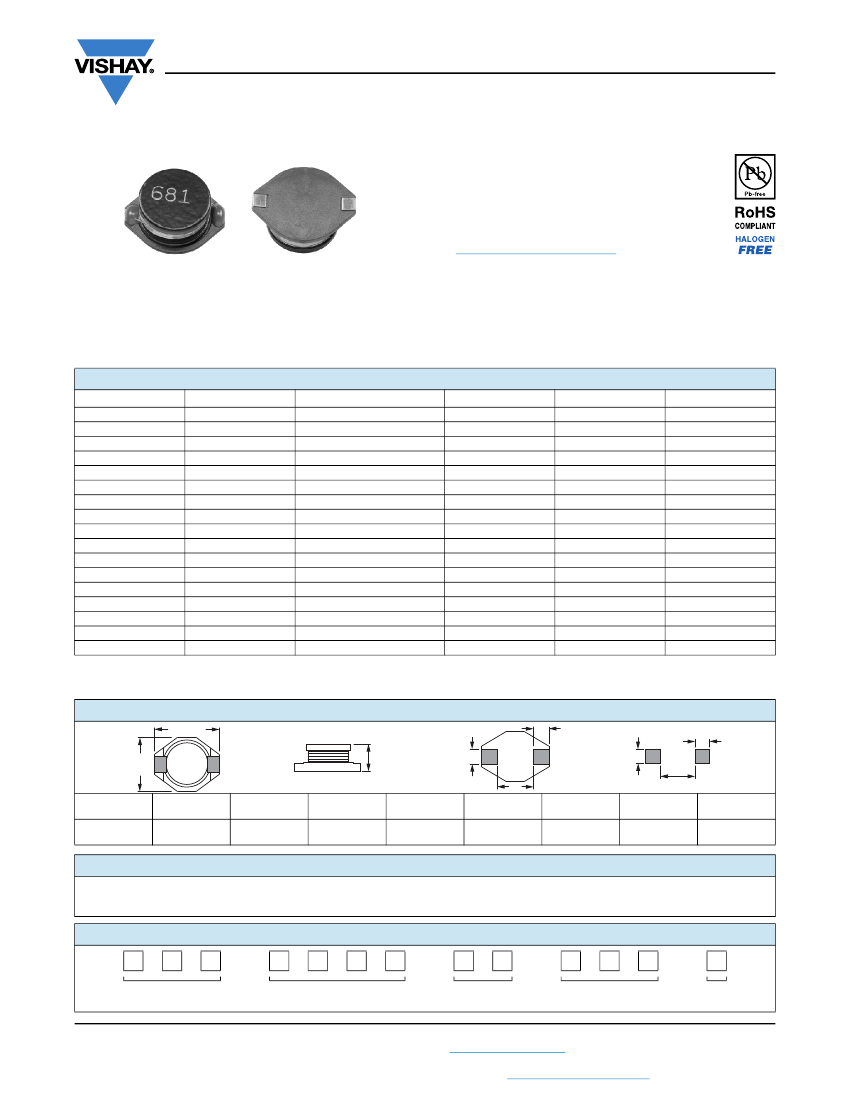

IDC-7328
www.vishay.com
Vishay Dale
High Current, Surface Mount Inductors - Non-Shielded
FEATURES
•
•
•
•
High energy storage
Low resistance
Tape and reel packaging for automatic handling
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
Inductance Range:
1.0 μH to 1000 μH, tested at 0.1 V
RMS
Inductance Tolerance:
20 %, tighter tolerance available
upon request
Operating Temperature:
-40 °C to +125 °C
Resistance to Solder Heat:
260 °C for 10 s
MECHANICAL SPECIFICATIONS
Core:
ferrite
Wire:
enamelled copper wire
Base:
LCP
Terminals:
nickel bronze
Adhesive:
epoxy resin
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE (μH)
1.0
2.2
3.3
5.6
10
15
22
33
47
68
100
150
220
330
470
680
1000
TOLERANCE
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
TEST FREQUENCY L (kHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR MAX. ()
0.009
0.014
0.018
0.020
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.1
1.8
I
SAT
(A)
20.0
16.0
14.0
12.0
10.0
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
I
RMS
(A)
8.6
7.1
6.2
5.3
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
Notes
• Inductance drop = 10 % typ. at I
SAT
•
T
= 40 °C typ. at I
RMS
DIMENSIONS
in inches [millimeters]
A Max.
B
Max.
D
Max.
E
G
F
H
J
I
A
(Max.)
0.730
[18.54]
B
(Max.)
0.600
[15.24]
D
(Max.)
0.280
[7.11]
E
0.100
[2.54]
F
0.100
[2.54]
G
0.500
[12.70]
H
0.115
[2.92]
I
0.490
[12.45]
J
0.110
[2.79]
DESCRIPTION
IDC-7328
MODEL
10 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
D
PRODUCT
FAMILY
Revision: 21-Apr-17
C
7
3
SIZE
2
8
E
R
1
0
INDUCTANCE
VALUE
0
M
TOL.
PACKAGE
CODE
Document Number: 34008
1
For technical questions, contact:
