C8D25PF29143 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> C8D25PF29143

C8D25PF29143: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

C8D25PF29143 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle

C8D25PF29143 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.365 inch
subject depth	0.55 inch
body length	2.76 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	600VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	C8D
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

Cardedge

Connectors

ESCRIPTION

PPLICATION

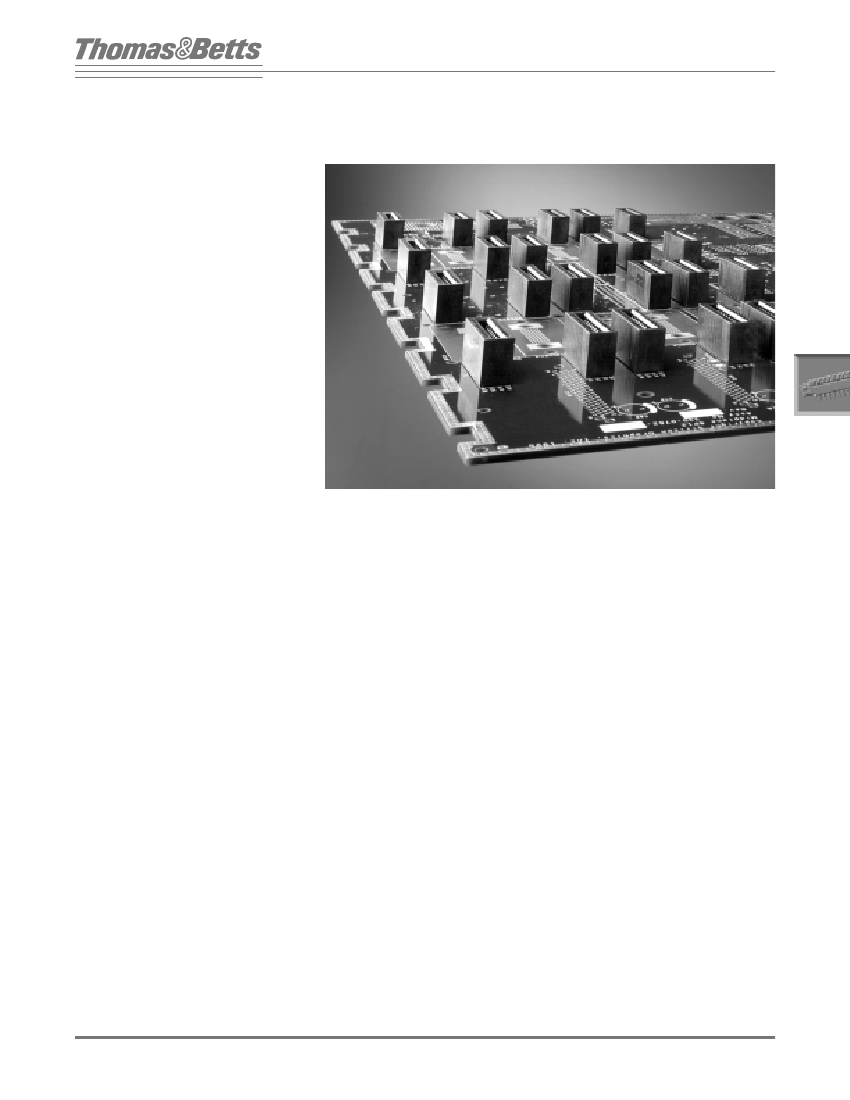

Thomas & Betts Press-fit connectors

allow for easy conversion from dip

solder to press fit termination into

backplanes without any board

redesign. Thomas & Betts compliant

pin connectors meet or exceed

requirements of all industry

standards, including Bellcore

specifications, which address critical

performance issues such as hole

re t e n t i o n , h o l e d e f o r m a t i o n a n d

environmental performance.

PRESS-FIT CARDEDGE

ESIGN

DVANTAGES

• Does not involve any board

redesign.

• Our full line of hand tools allow pins

to be repaired from the front or rear

of the connector.

• Unique pin geometry allows for

even distribution of forces reducing

axial pin rotation and preserving

perpendicularity to the PCB board.

• Edge and side coining provides a

uniform pin radius ensuring

maximum contact without “skiving”

the plated hole.

• Various tail lengths provide design

flexibility with the ability to connect

on both sides of the motherboard.

• Solderless technology reduces

environmental waste involved in

heavy metal solder processes.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

359
