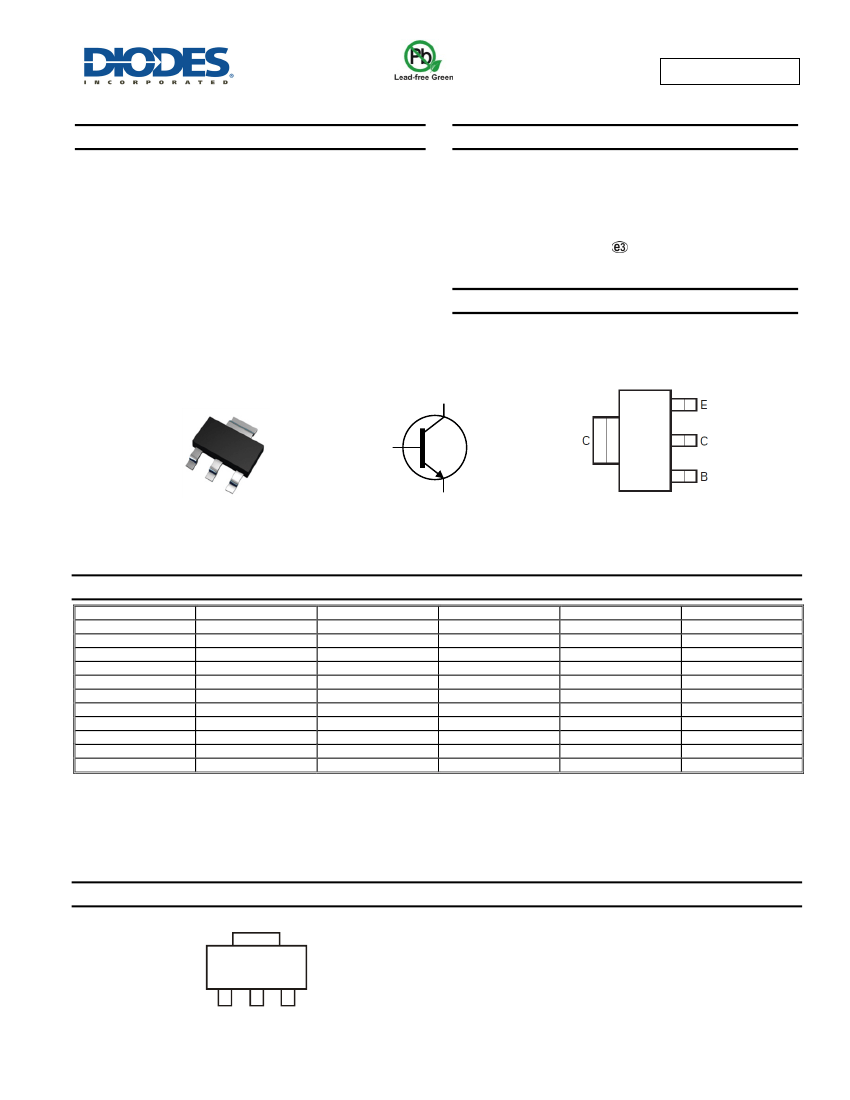

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (approximate)
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
SOT223
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BCP54TA
BCP5410TA
BCP5416TA
BCP5416QTA
BCP55TA
BCP5510TA
BCP5516TA
BCP56TA
BCP5610TA
BCP5616TA
BCP5616TC
Notes:
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Marking
BCP 54
BCP 5410
BCP 5416
BCP 5416
BCP 55
BCP 5510
BCP 5516
BCP 56
BCP 5610
BCP 5616
BCP 5616
Reel size (inches)
7
7
7
7
7
7
7
7
7
7
13
Tape width (mm)
12
12
12
12
12
12
12
12
12
12
12
Quantity per reel
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
4,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
BCP = Product Type Marking Code, Line 1.
XXXX = Product Type Marking Code, Line 2 as follows:
