2SD2146T105/Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD2146T105/Q

2SD2146T105/Q: Description3A, 50V, NPN, Si, POWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size128KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SD2146T105/Q Overview

3A, 50V, NPN, Si, POWER TRANSISTOR

2SD2146T105/Q Parametric

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	120
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	90 MHz
VCEsat-Max	1 V
Base Number Matches	1

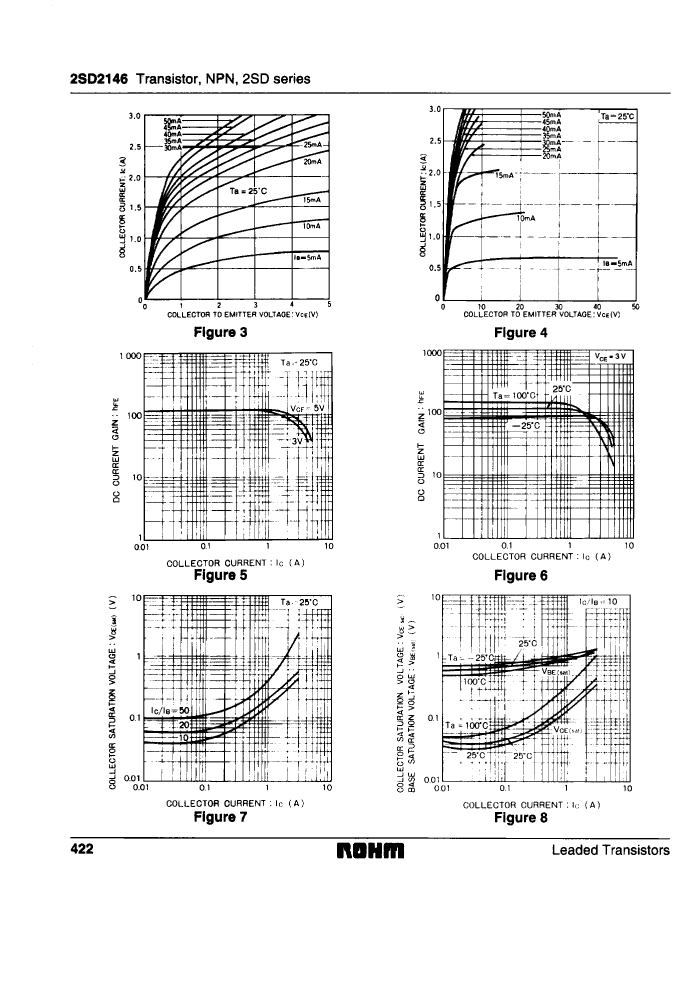

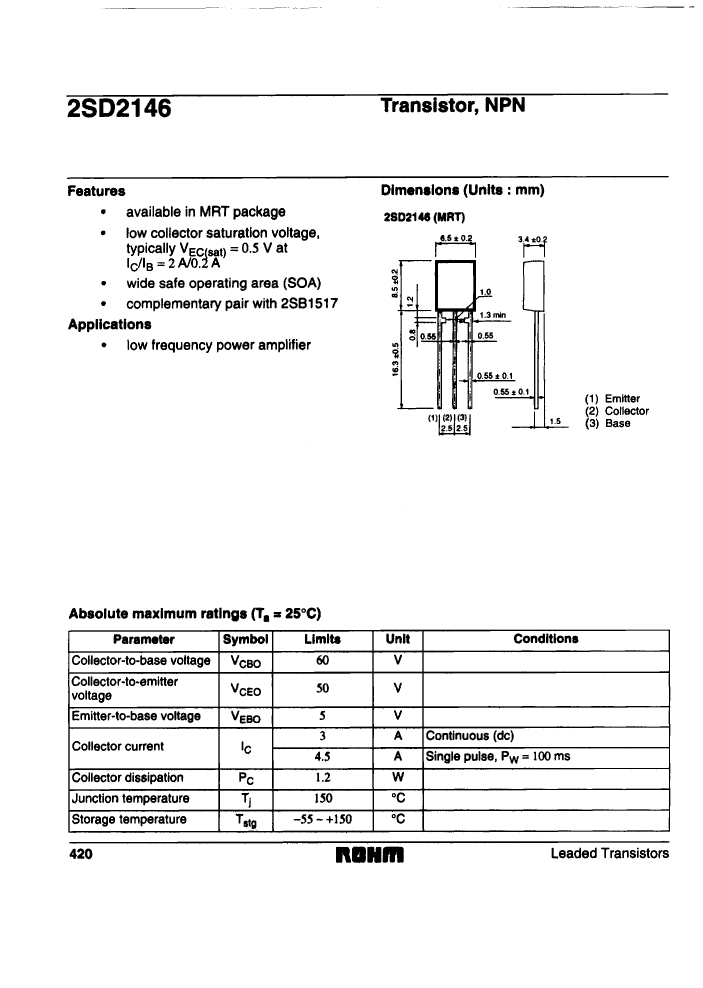

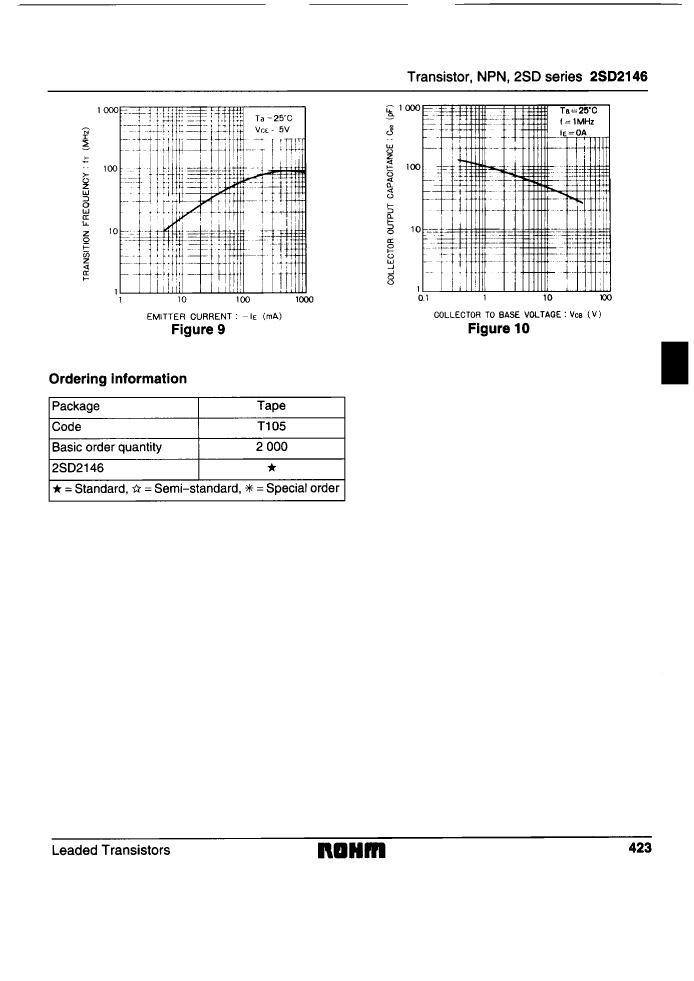

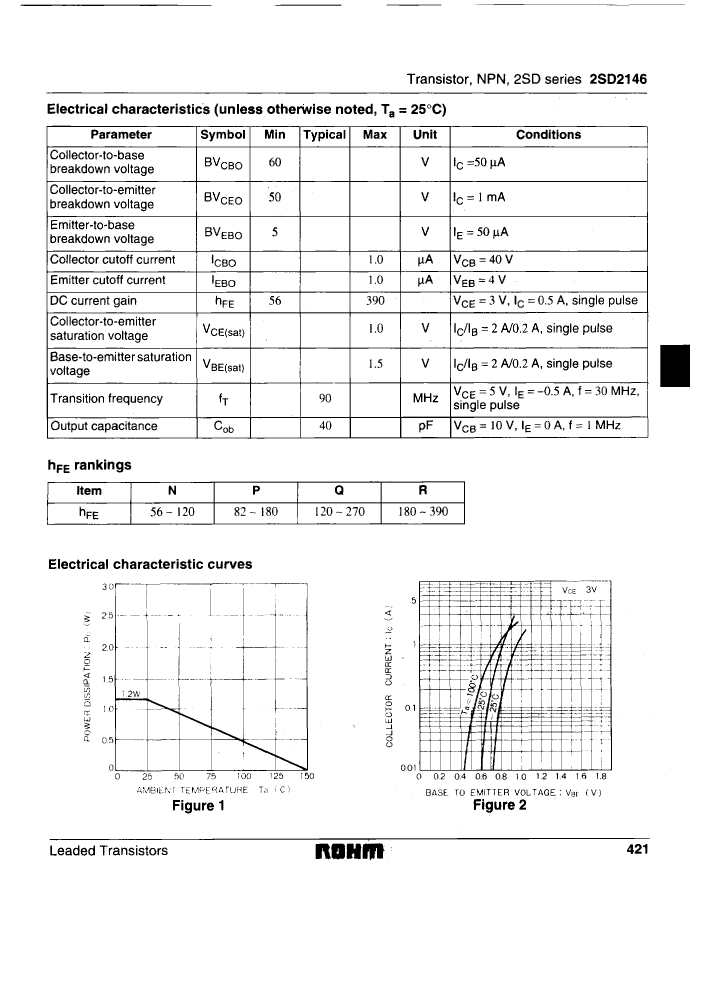

Preview

Download Datasheet

View All

2SD2146T105/Q Related Products

	2SD2146T105/Q	2SD2146T105N	2SD2146T105R	2SD2146T105	2SD2146T105Q	2SD2146T105P	2SD2146T105/R	2SD2146T105/P	2SD2146T105/N
Description	3A, 50V, NPN, Si, POWER TRANSISTOR	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin	3A, 50V, NPN, Si, POWER TRANSISTOR	3A, 50V, NPN, Si, POWER TRANSISTOR	3A, 50V, NPN, Si, POWER TRANSISTOR
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	120	56	180	56	120	82	180	82	56
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	-
