BAW101TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAW101TR

BAW101TR: DescriptionRectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN; CategoryDiscrete semiconductor diode; File Size30KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

BAW101TR Overview

Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN

BAW101TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT-143
package instruction	SOT-143, 4 PIN
Contacts	4
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	50 µA
Maximum reverse recovery time	0.05 µs
Reverse test voltage	250 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

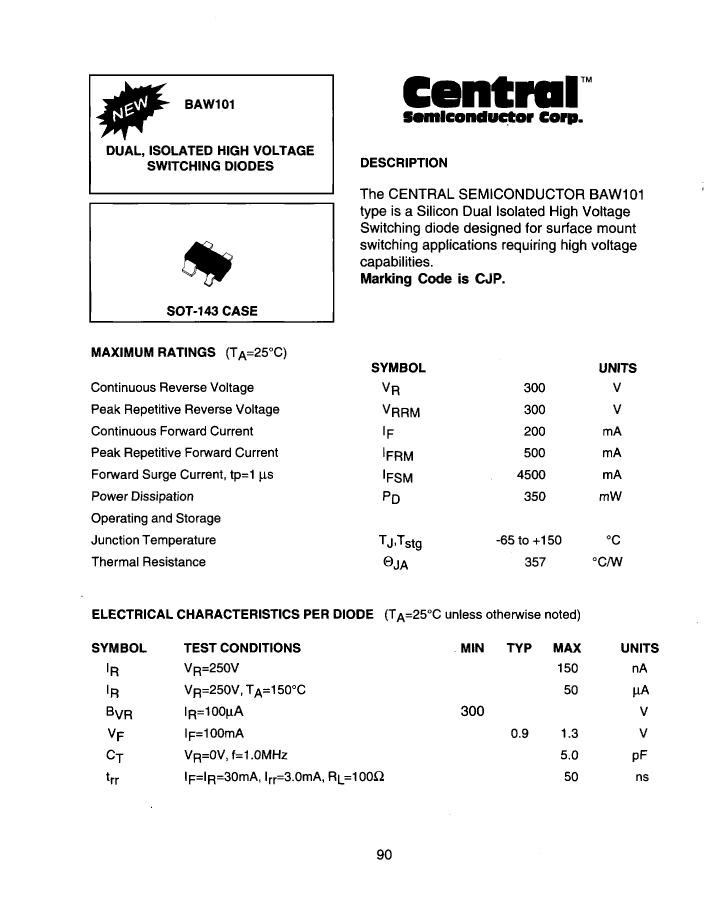

Preview

Download Datasheet

View All

BAW101TR Related Products

	BAW101TR	BAW101TRLEADFREE	BAW101BK	BAW101BKLEADFREE	BAW101TR13LEADFREE	BAW101TR13
Description	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN	Rectifier Diode, 2 Element, 0.2A, 300V V(RRM), Silicon, SOT-143, 4 PIN
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Parts packaging code	SOT-143	SOT-143	SOT-143	SOT-143	SOT-143	SOT-143
package instruction	SOT-143, 4 PIN	R-PDSO-G4	SOT-143, 4 PIN	R-PDSO-G4	R-PDSO-G4	SOT-143, 4 PIN
Contacts	4	4	4	4	4	4
Reach Compliance Code	not_compliant	compliant	not_compliant	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e0	e3	e0	e3	e3	e0
Number of components	2	2	2	2	2	2
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	260	NOT SPECIFIED
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	300 V	300 V	300 V	300 V	300 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	MATTE TIN (315)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	10	NOT SPECIFIED	10	10	NOT SPECIFIED
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	-	-
Maximum reverse current	50 µA	50 µA	50 µA	50 µA	-	-
Reverse test voltage	250 V	250 V	250 V	250 V	-	-
