SIS1206L-5R5F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SIS1206L-5R5F

SIS1206L-5R5F: DescriptionGeneral Purpose Inductor, 5.5uH, 15%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size50KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric View All

SIS1206L-5R5F Overview

General Purpose Inductor, 5.5uH, 15%, 1 Element, SMD, ROHS COMPLIANT

SIS1206L-5R5F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.0124 Ω
Nominal inductance(L)	5.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SIS1206
Number of functions	1
Number of terminals	3
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	15%

Preview

Download Datasheet

View All

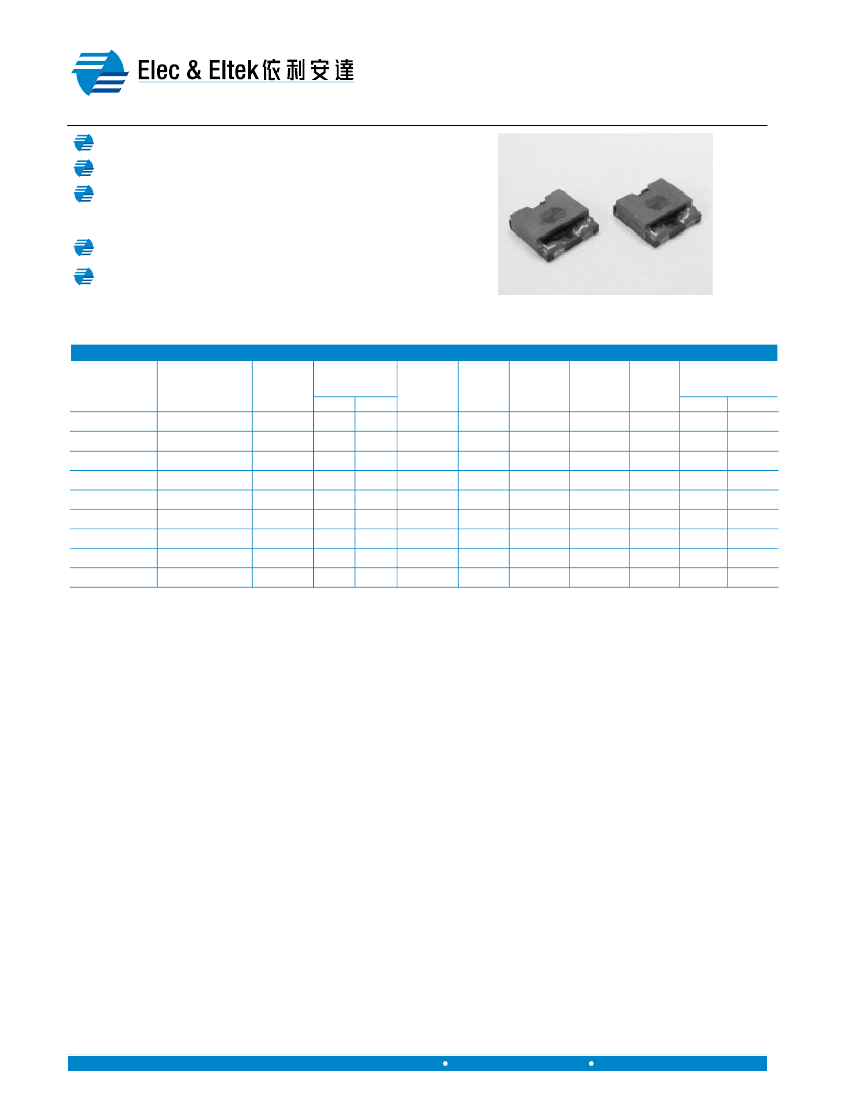

E & E Magnetic Products Limited

SURFACE MOUNT

HIGH CURRENT POWER INDUCTOR

Flat WireType, SIS1206 Series

CHEMATICS

Magnetically Shielded

High energy storage

Ideal for high current requirements of notebook,

video recorders and other DC-DC conversion

applications

Custom inductance value or tolerance is available

RoHS compliant versions are available

LECTRICAL

PECIFICATION

@ 25

Part

Number

RoHS

Part Number

Inductance

(uH)

0.2

0.33

0.6

1.0

2.1

3.1

4.2

4.6

5.5

Inductance

Tolerance

(%)

±15%

±20%

Inductance Irated

@ Irated Current

(uH) Typ

(A)

0.18

0.32

0.51

0.89

1.89

2.81

3.82

4.18

5.18

8.5

8.0

7.5

Saturation Heating

DCR

Current

Ω

Max)

(A)

1.0

0.8

1.75

3.6

7.5

10.4

12.4

8.5

7.5

Marking

(XYYY)

L:±15% M:±20%

L0R2

M0R2

L0R3

L0R6

L1R0

L2R1

L3R1

L4R2

L4R6

L5R5

M0R3

M0R6

M1R0

M2R1

M3R1

M4R2

M4R6

M5R5

SIS1206X-0R2 SIS1206X-0R2F

SIS1206X-0R3

SIS1206X-0R6

SIS1206X-1R0

SIS1206X-0R3F

SIS1206X-0R6F

SIS1206X-1R0F

SIS1206X-2R1 SIS1206X-2R1F

SIS1206X-3R1 SIS1206X-3R1F

SIS1206X-4R2 SIS1206X-4R2F

SIS1206X-4R6

SIS1206X-5R5

SIS1206X-4R6F

SIS1206X-5R5F

Notes:

1. Add the tolerance code of inductance by replacing “X” of the part number by: L=

±15%

or M=

±20%.

2. Inductance is tested at 0.25Vrms, 100kHz.

3. Saturation current, Isat, indicates the value of DC current when the inductance is 10% typical lower than its

initial value.

4. Heating current, Irms, is the value of current when the temperature rising

∆

T=40 C typical.

5. Rated inductance is for reference only.

6. The rated current listed is the lower of the saturation current @25ºC or the heating current.

7. Operating temperature range: -40ºC to +130ºC.

8. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the

operating temperature under worst case operating conditions. Circuit design, component placement, PWB

trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

9. Contact EEMPL for RoHS compliant version availability.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI114(02)

Revised in 06/07
