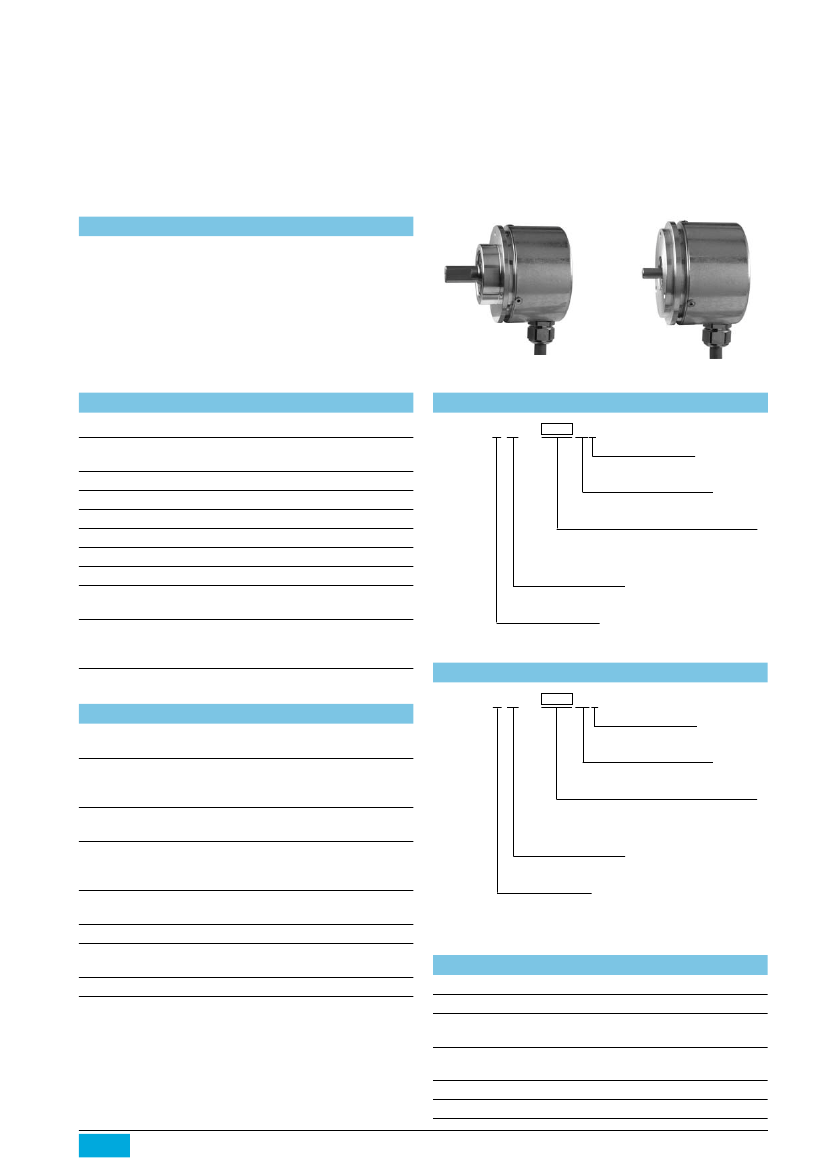

Magnetic absolute single-turn shaft encoder
BMSV –
MAGRES
parallel
features
•
•
•
•
•
•
single-turn encoder / parallel
magnetic sensing principle
resolution: 12 bit
high resistance shock and vibration
zero setting input
clamping or servo flange
58K
general data
voltage supply
max. supply current
no load
output circuit
signal code
max. resolution
max. error limit
repeatability
max. switching frequency
zero setting signal
direction of rotation
1)
58S
C05
connection
5
cable 2 m radial
shaft
C0
shaft 10 mm IP 65
resolution
12/00
00360
signal code
G
Gray code
flange
K
clamping flange
12 bit
360 steps (9 bit Gray clipped)
order designation BMSV 58K
10 - 30 VDC
typ. 50 mA (at 24 VDC)
parallel 10 - 30 VDC
Gray code
12 bit (1 step = 5' 16'')
±1°
0,3°
51,2 kHz
zero setting: < 0,4 V, min. 2 ms
off state: +Vs or open
looking at the flange, position
counts up as the shaft rotates
clockwise (CW)
BMSV 58K1G24K
order designation BMSV 58S
BMSV 58S1G24K
C6 5
connection
5
cable 2 m radial
shaft
C6
full shaft 6 mm IP 65
resolution
12/00
00360
signal code
12 bit
360 steps (9 bit Gray clipped)
mechanical data
max. revolutions
moment of inertia
C6
C0
torque
max. shaft load
C6
C0
product life
max. protection class
material
weight
12'000 rpm (mechanical)
6'000 rpm (electrical)
typ. 11,8 x 10
-7
kgm
2
typ. 17,8 x 10
-7
kgm
2
typ. 2,3 cNm
(3'000 rpm / 20 °C)
axial: 10 N
axial: 40 N
radial: 20 N
radial: 60 N
S
G
Gray code
flange
servo flange
depending on ambient conditions
(typ. 10
9
revolutions)
IP 65
housing: aluminium
flange: aluminium
approx. 300 g
ambient conditions
temperature range
relative humidity
vibration
shock
noise immunity
emitted interference
-20...+85 °C
max. relative humidity 95%
IEC 60068-2-6
(
≤
300 m/s
2
/ 10 - 2'000 Hz)
IEC 60068-2-27
(
≤
1'000 m/s
2
/ 6 ms)
EN 61000-6-2
EN 61000-6-3
2.34
www.baumerelectric.com
BMSV 58
MAGRES
parallel

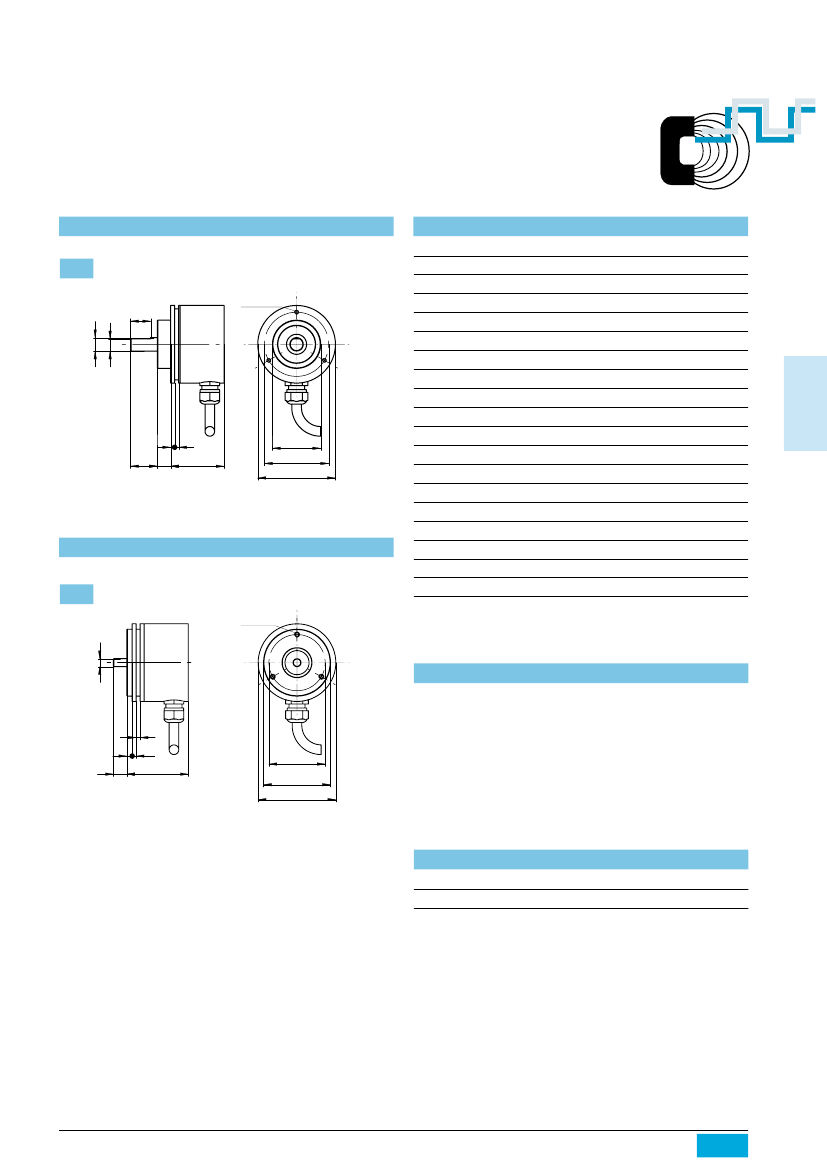

dimensions clamping flange (K)
-5
M3 x 7
3 x 120°
15
ø 10 f6
9
assignment cable
cable color
brown
white
green
yellow
grey
pink
blue
red
black
signal
+V
S
0V
bit 1 LSB
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
bit 11
bit 12 MSB
1)
description
voltage supply
voltage supply
data
data
data
data
data
data
data
data
data
data
data
data
zero setting input
housing
16 x 0,14 mm
2
2
3
20 10
3
40
36 h8
48
58
purple
grey/pink
white/green
brown/green
yellow/brown
white/yellow
bit 12 MSB inv. data
dimensions servo flange (S)
red/blue
screen
cable data
M4 x 6
3 x 120°
zero
-5
ø 6 f6
direction of rotation
1)
3
4
10
3
46
50
42
0
-0,025
The direction of rotation from encoders using a Gray code can
be defined by connecting the MSB or inverted MSB. Both
signals are available as an output. If the MSB is connected,
the encoder counts up as the shaft rotates clockwise. If the
MSB inv. is connected, the encoder counts up if the shaft
rotates counter clockwise.
58
accessories
clamp set
part nr. 252773
couplings and mounting adapters see chapter accessories
www.baumerelectric.com
2.35
