VF261-SL-1-25MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VF261-SL-1-25MHZ

VF261-SL-1-25MHZ: DescriptionLVPECL Output Clock Oscillator, 25MHz Min, 320MHz Max, 25MHz Nom, ROHS COMPLIANT, SMD, 6 PIN; CategoryPassive components oscillator; File Size313KB，3 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

VF261-SL-1-25MHZ Overview

LVPECL Output Clock Oscillator, 25MHz Min, 320MHz Max, 25MHz Nom, ROHS COMPLIANT, SMD, 6 PIN

VF261-SL-1-25MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
package instruction	ROHS COMPLIANT, SMD, 6 PIN
Reach Compliance Code	unknown
maximum descent time	1.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	VF261
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	320 MHz
Minimum operating frequency	25 MHz
Nominal operating frequency	25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.2mm x 5.2mm x 1.9mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	1.5 ns
Maximum slew rate	60 mA
Maximum supply voltage	3.45 V
Minimum supply voltage	3.15 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

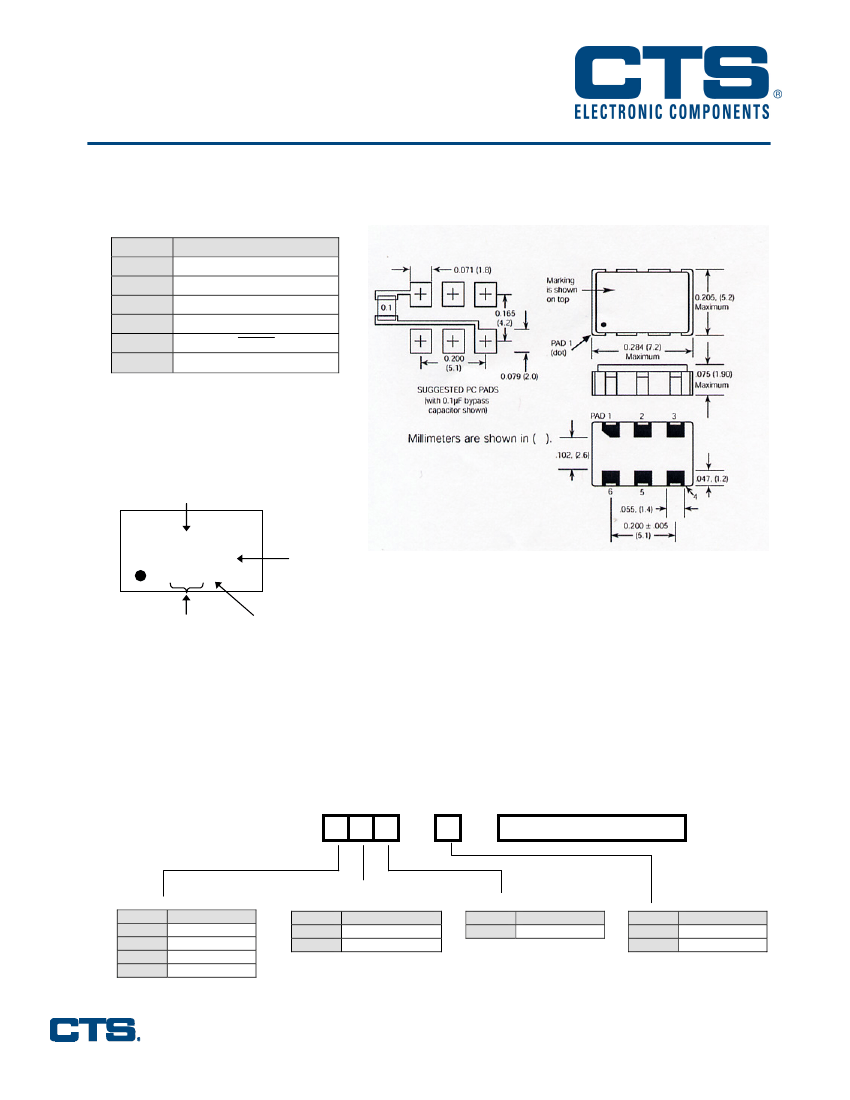

Preview

Download Datasheet

View All

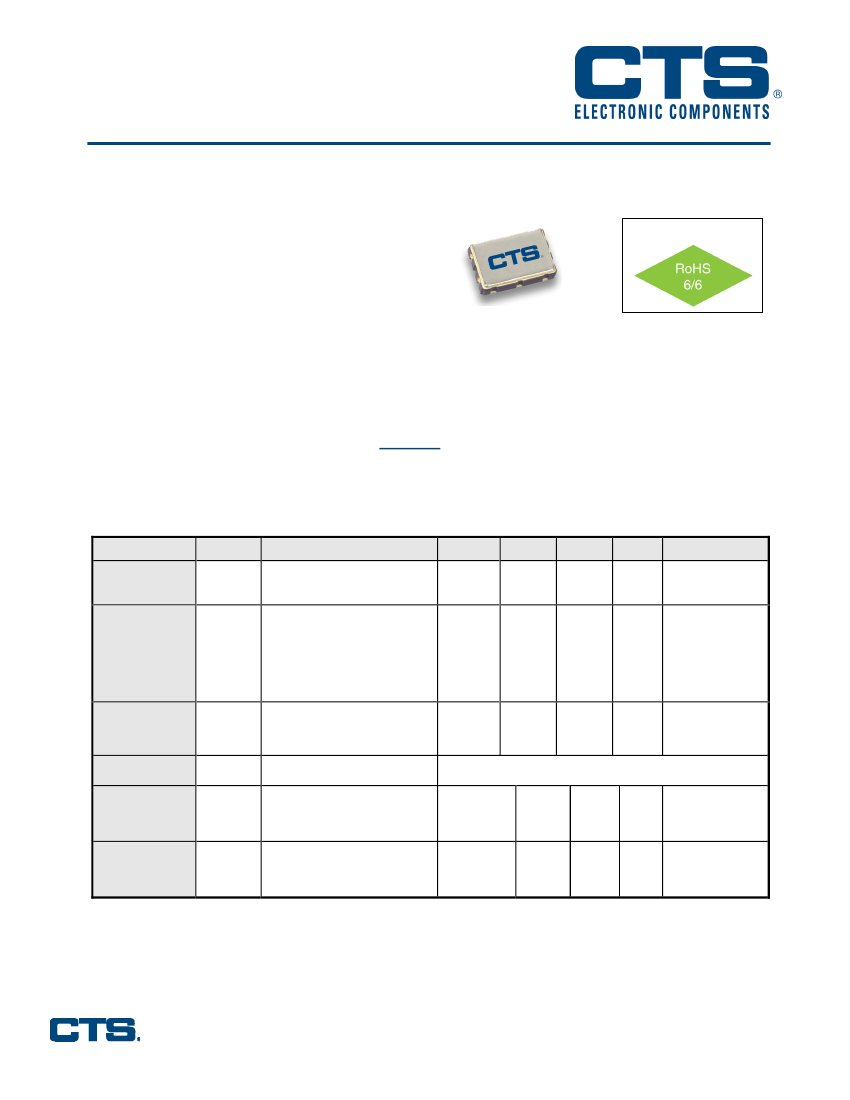

VF261

XO Low Jitter

5x7mm SMD, LVPECL

Features



25MHz to 320MHz frequency range

Tight duty cycle

<1ps RMS jitter over 12kHz ~ 20MHz

RoHS Status

Applications



Optical Networking, SONET / SDH

10 Gigabit Ethernet

Broadband Access

*Not recommended for new designs – see VFXO401*
