Datasheet> All Categories > logic> logic> M74HC590M1

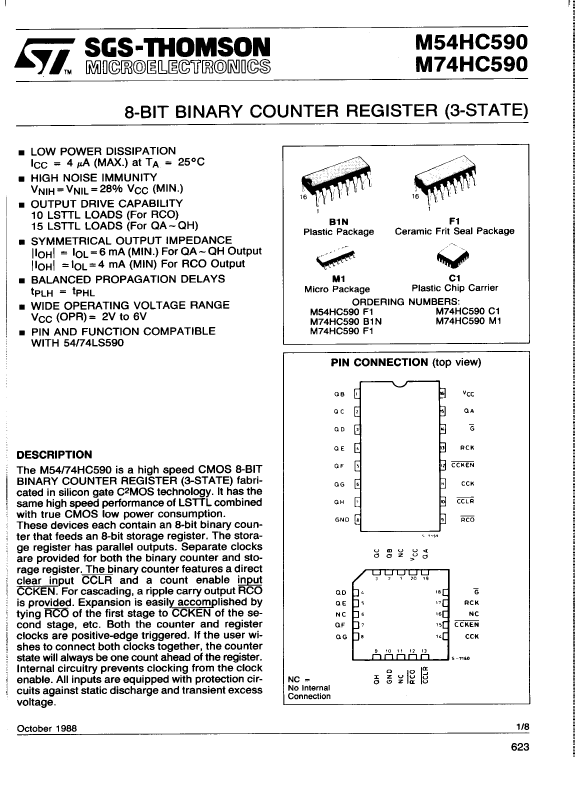

Preview

M74HC590M1: DescriptionHC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PDSO16, MICRO, PLASTIC, DIP-16; Categorylogic logic; File Size222KB，8 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M74HC590M1 Overview

HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PDSO16, MICRO, PLASTIC, DIP-16

M74HC590M1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	not_compliant
Other features	TCO OUTPUT; REGISTERED OUTPUTS
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	16000000 Hz
MaximumI(ol)	0.006 A
Operating mode	ASYNCHRONOUS
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
propagation delay (tpd)	45 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	16 MHz

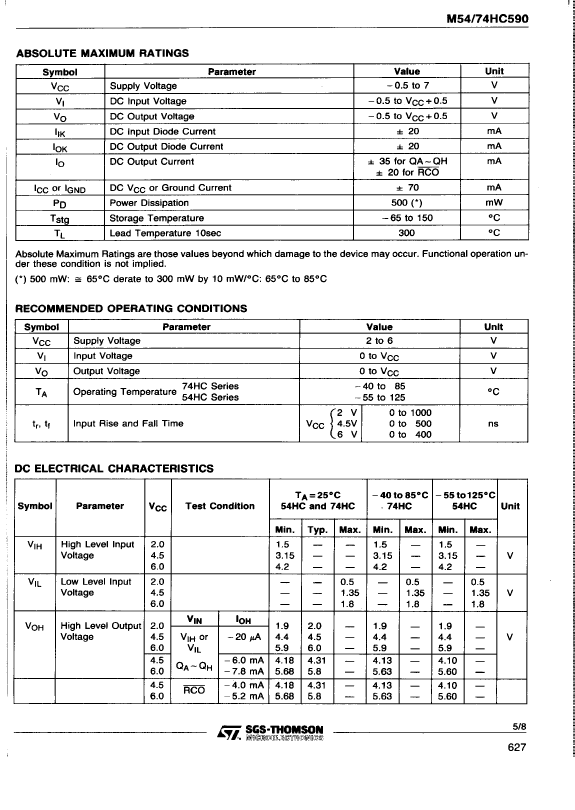

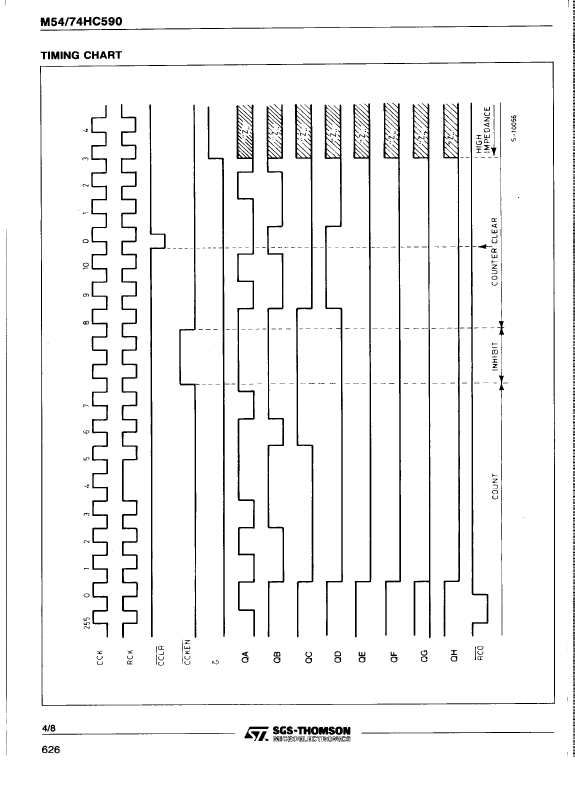

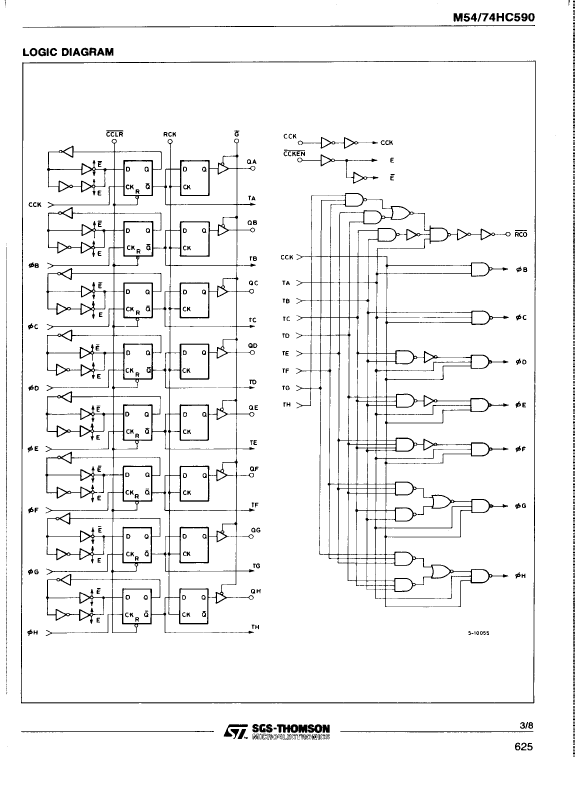

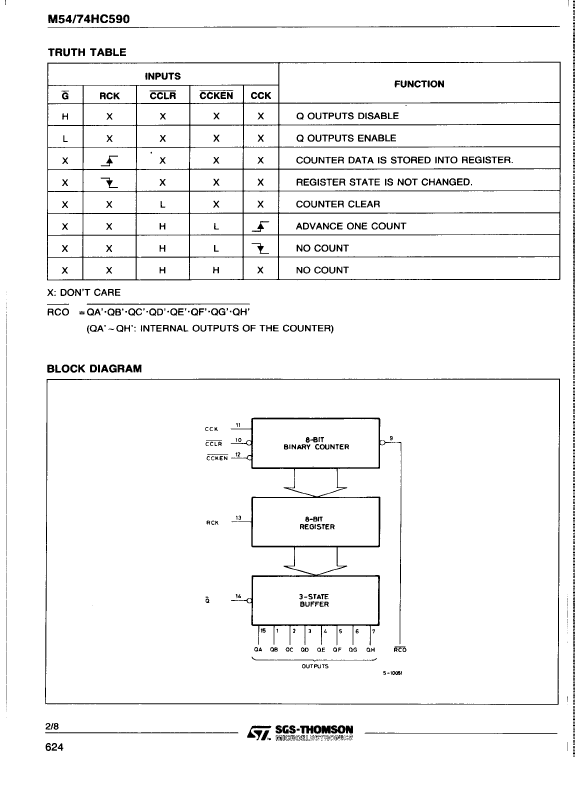

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

M74HC590M1 Related Products

	M74HC590M1	M74HC590F1	M54HC590F1	M74HC590B1N	M74HC590C1
Description	HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PDSO16, MICRO, PLASTIC, DIP-16	HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, CDIP16, FRIT SEALED, CERAMIC, DIP-16	HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, CDIP16, FRIT SEALED, CERAMIC, DIP-16	HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16	HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PQCC20, PLASTIC, CC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	SOIC	DIP	DIP	DIP	QFN
package instruction	SOP, SOP16,.25	FRIT SEALED, CERAMIC, DIP-16	DIP, DIP16,.3	DIP, DIP16,.3	QCCJ, LDCC20,.4SQ
Contacts	16	16	16	16	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	TCO OUTPUT; REGISTERED OUTPUTS	TCO OUTPUT; REGISTERED OUTPUTS	TCO OUTPUT; REGISTERED OUTPUTS	TCO OUTPUT; REGISTERED OUTPUTS	TCO OUTPUT; REGISTERED OUTPUTS
Counting direction	UP	UP	UP	UP	UP
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	NO	NO	NO	NO	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	16000000 Hz	16000000 Hz	13000000 Hz	16000000 Hz	16000000 Hz
MaximumI(ol)	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	20
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	QCCJ
Encapsulate equivalent code	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V
propagation delay (tpd)	45 ns	45 ns	54 ns	45 ns	45 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	5 mm	5 mm	5.1 mm	4.57 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	3.9 mm	7.62 mm	7.62 mm	7.62 mm	8.9662 mm
minfmax	16 MHz	16 MHz	13 MHz	16 MHz	16 MHz
