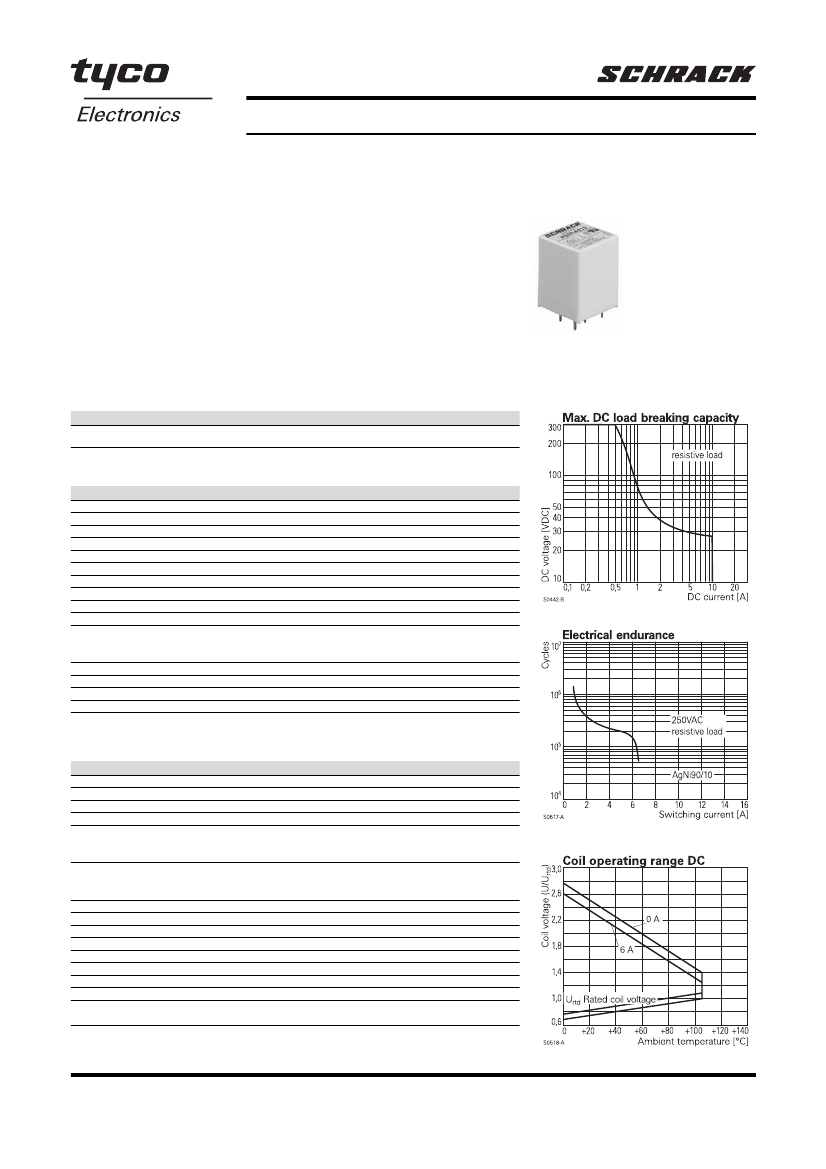

General Purpose Relays
Miniature Power PCB Relay PBH 105°C
I
I
I
I
I
I
1pole 6 A, 1 CO or 1 NO contact
Environmentally-friendly cadmium-free contacts
Class F coil system standard
For ambient temperatures up to 105°C
Product in accordance to IEC60335-1
RoHS compliant (Directive 2002/95/EC)
as per product date code 0346
Applications
F0224BB
White goods, domestic appliances
Approvals
V
REG.-Nr.
of
121560,
Z
request
E214025
Technical data approved types on
Contact data
Contact configuration
Contact set
Type of interruption
Rated current
Rated voltage / max.switching voltage AC
Maximum breaking capacity AC
Limiting making capacity, max 4 s, duty factor 10%
Contact material
Mechanical endurance
Rated frequency of operation with / without load
Contact
Type
NO
NO
CO
1 CO or 1 NO contact
single contact
micro disconnection
6A
240/400 VAC
1500 VA
10 A
AgNi 90/10
2x10
6
cycles
6/600 min
-1
ratings
Load
2 A, 250 VAC, 105°C, resistive, 50Hz, EN61810
5 A, 250 VAC, 105°C, resistive, 50Hz, EN61810
6 A, 250 VAC, 105°C, resistive, 50Hz, EN61810
Cycles
250x10
3
150x10
3
100x10
3
Coil data
Rated coil voltage range DC coil
Coil power DC coil
Operative voltage range, % of rated coil voltage
Non-release voltage, % of rated coil voltage
5...36 VDC
typ. 360 mW
90...100%
50%
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
005
5
3.75
0.5
70+10%
357
006
6
4.5
0.6
100+10%
360
009
9
6.75
0.9
225+10%
360
012
12
9.0
1.2
400+10%
360
018
18
13.5
1.8
900+10%
360
022
22
16.5
2.2
1344+10%
360
024
24
18.0
2.4
1600+10%
360
048
48
36
4.8
6400+10%
360
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Miniature Power PCB Relay PBH 105°C
(Continued)
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
2500 V
rms
1000 V
rms
W
3/4 mm
IIIa
CTI 250
basic
functional
250 V
3
230/400 V
III
PCB layout / terminal assignment
Bottom view on solder pins
S0407-AA
Other data
RoHS - Directive 2002/95/EC
compliant as per product date code 0346
Flammability class according to UL94
V-0
GWFI to IEC 60335-1
W
850°C
GWIT to IEC 60335-1
W
775°C
Ambient temperature range
-20...105°C
Operate- / release time
< 20 ms
Bounce time NO / NC contact
< 15 ms
Vibration resistance (function) NO / NC contact
>10/4g, 30...400Hz
Shock resistance (destruction)
100 g
Category of protection
RTII - flux proof
Mounting
pcb
Resistance to soldering heat
270°C / 10 s
Relay weight
5.4 g
Packaging unit
35/1050 pcs
S0407-AB
Dimensions
S0407-AC
S0406-A
Product key
Type
Version
H
High temperature version
Contact configuration
3
1
1 CO contact
Contact material
4
AgNi 90/10
Coil
Coil code: please refer to coil versions table
Other types on request
P B
H
4
1 NO contact
Product key
PBH14005
PBH14006
PBH14009
PBH14012
PBH14018
PBH14022
PBH14024
PBH14036
PBH34005
PBH34006
PBH34009
PBH34012
PBH34018
PBH34022
PBH34024
PBH34036
Version
high
temperature
version
Contacts
1 CO contact
Contact material
AgNi 90/10
1 NO contact
Coil
5 VDC
6 VDC
9 VDC
12 VDC
18 VDC
22 VDC
24 VDC
36 VDC
5 VDC
6 VDC
9 VDC
12 VDC
18 VDC
22 VDC
24 VDC
36 VDC
Part number
9-1415356-1
8-1415356-1
7-1415356-1
6-1415356-1
6-1415357-1
7-1415357-1
6-1415355-1
9-1415355-1
5-1415356-1
4-1415356-1
3-1415356-1
2-1415356-1
8-1415357-1
9-1415357-1
1-1415356-1
0-1415356-1
2
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
