General Purpose Relays
Miniature Relay PT
I
I
I
I
I
I
I
I

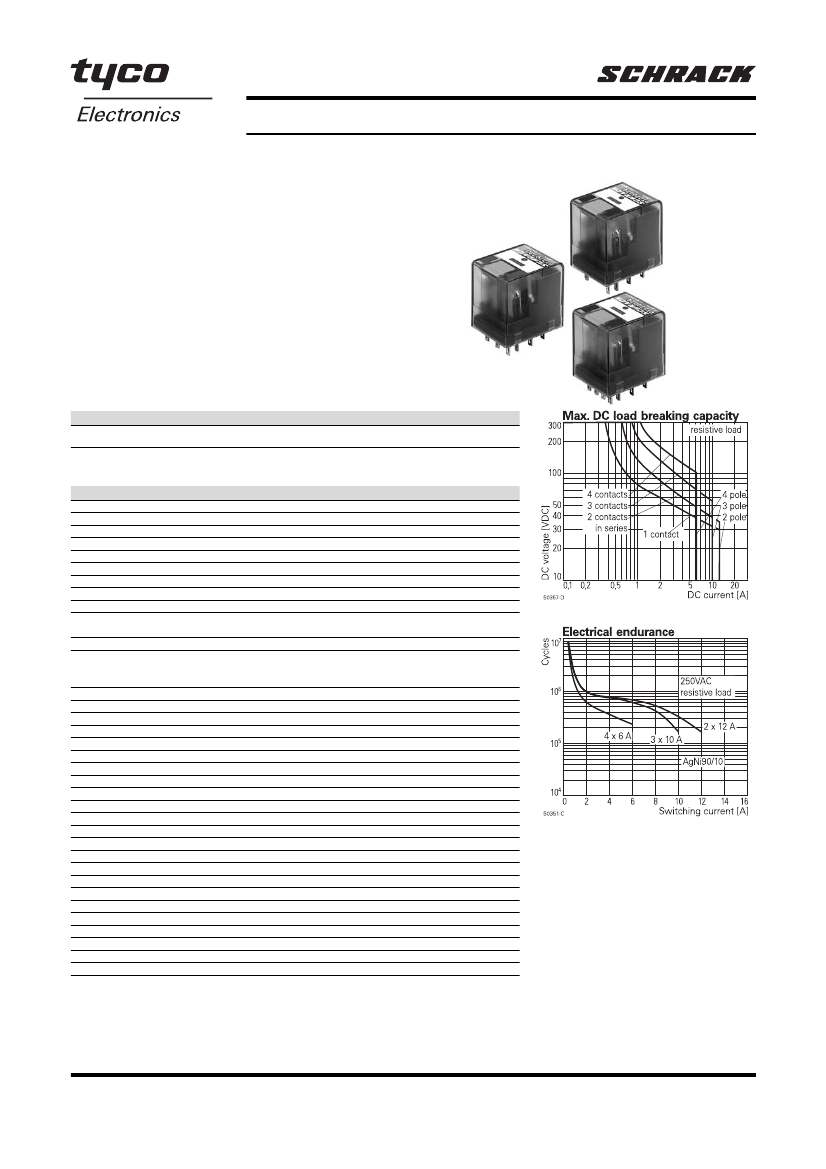

2 pole 12 A, 3 pole 10 A or 4 pole 6 A, 2, 3 or 4 CO contacts
DC- or AC-coil
Switching performance up to 3000 VA
Relay height 29 mm
Mechanical and electrical indicator
Manual test tab, optionally lockable.
White marking tabs
RoHS compliant (Directive 2002/95/EC)
Applications
Universal use in control and automation
F0191-A
Approvals
V
REG.-Nr.
of
115719,
Z
request
L
00/20059(E2)
E214025,
Technical data approved types on
Contact data
PT2
PT3
PT5
Contact configuration
2 CO
3 CO
4 CO
Contact set
single contact
Type of interruption
micro disconnection
Rated current
12 A
10 A
6A
Rated voltage / max.switching voltage AC 240/400 VAC 240/400 VAC 240/240 VAC
Maximum breaking capacity AC
3000 VA
2500 VA
1500 VA
Limiting making capacity, max 20 ms
24 A
20 A
12 A
Contact material
AgNi90/10, AgNi90/10 gold plated
Minimum contact load
12V/10mA, 20mV/1mA gold plated
Mechanical endurance DC coil
30x10
6
cycles
AC coil
20x10
6
cycles
Rated frequency of operation with / without load
6/600 min
-1
Contact
Type
PT270
PT270
PT270
PT270
PT270
PT270
PT270
PT370
PT370
PT370
PT370
PT370
PT370
PT370
PT570
PT570
PT570
PT570
PT570
PT570
PT570
PT570
ratings
Load
12 A, 250 VAC, 3000 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
8 A, 250 VAC, 2000 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
4 A, 250 VAC, 1000 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
3.75 A, 400 VAC, opp. polarity, 70°C, AC3
5 A, 250 VAC, opp. polarity, normal/abnormal, 70°C, AC15
8 A, 24 VDC, opp. polarity, normal/abnormal, 70°C, DC13
1.7 A, 230 VAC, 400 W, opp. polarity, 70°C, AC5b
10 A, 250 VAC, 2500 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
8 A, 250 VAC, 2000 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
4 A, 250 VAC, 1000 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
2 A, 400 VAC, opp. polarity, 70°C, AC3
5 A, 250 VAC, opp. polarity, normal/abnormal, 70°C, AC15
8 A, 24 VDC, opp. polarity, normal/abnormal, 70°C, DC13
1.7 A, 230 VAC, 400 W, opp. polarity, 70°C, AC5b
6 A, 250 VAC, 1500 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
2 A, 250 VAC, 500 VA, cosϕ=1, DF 50%, 600 h
-1
, NO, 70°C
3 A, 400 VAC, opp. polarity, 70°C, AC3
4 A, 250 VAC, opp. polarity, normal/abnormal, 70°C, AC15
6 A, 24 VDC, opp. polarity, normal/abnormal, 70°C, DC13
1.7 A, 230 VAC, 400 W, opp. polarity, 70°C, AC5b
0.3 A, 110 VDC, 33 W, L/R=22 ms, 1440 h
-1
, DF 8%, NO, prot.D.
3 A on /1 A off, 120 VAC, cosϕ 0.8on/0.5off, 600h
-1
, DF 15%, NO
Cycles
168x10
3
750x10
3
8.3x10
6
159x10
3
466x10
3
1.1x10
6
228x10
3
782x10
3
3.6x10
6
423x10
3
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Miniature Relay PT
(Continued)

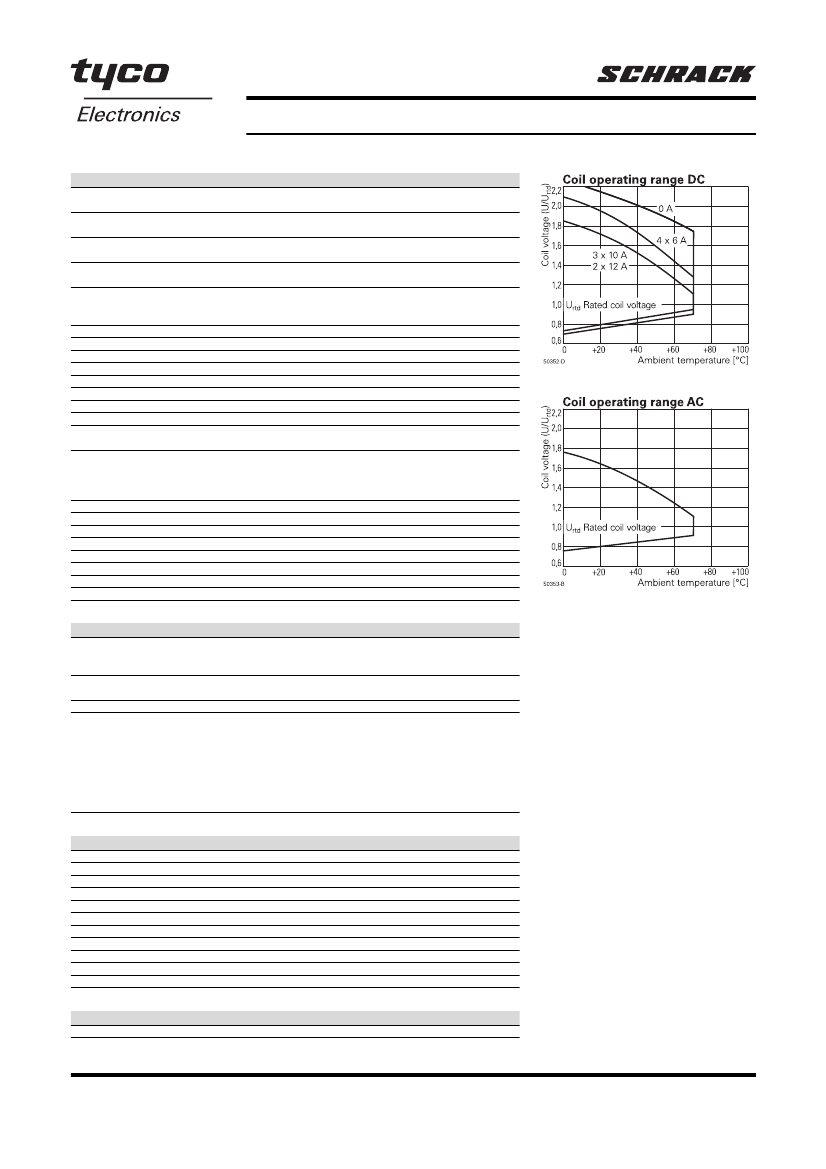

Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range DC coil, AC-coil 50Hz
AC coil 60 Hz at 70°C, % of U
rtd
6...220 VDC
6...230 VAC
0.75 mW
1.0 VA
2
90..110%
Coil versions, DC-coil
Coil code
Rated
Operate
Release
Coil
Rated coil
STD
LED
voltage
voltage
voltage
resistance
power
bipolar
VDC
VDC
VDC
Ohm
mW
006
L06
6
4.5
0.6
48+10%
750
012
L12
12
9.0
1.2
192+10%
750
+
024
L24
24
18.0
2.4
777+10%
741
048
L48
48
36.0
4.8
3072+10%
750
060
L60
60
45.0
6.0
4845+12%
743
110
M10
110
82.5
11.0
16133+15%
750
220
N20
220
165.0
22.0
64533+15%
750
All figures are given for coil without preenergization, at ambient temperature +23°C
Coil versions, AC-coil 50/60 Hz
Coil code
Rated
STD
LED
voltage
Operate
Release
Coil
Rated coil
voltage
voltage
resistance
power
50/60Hz
50/60Hz
50/60Hz
VAC
VAC
VAC
Ohm
VA
506
R06
6
4.8/5.4
1.8
11+10%
1.0/0.85
512
R12
12
9.6/10.8
3.6
48+10%
1.0/0.85
+
524
R24
24
19.2/21.6
7.2
192+10%
1.0/0.79
548
R48
48
38.4/43.2
14.4
777+10%
1.0/0.87
560
R60
60
48.0/54.0
18.0
1306+10%
1.0/0.87
615
S15
115
92.0/103.5
34.5
4845+12%
1.0/0.86
+
730
T30
230
184.0/207.0
69.0
19465+15%
1.0/0.90
All figures are given for coil without preenergization, at ambient temperature +23°C
Insulation
PT2
PT3
PT5
Dielectric strength coil-contact circuit
2500 V
rms
2500 V
rms
2500 V
rms
open contact circuit
1200 V
rms
1200 V
rms
1200 V
rms
adjacent contact circuits
2500 V
rms
2500 V
rms
2000 V
rms
Clearance / creepage coil-contact circuit
W
4/4 mm
W
4/4 mm
W
4/4 mm
adjacent contact circuits
W
3.5/9.5 mm
W
2.6/3.5 mm
W
1.8/3.5 mm
Material group of insulation parts
W
IIIa
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
basic
basic
basic
open contact circuit
functional
functional
functional
adjacent contact circuits
basic
basic
functional
Rated insulation voltage
250 V
250 V
250 V
Pollution degree
2
2
2
Rated voltage system
240/400 V
240 V
240 V
Overvoltage category
III
III
III
Other data
RoHS - Directive 2002/95/EC
Ambient temperature range
Operate- / release time
Bounce time NO / NC contact
Vibration resistance (function) NO / NC contact
Shock resistance (function) NO / NC contact
Category of protection
Mounting distance
Resistance to soldering heat
Relay weight
Packaging unit
compliant
-40...+70°C
15/10 ms
5 ms
7/4 g
20/5 g
RTII- flux proof
0 mm, dense packing
270°C / 10s
30 g
10/250 pcs
Accessories
For details see datasheet
Accessories Miniature Relay PT
2
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Miniature Relay PT
(Continued)
Relay Packages
Complete packages consisting of a relay mounted on a socket see Package PT
PCB layout / terminal assignment
Bottom view on pins
4-pole
3-pole
2-pole
S0354-AA
S0354-AD
S0354-AB
S0354-AE
S0354-AC
S0354-AF

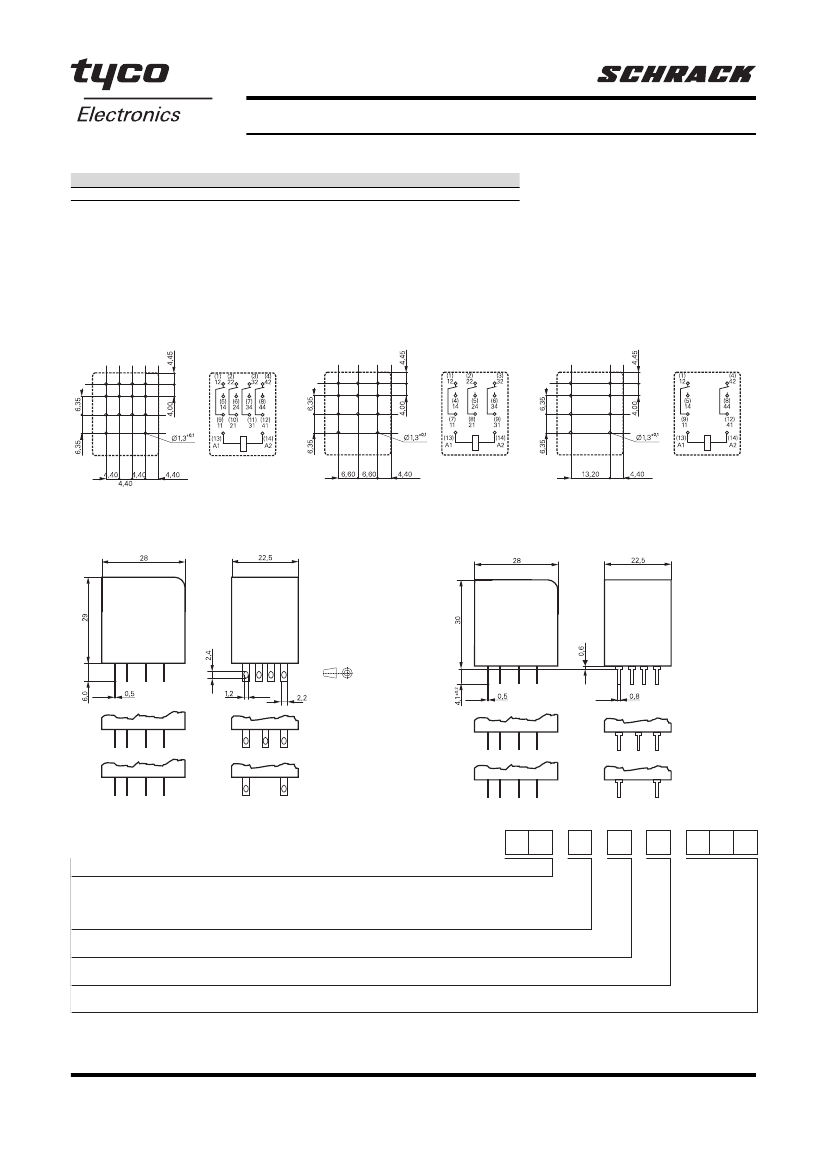

Dimensions
Solder- and plug-in terminals (standard version)
PCB version
S0355-AA
S0355-BB
Product key
P T
Type
Contact configuration
2
2 CO contacts
3
3 CO contacts
5
4 CO contacts
Contact material
7
AgNi 90/10, with test button*)
8
AgNi 90/10 gold plated, with test button*)
Version
1
PCB terminals
0
standard, 2.8 mm quick connect term.
Coil
Coil code: please refer to coil versions table, preferred types in bold print
*) Version with closed cap without test button available on request
Other types on request
3
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
