CMLD6263A_10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> CMLD6263A_10

CMLD6263A_10: Description0.015 A, 70 V, 4 ELEMENT, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size521KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMLD6263A_10 Overview

0.015 A, 70 V, 4 ELEMENT, SILICON, SIGNAL DIODE

CMLD6263A_10 Parametric

Parameter Name	Attribute value
Number of terminals	6
Number of components	4
Processing package description	PICOMINI-6
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	FLAT
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Craftsmanship	SCHOTTKY
structure	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Maximum power consumption limit	0.2500 W
Diode type	SIGNAL DIODE
Maximum reverse recovery time	0.0050 us
Maximum repetitive peak reverse voltage	70 V
Maximum average forward current	0.0150 A

Preview

Download Datasheet

View All

CMLD6263A

CMLD6263C

CMLD6263S

SURFACE MOUNT

DUAL PAIR, HIGH VOLTAGE

SILICON SCHOTTKY DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMLD6263 Series

incorporates two pair, high voltage, low VF Silicon

Diodes in a space saving SOT-563 surface mount

package. These diodes are designed for fast switching

applications requiring a low forward voltage drop.

MARKING CODES:

CMLD6263A: 63A

CMLD6263C: 63C

CMLD6263S: 63S

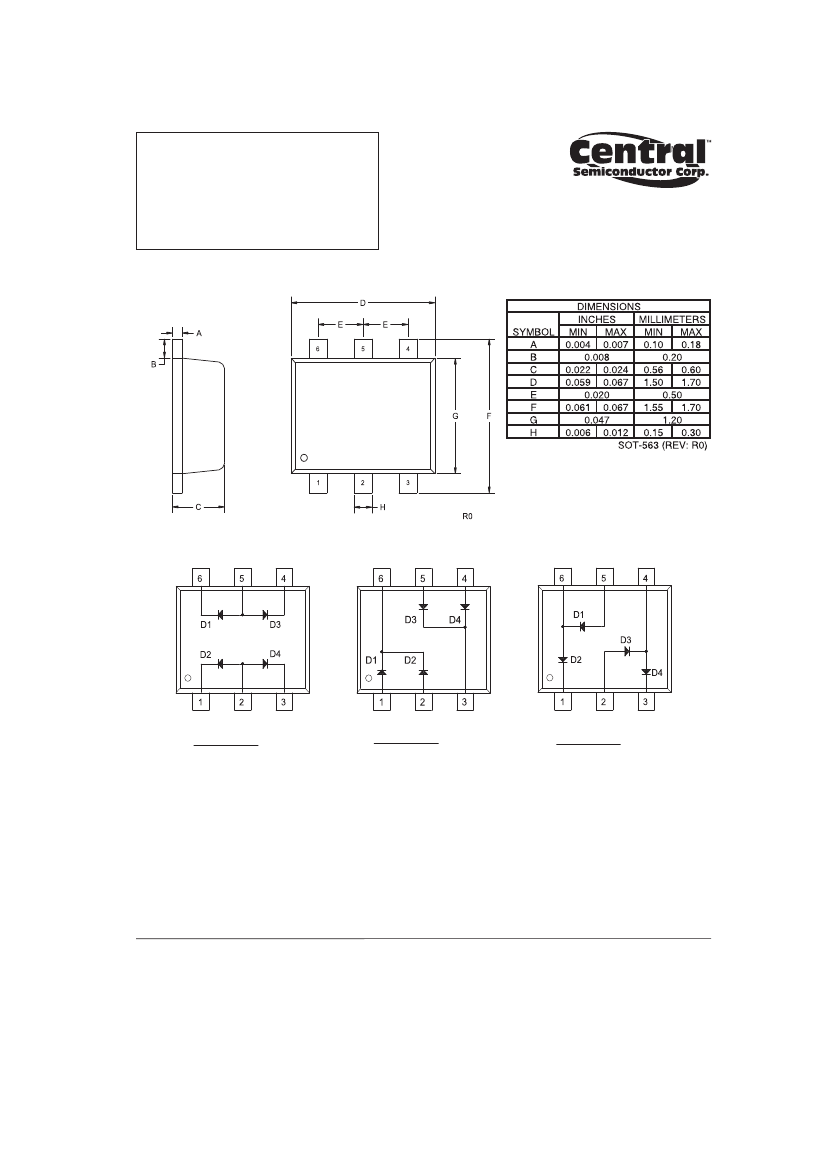

SOT-563 CASE

FEATURES:

• High Voltage (70V)

• Low Forward Voltage

• Various Dual Pair Configurations

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Forward Surge Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IFSM

TJ, Tstg

250

-65 to +150

500

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

TYP

MAX

BVR

trr

VR=50V

IR=10μA

IF=1.0mA

VR=0, f=1.0MHz

IR=IF=10mA, Irr=1.0mA, RL=100Ω

395

410

2.0

5.0

200

UNITS

R2 (18-January 2010)

CMLD6263A_10 Related Products

	CMLD6263A_10	CMLD6263A	CMLD6263C
Description	0.015 A, 70 V, 4 ELEMENT, SILICON, SIGNAL DIODE	0.015 A, 70 V, 4 ELEMENT, SILICON, SIGNAL DIODE	0.015 A, 70 V, 4 ELEMENT, SILICON, SIGNAL DIODE
Number of terminals	6	6	6
Number of components	4	4	4
surface mount	Yes	YES	YES
Terminal form	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL
Diode component materials	SILICON	SILICON	SILICON
Diode type	SIGNAL DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum reverse recovery time	0.0050 us	0.005 µs	0.005 µs
Maximum repetitive peak reverse voltage	70 V	70 V	70 V
Is it lead-free?	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible
package instruction	-	PICOMINI-6	R-PDSO-F6
Contacts	-	6	6
Reach Compliance Code	-	_compli	_compli
ECCN code	-	EAR99	EAR99
Configuration	-	2 BANKS, COMMON ANODE, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Maximum forward voltage (VF)	-	0.41 V	0.41 V
JESD-30 code	-	R-PDSO-F6	R-PDSO-F6
JESD-609 code	-	e0	e0
Maximum operating temperature	-	150 °C	150 °C
Minimum operating temperature	-	-65 °C	-65 °C
Maximum output current	-	0.015 A	0.015 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	-	0.25 W	0.25 W
Certification status	-	Not Qualified	Not Qualified
Maximum reverse current	-	0.2 µA	0.2 µA
Reverse test voltage	-	50 V	50 V
technology	-	SCHOTTKY	SCHOTTKY
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1
