MBB SERIES
PB6FG—XXXXE2:1 1KV ISOLATED 1 W REGULATED SINGLE OUTPUT DIP16
Available Inputs:
9 – 18 VDC Wide Input, 18 – 36 VDC Wide Input
Available Outputs:
3.3, 5 and 12 VDC for 9 - 18 VDC Input
Available Outputs:
5, 12 and 15 VDC for 18 - 36 VDC Input
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
12 VDC, 9~18 VDC, 24 VDC, 18~36 VDC
Filter
Pi Filter
Isolation Specifications
Rated voltage
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Derating
Physical Characteristics
Case material
1000 VDC
1000 MOhm
80 pF typ.
+/- 1 %, max.
75 mV p-p, typ.
Continuous and Auto - Restart
+/- 0,5 % max.
+/- 0,5 % max.
+/- 0,02 % / °C
72 % to 75 %
150 KHz, typ.
- 25° C to + 71° C
- 55 °C to + 125 °C
See graph
Non conductive black plastic
Examples of Partnumbers/Modelcode
PART
NO.
INPUT
VOLTAGE
(VDC)
INPUT
CURRENT
FULL
LOAD
Typ.
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL LOAD
(% TYP.)
PB6FG-123R3E2:1
PB6FG-1205E2:1
PB6FG-1212E2:1
PB6FG-2405E2:1
PB6FG-2412E2:1
PB6FG-2415E2:1
9 - 18
9 - 18
9 - 18
18 - 36
18 - 36
18 - 36
115
114
135
57
68
67
3.3
5
12
5
12
15
300
200
100
200
100
80
72
73
74
73
73
75
MBB SERIES
PB6FG—XXXXE2:1 1KV ISOLATED 1 W REGULATED SINGLE OUTPUT DIP16

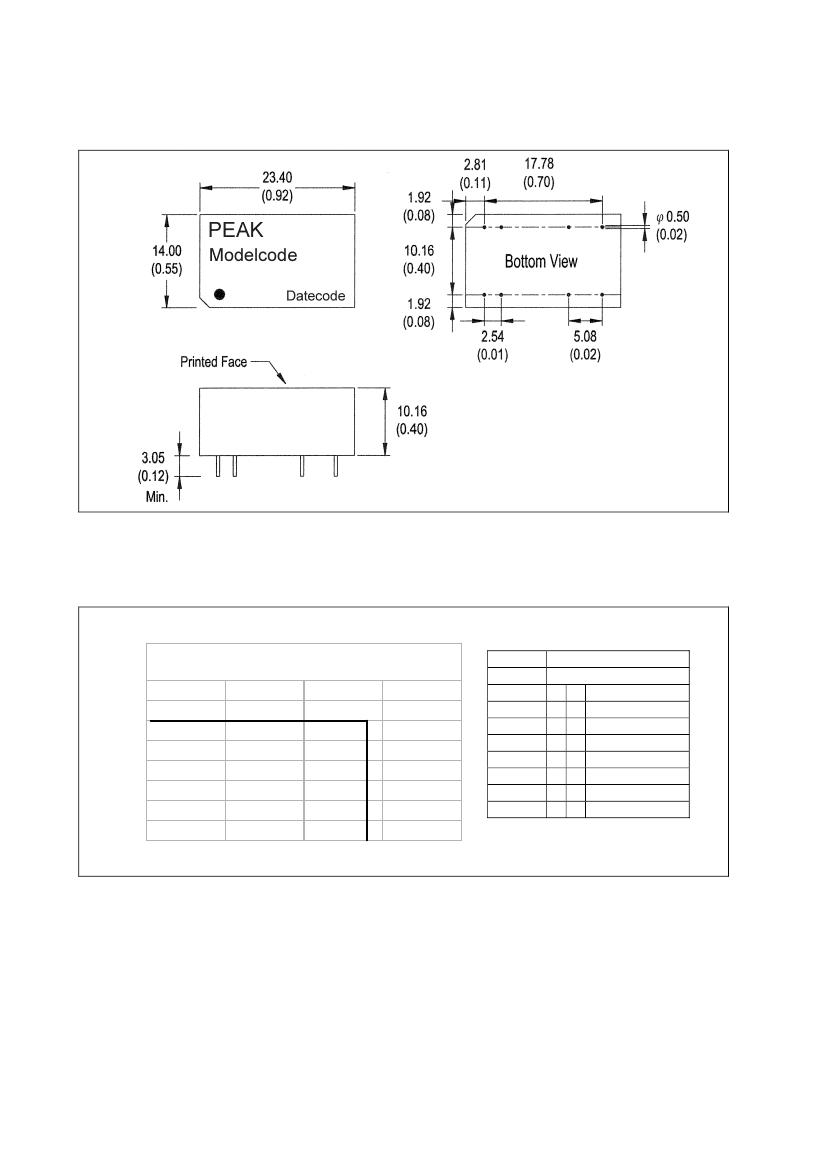

Dimensions
Derating Graph and Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
71
1.00 W
Safe Operating Area
Pin
#
1
2
6
8
9
11
15
16
Connection
Single
- V Input
- V Input
NC
NC
+ V Output
- V Output
+ V Input
+ V Input
-25
0
40
80
100
Specification can be changed without notice.
REV:2 / 09.2001
Copyright PEAK electronics GmbH
