CMPD6001C: DescriptionSURFACE MOUNT LOW LEAKAGE SILICON SWITCHING DIODE; CategoryDiscrete semiconductor diode; File Size655KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMPD6001C Overview

SURFACE MOUNT LOW LEAKAGE SILICON SWITCHING DIODE

CMPD6001C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT-23
Contacts	3
Reach Compliance Code	_compli
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.35 W
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	3 µs
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

CMPD6001

CMPD6001A

CMPD6001C

CMPD6001S

SURFACE MOUNT

LOW LEAKAGE

SILICON SWITCHING DIODE

w w w. c e n t r a l s e m i . c o m

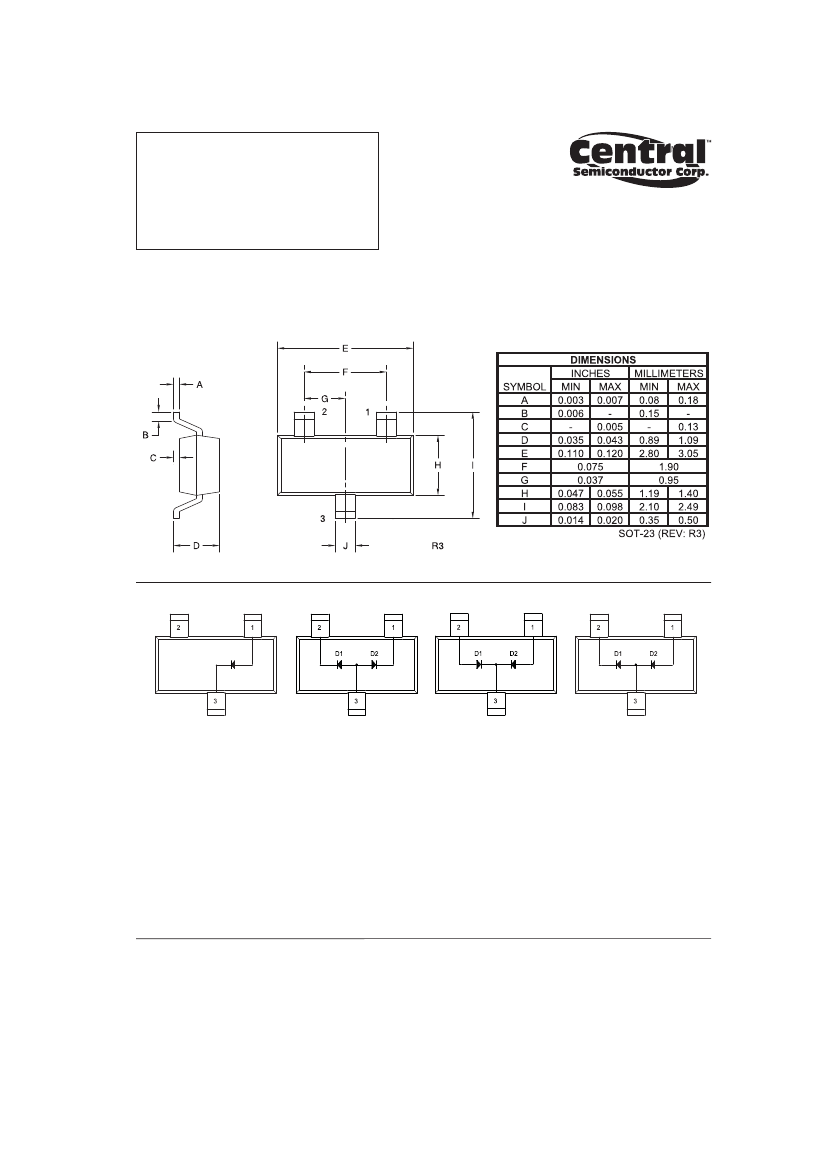

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPD6001 series

types are silicon switching diodes manufactured by

the epitaxial planar process, designed for switching

applications requiring an extremely low leakage diode.

SOT-23 CASE

The following

CMPD6001

CMPD6001A

CMPD6001C

CMPD6001S

configurations are available:

SINGLE

DUAL, COMMON ANODE

DUAL, COMMON CATHODE

DUAL, IN SERIES

MARKING

SYMBOL

VR

VRRM

IF

IFRM

IFSM

PD

TJ, Tstg

Θ

JA

CODE:

ULO

ULA

ULC

ULS

UNITS

V

mA

A

mW

°C

°C/W

MAXIMUM RATINGS:

(TA=25°C)

Continuous Reverse Voltage

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=1.0μs

Peak Forward Surge Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

75

100

250

4.0

1.0

350

-65 to +150

357

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

MAX

IR

VR=75V

500

BVR

IR=100μA

100

VF

CT

trr

IF=1.0mA

IF=10mA

IF=100mA

VR=0, f =1.0MHz

IR=IF=10mA, RL=100Ω, Rec. to 1.0mA

0.85

0.95

1.1

2.0

3.0

UNITS

pA

V

pF

μs

R4 (27-January 2010)
