Features
■
■
■
■
■
■
Applications
■
■
■
■
Patent #6,327,129
Board Mount
230 V, 250 V, 330 V surge protector
UL recognized
Economical, reliable choice for all paired
copper communications circuits
Solid-state responsiveness combined
with robust GDT
Telecommunications
High speed data networks
Hybrid fiber-coax networks
Broadband powered networks

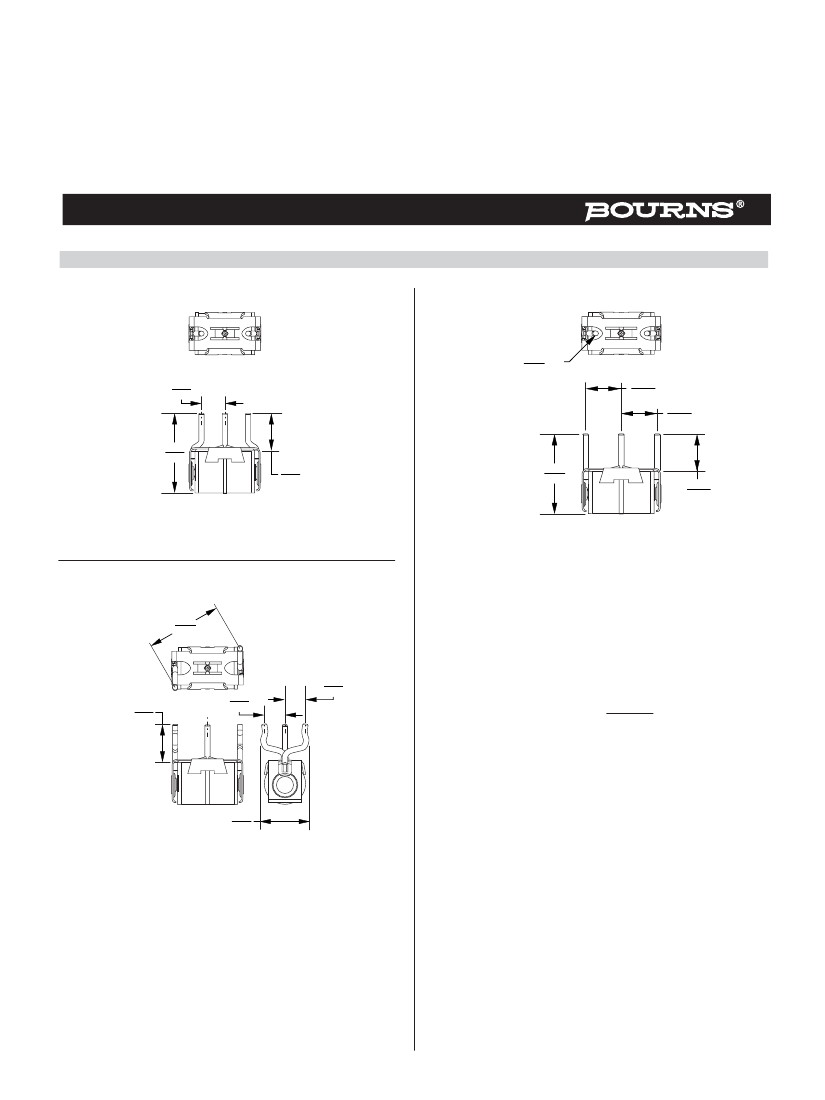

MSP
®
Series - Multi-Stage Protector Sub-Assembly
Bourns MSP
®
Series is a new generation of telecommunications protector designed to be the best all-around protection choice on both today
and tomorrow’s copper pair based communications circuits. It combines the strengths of gas tube and solid-state protectors while eliminating
their weaknesses. Bourns’ new MSP
®
protector series is the synergistic integration of three advanced protection technologies; sixth generation
gas tube, precision matched MOVs, and switch-grade failshort. Working together, these three technologies meet the challenges of the evolv-
ing high-speed network.
Bourns MSP
®
Series can be used universally on POTS, ISDN, ADSL, SDSL, HDSL, RADSL, VDSL, 10BaseT, and T1 carrier. Bourns MSP
®
Series is the most economical, reliable, and best performing choice for all paired copper communications circuits.
Characteristics
Test Methods per IEEE C62.31, UL 497, CSA C22.2, Telcordia GR 1361and applicable sections of Telcordia GR 974.
Model No.
Characteristic
DC Breakdown @ 100-2000 V/s
AC Breakdown @ 60 Hz
Impulse Breakdown
100 V/µs
1000 V/µs
2026-23-CxxM1xx
184 to 276 V
184 to 276 V
450 V
500 V
2026-25-CxxM1xx
200 to 300 V
200 to 300 V
475 V
525 V
2026-33-CxxM1xx
300 to 400 V
300 to 400 V
600 V
650 V
Insulation Resistance ........................................ 100 Vdc ............................................................................... > 1 GΩ
Insertion Loss .................................................... 10 MHz ................................................................................... 0.01 dB
Capacitance Line to Line .................................. 1 MHz ..................................................................................... 10 pF typical
Capacitance Line to Ground ............................. 1 MHz ..................................................................................... 20 pF typical
Impulse Reset (DC Extinguishing) ..................... 52 V, 260 mA ....................................................................... < 10 ms
135 V, 200 mA ..................................................................... < 10 ms
1
Impulse Life Characteristics ............................. 100 A, 10/1000
µs
............................................................... > 3000 operations
2
300 A, 10/1000
µs
............................................................... > 1000 operations
2
500 A, 10/1000
µs
............................................................... > 1000 operations
3
2000 A, 10/250
µs
............................................................... > 100 operations
2
5000 A, 20/100
µs
............................................................... > 10 operations
2
20000 A, 8/20
µs
................................................................. > 10 operations
2,4
AC Life Characteristics ..................................... 0.5 A rms continuous .......................................................... > 30 seconds
1 A rms, 1 second, 600 ft. cable ......................................... > 60 operations
1 A rms, 1 second, 1 mile cable .......................................... > 60 operations
10 A rms, 1 second ............................................................. > 20 operations
65 A rms, 11 cycles ............................................................. > 1 operation
3
120 A rms, 0.1 second ........................................................... 1 operation
200 A rms, 11 cycles .............................................................. 1 operations
3,5
Life Test Criteria ................................................ Insulation Resistance Throughout the Life Test ..................... 100 MΩ
Life Test Failures ..................................................................... 0.0 %
Failures During Environmental Cycling w/Surges .................. 0.0 %
Failsafe (vented or non-vented gas tube) ....................................................................................................... > 30 A rms, simultaneously
Notes:
•
UL, cUL Listed.
1
2
3
4
5
Surpasses Telcordia GR 974 (network applied).
Exceeds Telcordia GR 1361.
RUS (REA) PE-80.
Total current equally divided between each line to ground.
Protector may short to ground.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
