CTLSH3-30M833_10: DescriptionSURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER; File Size670KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet View All

CTLSH3-30M833_10 Overview

SURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER

Preview

Download Datasheet

View All

CTLSH3-30M833

SURFACE MOUNT

LOW VF

SILICON SCHOTTKY RECTIFIER

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CTLSH3-30M833

is a high performance 3.0 Amp Silicon Schottky

Rectifier designed for applications where small size

and operational efficiency are prime requirements. With

a maximum power dissipation of 4.5W, this leadless

package design has a watts per unit area at least twice

that of equivalent packaged devices.

MARKING CODE: CHA1

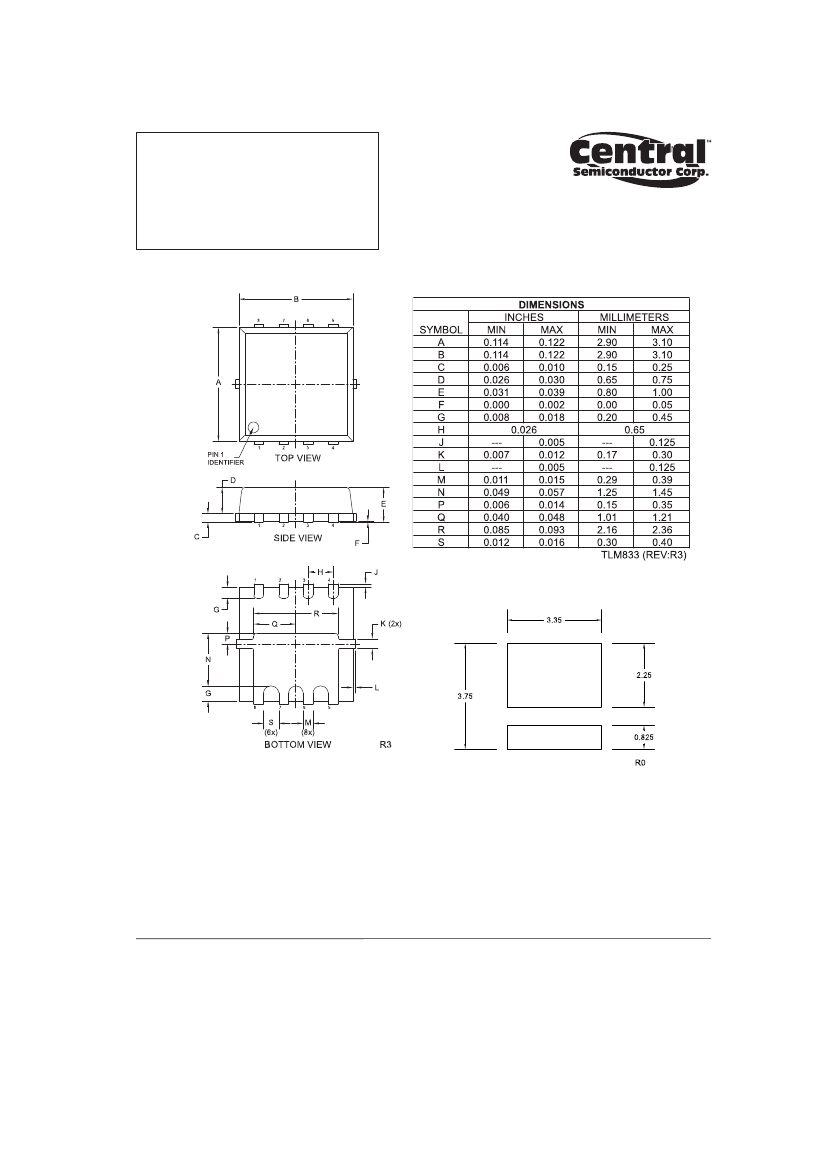

TLM833 CASE

•

Device is

Halogen Free

by design

FEATURES:

• High Current (IF=3.0A)

• Low Leakage/Low VF

• High Thermal Efficiency

• 3 x 3mm TLM™ case

SYMBOL

IFSM

TJ, Tstg

UNITS

°C

°C/W

UNITS

0.30

0.35

0.40

0.45

MAXIMUM RATINGS:

(TA=25°C)

Continuous Reverse Voltage

Average Forward Current

Peak Forward Surge Current, tp=8.3ms

Power Dissipation (Note 1)

Power Dissipation (Note 2)

Power Dissipation (Note 3)

Operating and Storage Junction Temperature

Thermal Resistance (Note 1)

Thermal Resistance (Note 2)

Thermal Resistance (Note 3)

3.0

4.5

4.0

2.5

-65 to +150

27.78

31.25

50.00

MAX

1.0

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

VR=30V

BVR

IR=5.0mA

IF=500mA

IF=1.0A

IF=2.0A

IF=3.0A

Notes: (1) Ceramic or aluminum core PC Board with copper mounting pad area of 75 mm

(2) FR-4 Epoxy PC Board with copper mounting pad area of 75 mm

(3) FR-4 Epoxy PC Board with copper mounting pad area of 25 mm

R6 (17-February 2010)
