IL10 datasheet, PDF - EEWORLD Datasheet

IL10: DescriptionTransistor Output Optocoupler, 1-Element, 10000V Isolation; CategoryLED optoelectronic/LED photoelectric; File Size79KB，2 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

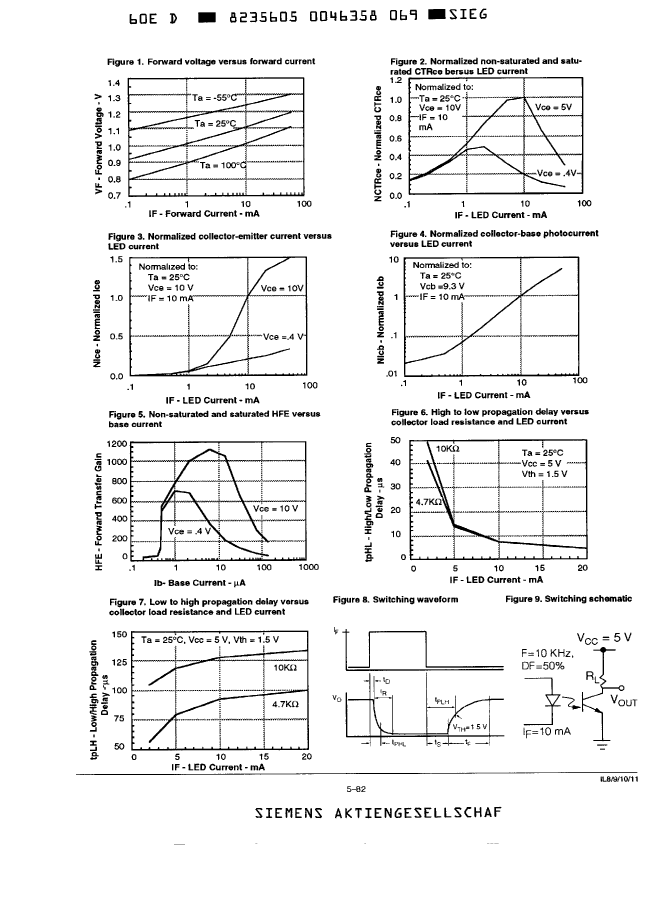

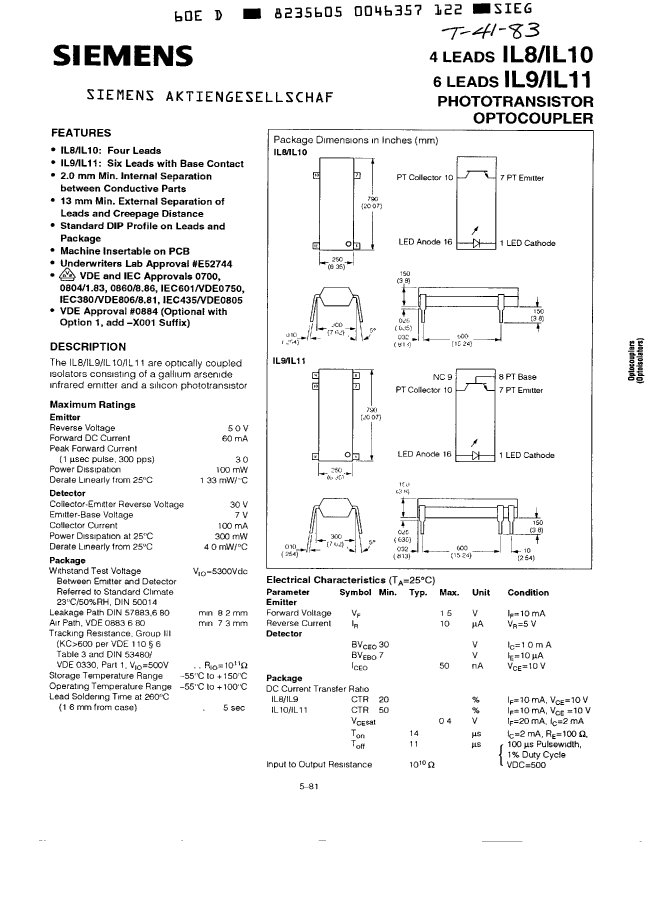

IL10 Overview

Transistor Output Optocoupler, 1-Element, 10000V Isolation

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIEMENS
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Nominal current transfer ratio	50%
Maximum dark power	50 nA
Maximum forward current	0.06 A
Maximum insulation voltage	10000 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

	IL10	IL11	IL9
Description	Transistor Output Optocoupler, 1-Element, 10000V Isolation	Transistor Output Optocoupler, 1-Element, 10000V Isolation	Transistor Output Optocoupler, 1-Element, 10000V Isolation
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	VDE APPROVED, UL APPROVED	VDE APPROVED, UL APPROVED
Coll-Emtr Bkdn Voltage-Min	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	50%	50%	20%
Maximum dark power	50 nA	50 nA	50 nA
Maximum forward current	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	10000 V	10000 V	10000 V
JESD-609 code	e0	e0	e0
Number of components	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	SIEMENS	SIEMENS	-
Is Samacsys	-	N	N
Base Number Matches	-	1	1
