APC30-182K-RC: Description1 ELEMENT, 1800 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size439KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

APC30-182K-RC Overview

1 ELEMENT, 1800 uH, GENERAL PURPOSE INDUCTOR

APC30-182K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

RoHS

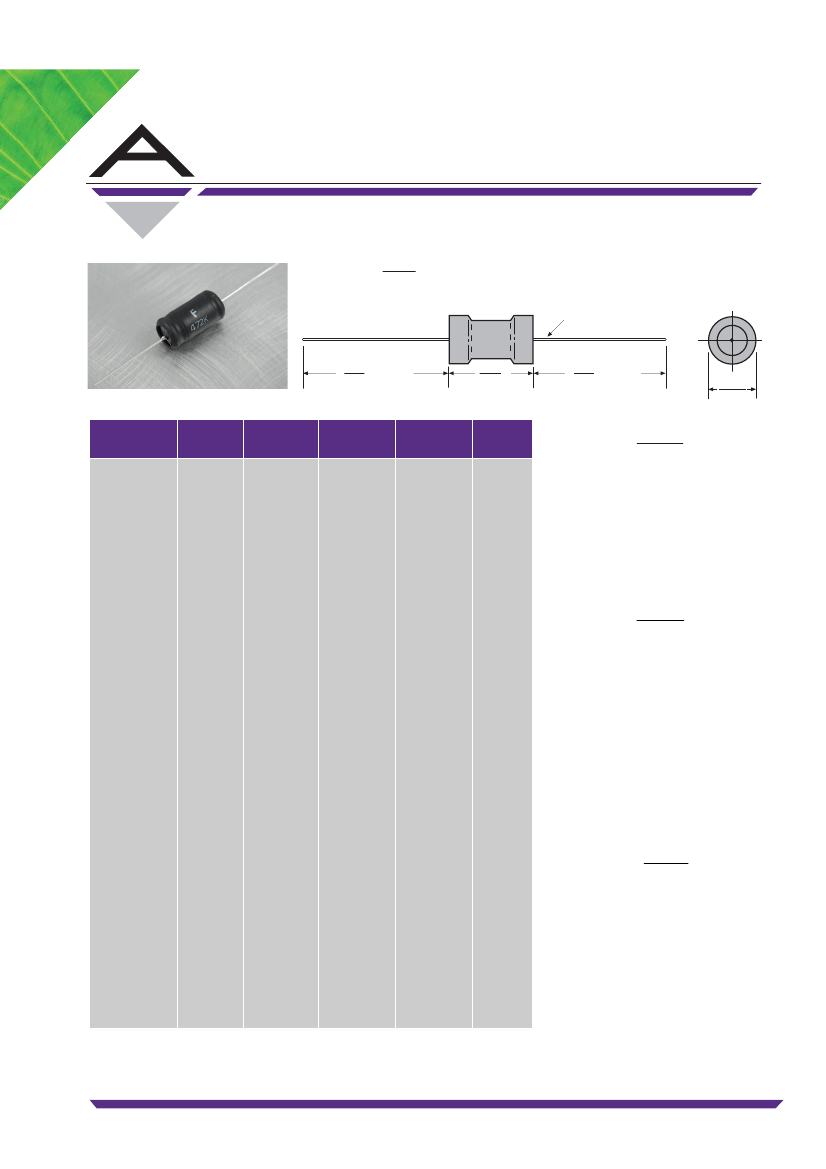

Axial Power Chokes

APC30

Dimensions:

Inches

(mm)

20 AWG

1.15

NOMINAL

(29)

0.92

(23.37)

1.15

NOMINAL

(29)

0.47

(11.94)

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

DCR

Max.

(Ω)

Saturation

Current

(A)

Rated

Current

(A)

Features

•

Axial pre-tinned leads.

•

Protected with UL shrink tubing.

•

Non standard values and tolerances

available.

•

High saturation core material used for

high inductance and low DCR.

Electrical

Inductance:

Measured at 1KHz with no

DC current.

Tolerance:

10% over entire inductance

range. Available in tighter tolerances.

Current Rating:

Based on Inductance drop

of < 10% of Initial value.

Operating Temp:

-55ºC to + 125ºC

Test Procedures:

L measured on CH-100

@ 1KHz DCR measured on CH-301.

Physical

Packaging:

200 pieces per tape and

reel. 50 pieces per bag

Marking:

EIA Inductance Code.

For Tape and Reel packaging please

add ”-TR” to the part number.

APC30-3R9K-RC

APC30-4R7K-RC

APC30-5R6K-RC

APC30-6R8K-RC

APC30-8R2K-RC

APC30-100K-RC

APC30-120K-RC

APC30-150K-RC

APC30-180K-RC

APC30-220K-RC

APC30-270K-RC

APC30-330K-RC

APC30-390K-RC

APC30-470K-RC

APC30-560K-RC

APC30-680K-RC

APC30-820K-RC

APC30-101K-RC

APC30-121K-RC

APC30-151K-RC

APC30-181K-RC

APC30-221K-RC

APC30-271K-RC

APC30-331K-RC

APC30-391K-RC

APC30-471K-RC

APC30-561K-RC

APC30-681K-RC

APC30-821K-RC

APC30-102K-RC

APC30-122K-RC

APC30-152K-RC

APC30-182K-RC

APC30-222K-RC

APC30-272K-RC

APC30-332K-RC

APC30-392K-RC

APC30-472K-RC

APC30-562K-RC

APC30-682K-RC

APC30-822K-RC

APC30-103K-RC

APC30-123K-RC

APC30-153K-RC

APC30-183K-RC

APC30-223K-RC

APC30-273K-RC

APC30-333K-RC

APC30-393K-RC

APC30-473K-RC

APC30-563K-RC

APC30-683K-RC

APC30-823K-RC

APC30-104K-RC

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

12000

15000

18000

22000

27000

33000

39000

47000

56000

68000

82000

100000

10

.007

.008

.011

.013

.017

.019

.022

.023

.026

.027

.032

.033

.035

.037

.047

.060

.090

.113

.129

.150

.162

.202

.212

.281

.380

.420

.548

.665

.884

1.04

1.18

1.56

2.00

2.06

2.63

2.75

3.19

3.92

5.69

6.32

7.30

9.99

11.2

15.2

16.8

18.6

26.7

29.0

31.8

42.6

46.9

64.9

71.7

15.5

13.9

12.6

11.6

9.89

8.70

8.21

7.34

6.64

6.07

5.36

4.82

4.36

3.98

3.66

3.31

3.10

2.79

2.54

2.22

1.98

1.89

1.63

1.51

1.39

1.24

1.17

1.05

0.97

0.87

0.79

0.70

0.64

0.58

0.53

0.47

0.43

0.39

.359

.322

.293

.266

.257

.230

.210

.190

.171

.155

.143

.131

.119

.108

.098

.089

4.00

3.20

2.50

2.00

1.60

1.20

1.00

0.80

0.60

0.50

0.40

.315

.250

.160

.130

.100

.083

.067

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 09/23/10

www.alliedcomponents.com
