Part Number:
XNM1LUY12D23.5
T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD
INDICATOR
Features
LED FIRMLY HELD BY SPACER-NO ADDITIONAL
FIXTURING OR GLUEING NECESSARY.
SUITABLE FOR BACK PANEL ILLUMINATION,
CIRCUIT BOARD INDICATOR, LED INDICATOR.
UL RATING:94V-0.
HOUSING MATERIAL:TYPE 66 NYLON.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
Lead Solder Temperature
[5mm Below Package Base]
V
R
I
F
i
FS
P
T
T
A
Tstg
UY
(GaAsP/GaP)
5
30
140
75
-40 ~ +85
-40 ~ +85
260°C For 3 Seconds
260°C For 5 Seconds
Operating Characteristics
(T
A
=25°C)
Unit
V
mA
mA
mW
°C
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=10mA)
Wavelength Of Dominant
Emission (Typ.)
(I
F
=10mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
UY
(GaAsP/GaP)
1.95
2.5
10
Unit
V
V
uA
λ
P
590
nm
λ
D
588
nm
Δλ
35
nm
C
20
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=10mA)
mcd
min.
typ.
19
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
XNM1LUY12D23.5
Yellow
GaAsP/GaP
Yellow Diffused
5
590
30
°
Published Date : JAN 23,2008
Drawing No : XDSA7904
V2
Checked : B.L.LIU
P.1/4
Part Number:
XNM1LUY12D23.5

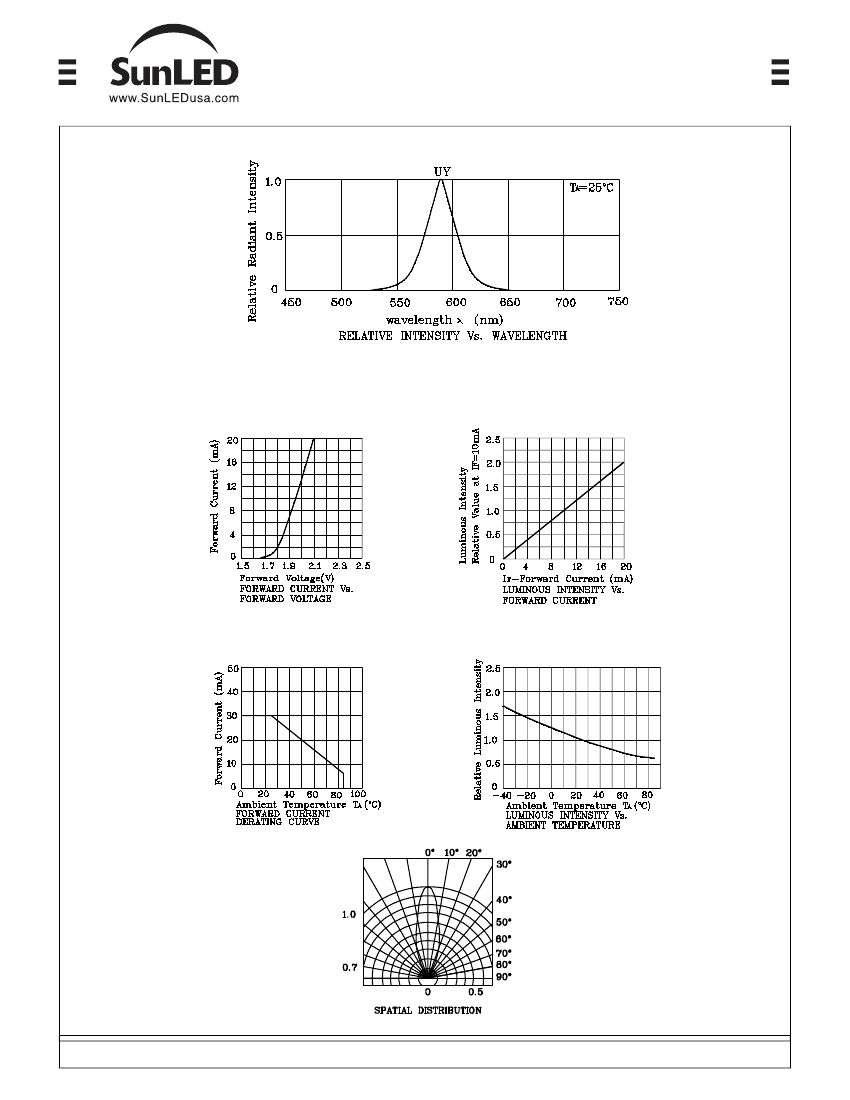

T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD
INDICATOR
UY
Published Date : JAN 23,2008
Drawing No : XDSA7904
V2
Checked : B.L.LIU
P.2/4
Part Number:
XNM1LUY12D23.5
T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD
INDICATOR
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : JAN 23,2008
Drawing No : XDSA7904
V2
Checked : B.L.LIU
P.3/4
Part Number:
XNM1LUY12D23.5
T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD
INDICATOR

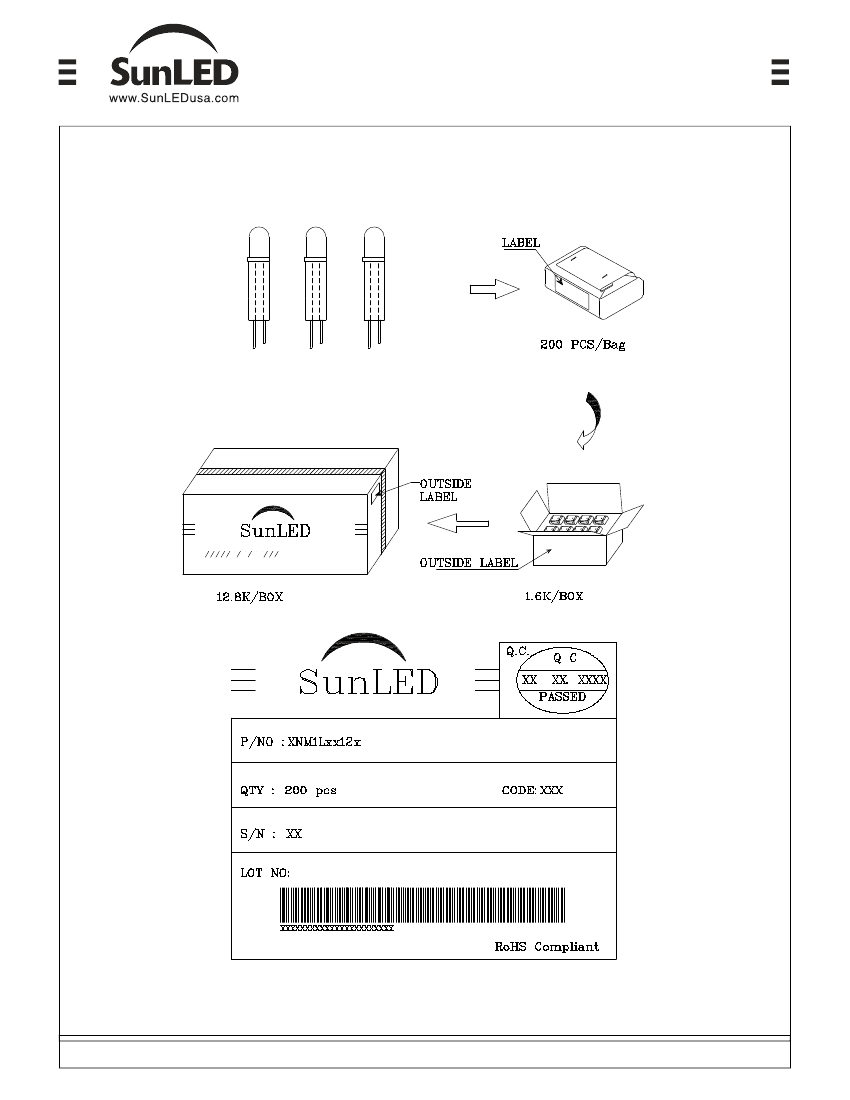

PACKING & LABEL SPECIFICATIONS
XNM1LUY12D23.5
Published Date : JAN 23,2008
Drawing No : XDSA7904
V2
Checked : B.L.LIU
P.4/4
