3GP576D-80T-38.880MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GP576D-80T-38.880MHZ

3GP576D-80T-38.880MHZ: DescriptionOscillator,; CategoryPassive components oscillator; File Size262KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric Compare View All

3GP576D-80T-38.880MHZ Overview

Oscillator,

3GP576D-80T-38.880MHZ Parametric

Parameter Name	Attribute value
Maker	Euroquartz
Reach Compliance Code	compliant

3GP576D-80T-38.880MHZ Preview

EURO

QUARTZ

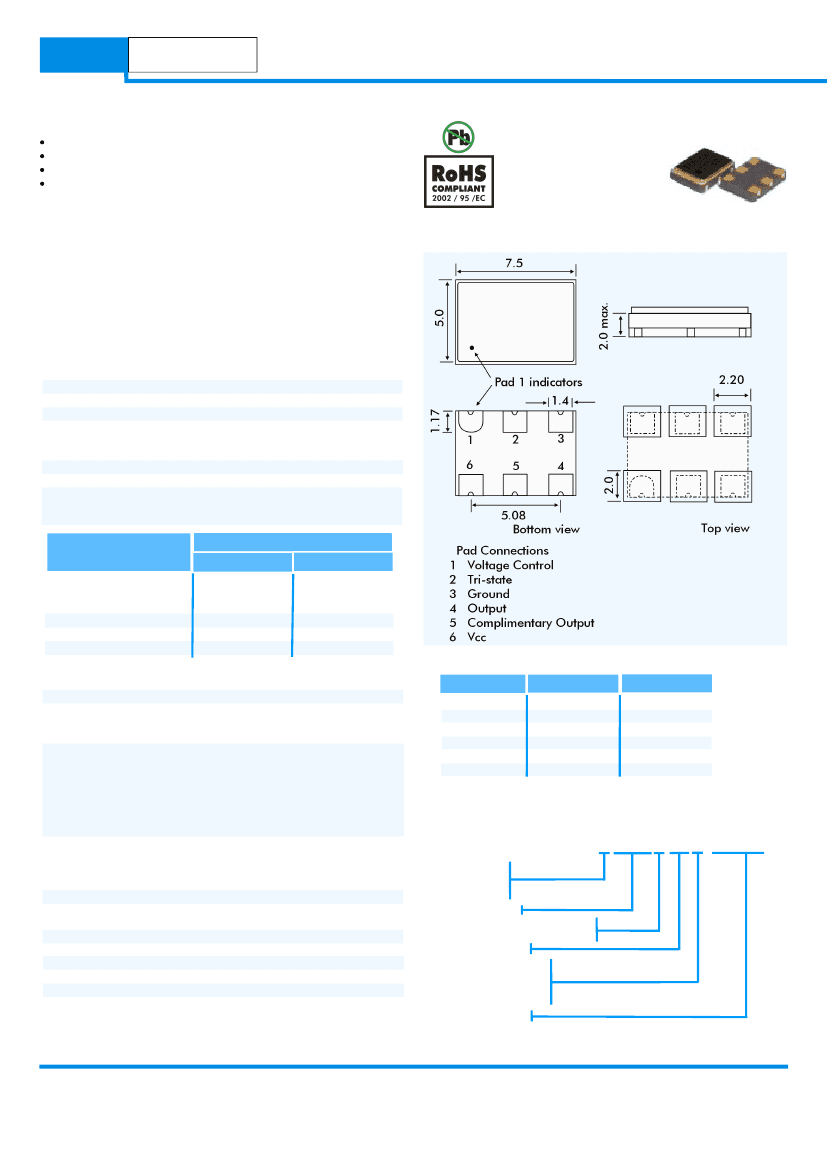

Stable and clean 100KH differential signals

Uses Inverted MESA, fundamental-mode crystals

No PLL, multiplier or overtone-mode crystals used

Very low jitter <1ps

Miniature 6 pad package, RoHS Compliant

GP576 Series PECL VCXOs

7 x 5 x 2mm SMD Low Jitter PECL VCXO

DESCRIPTION

series VCXOs use fundamental mode (inverted mesa) crystal to

achieve wide frequency deviation with stable and clean signals. No

multiplier, overtone crystal or phase lock loop technique is used. As a

result Jitter is as low as for instance 1ps for the 155.520 MHz for

SONET/SDH application. Additionally, the inherent advantages of

differential PECL ECL signal transmission provide improved noise

immunity making the system less susceptible to ground noise.

SPECIFICATION

Frequency Range:

Output Waveform:

Standard Frequencies:

OUTLINE & DIMENSIONS

Output Load:

Frequency Stability:

Input Voltage (Vcc)

LVPECL:

PECL:

Supply Voltage

Dependant Parameters

Initial Frequency Accuracy

To tune to nominal

frequency with:

Output Voltage HIGH ‘1’:

Output Voltage LOW ‘0’:

Rise/Fall Time

Current Consumption:

Duty Cycle:

Integrated Jitter RMS:

12kHz to 20MHz:

SSB Phase Noise

19.440MHz to 250MHz

PECL 100K square wave

38.880, 44.736, 50.0, 77.76,

100.0, 106.25, 125.0, 155.52,

166.6286, 200.0, 207.360 and

212.50MHz

(Partial List)

15pF

see table

+3.3 VDC ±5%

+5.0 VDC ±5%

Supply Voltage

+3.3 Volts ±5%

+5.0 Volts ±5%

Vc=+1.65V±0.2V

2.27V minimum

1.68V maximum

5ns maximum

Vc=+2.5V±0.2V

4.5V minimum

3.35V maximum

7ns maximum

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

PART NUMBERING

Example:

Supply Voltage

3 = +3.3V

5 = +5.0V

Series Designator

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

80mA max.

(Frequency dependant)

50%±2% typical, 50%±5% max.

0.4ps typical, 0.5ps max.

(Example at 155.250MHz)

10Hz offset:

100Hz offset:

1kHz offset:

10kHz offset:

100kHz offset:

1MHz offset:

-50dBc

-80dBc

-110dBc

-135dBc

-145dBc

Frequency Deviation Range

Supply = 3.3 V:

Supply = 5.0 V:

±80ppm

±100ppm

(Wider pull range available)

Linearity:

±10% max.

Slope Polarity:

Monotonic and Positive

(An increase of control voltage increases output freq.)

Start-up Time:

10ms max.

Input Impedance:

>10kOhm

3dB Modulation Bandwidth:

10Hz minimum

Ageing:

±2ppm year max at 25°C

Storage Temperature:

-55° to +100°C

Tristate function (Pad 2):

PECL output is disabled and Complimentary output

remains high when tristate pad is HIGH. Both outputs

are HIGH when Tristate pin is LOW.

3G576B-80N-27.000

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
