BYT28B-300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYT28B-300

BYT28B-300: DescriptionRectifier Diode, 5A, 300V V(RRM); CategoryDiscrete semiconductor diode; File Size108KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BYT28B-300 Overview

Rectifier Diode, 5A, 300V V(RRM)

BYT28B-300 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknown
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
Maximum non-repetitive peak forward current	60 A
Maximum operating temperature	150 °C
Maximum output current	5 A
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	YES

Preview

Download Datasheet

View All

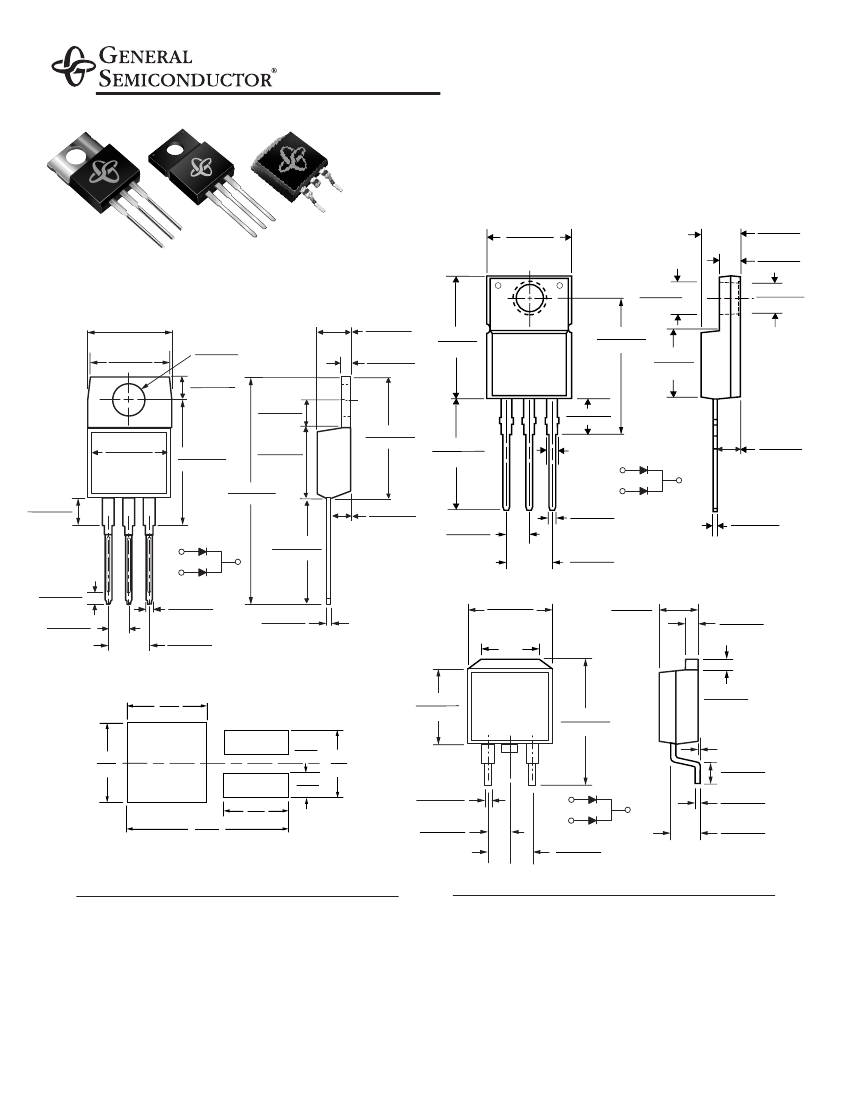

BYT28, BYT28F, BYT28B

UG10GCT, UGF10GCT, UGB10GCT

Series

Dual Ultrafast Soft Recovery Rectifier

uct

rod

TO-220AB (BYT28, UG10 Series)

0.415 (10.54) MAX.

0.154 (3.91)

0.370 (9.40)

0.360 (9.14)

0.148 (3.74)

0.113 (2.87)

0.103 (2.62)

0.145 (3.68)

0.135 (3.43)

0.410 (10.41)

0.390 (9.91)

0.160 (4.06)

0.140 (3.56)

0.603 (15.32)

0.573 (14.55)

0.055 (1.39)

0.045 (1.14)

0.185 (4.70)

0.175 (4.44)

Reverse Voltage

300 to 400V

Forward Current

10A

Reverse Recovery Time

35ns

ITO-220AB (BYT28F, UGF10 Series)

0.405 (10.27)

0.383 (9.72)

0.188 (4.77)

0.172 (4.36)

0.110 (2.80)

0.100 (2.54)

0.140 (3.56)

DIA.

0.130 (3.30)

0.131 (3.39)

0.122 (3.08)

0.600 (15.5)

0.580 (14.5)

0.676 (17.2)

0.646 (16.4)

0.350 (8.89)

0.330 (8.38)

0.191 (4.85)

0.171 (4.35)

0.560 (14.22)

0.530 (13.46)

0.060 (1.52)

PIN 1

PIN 3

PIN 2

CASE

0.635 (16.13)

0.625 (15.87)

0.350 (8.89)

0.330 (8.38)

0.110 (2.80)

0.100 (2.54)

1.148 (29.16)

1.118 (28.40)

0.110 (2.79)

0.100 (2.54)

0.560 (14.22)

0.530 (13.46)

0.105 (2.67)

0.095 (2.41)

0.037 (0.94)

0.027 (0.69)

0.022 (0.55)

0.014 (0.36)

PIN 1

PIN 3

PIN 2

CASE

0.205 (5.20)

0.195 (4.95)

0.105 (2.67)

0.095 (2.41)

0.104 (2.65)

0.096 (2.45)

0.035 (0.90)

0.028 (0.70)

0.205 (5.20)

0.195 (4.95)

0.022 (0.56)

0.014 (0.36)

Dimensions in inches

and (millimeters)

TO-263AB (BYT28B, UGB10 Series)

0.411 (10.45)

0.380 (9.65)

0.245 (6.22)

MIN

0.190 (4.83)

0.160 (4.06)

0.055 (1.40)

0.045 (1.14)

Mounting Pad Layout TO-263AB

0.33

(8.38)

0.08

(2.032) 0.24

(6.096)

0.04

(1.016)

0.63

(17.02)

0.12

(3.05)

0.360 (9.14)

0.320 (8.13)

0.624 (15.85)

0.591 (15.00)

0.055 (1.40)

0.047 (1.19)

0.42

(10.66)

0-0.01 (0-0.254)

0.110 (2.79)

0.090 (2.29)

0.037 (0.940)

0.027 (0.686)

0.105 (2.67)

0.095 (2.41)

PIN 1

PIN 2

K - HEATSINK

0.021 (0.53)

0.014 (0.36)

0.140 (3.56)

0.110 (2.79)

0.205 (5.20)

0.195 (4.95)

Mechanical Data

Case:

JEDEC TO-220AB, ITO-220AB & TO-263AB

molded plastic body

Terminals:

Plated leads, solderable per

MIL-STD-750, Method 2026

Polarity:

As marked

Mounting Position:

Any

Mounting Torque:

10 in-lbs maximum

Weight:

0.08 ounce, 2.24 grams

Features

• Plastic package has Underwriters Laboratories

Flammability Classification 94V-0

• Ideally suited for free wheeling diode power factor

correction applications

• Soft recovery characteristics

• Excellent high temperature switching

• Optimized to reduce switching losses

• High temperature soldering guaranteed: 250°C/10

seconds at terminals

• Glass passivated chip junction

7/20/00

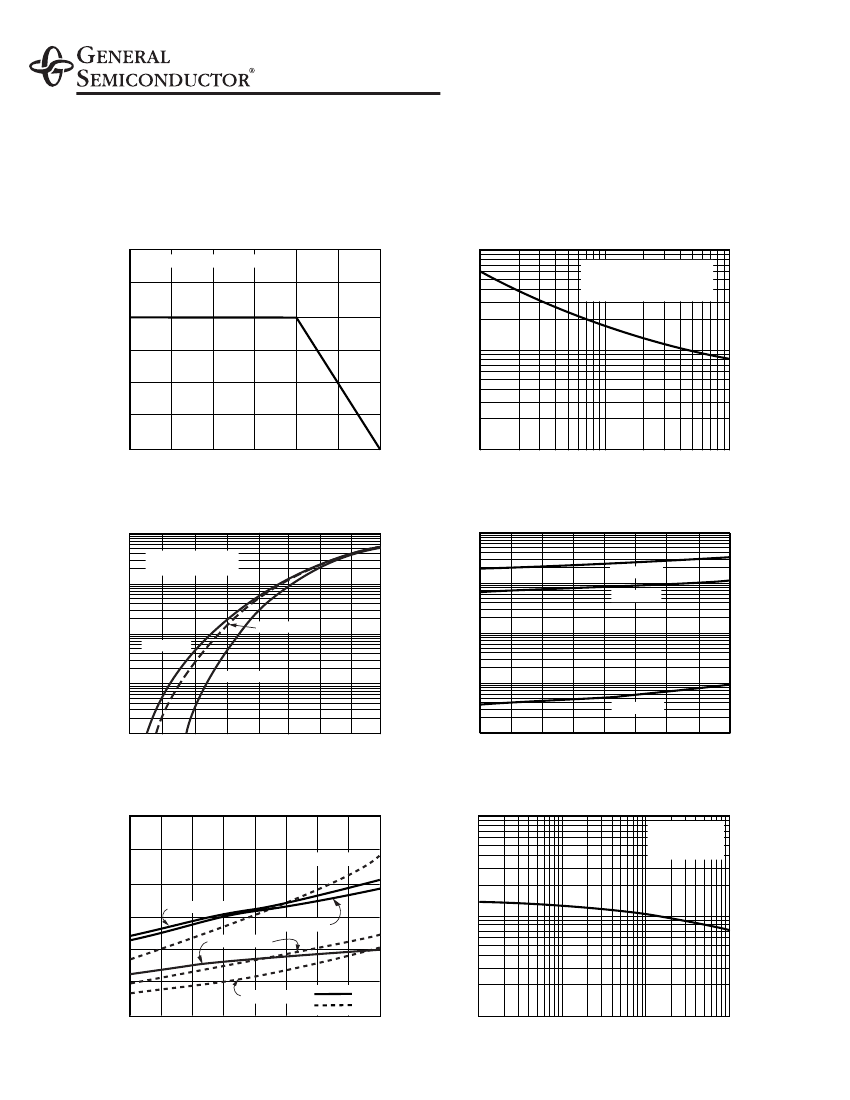

BYT28B-300 Related Products

	BYT28B-300	UGF10FCT
Description	Rectifier Diode, 5A, 300V V(RRM)	Rectifier Diode, 1 Phase, 2 Element, 5A, 300V V(RRM), Silicon, TO-220AB, PLASTIC, ITO-220AB, 3 PIN
Reach Compliance Code	unknown	unknown
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum non-repetitive peak forward current	60 A	60 A
Maximum operating temperature	150 °C	150 °C
Maximum output current	5 A	5 A
Maximum repetitive peak reverse voltage	300 V	300 V
Maximum reverse recovery time	0.05 µs	0.05 µs
surface mount	YES	NO
