852 Series
Presentation

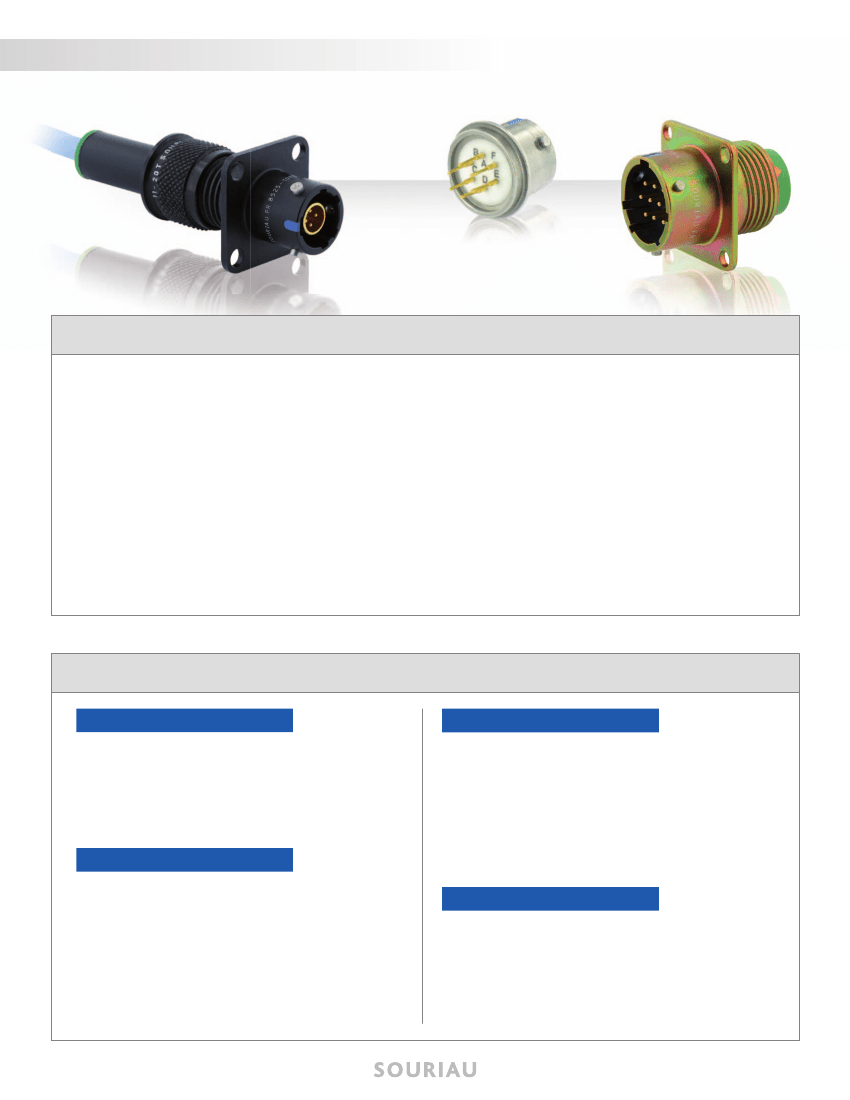

The 852 range is a lightweight version of MIL-C-26482 Series 2 connectors. Locking is achieved by a bayonet quick-release system.
Hermetic stainless steel version is available.
852 design characteristics, performances and reliabillty meet the requirements of the following applications:
• civil and military aeronautics
• ballistic and tactical missiles
• armored vehicle equipment
• spacecraft equipment
• civil, military, telecommunications and radars
• weapons
Plugs, receptacles and accessories are manufactured from stainless steel or light aluminum alloy with black anodized (non-conductive plating),
nickel plating (conductive plating), olive drab or yellow cadmium (conductive plating).
Gold plated crimp contacts are removable from the rear and retained by metallic clips. Mini-coax and thermocouple contacts may also be
installed instead of standard contacts.
The hard insulator is a thermoplastic material. The insulators are fluid resistant as specified by MIl-C-26482G Series Il / HE302 / En3646,
including Standard norms coming from earlier norms nFl54130 / nAS 1599 / ln 29504.
Front and rear silicone elastomer parts provide an effective seal between connector and cable and also at connector interface.
