0603 Package Chip LED (0.8 mm Height)
19-21/W1D-ANPHY/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-Free.
Descriptions
․The
19-21 SMD LED is much smaller than lead
frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Automotive:
backlighting in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
19-21/W1D-ANPHY/3T
Chip
Material
InGaN
Emitted Color
Pure White
Lens Color
Yellow Diffused
Everlight Electronics Co., Ltd.
Device No. : DSE-191-W01
http://www.everlight.com
Prepared date: 08-06-2004
Rev. 1.0
Page: 1 of 11
Prepared by: Jessica Chang
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/W1D-ANPHY/3T

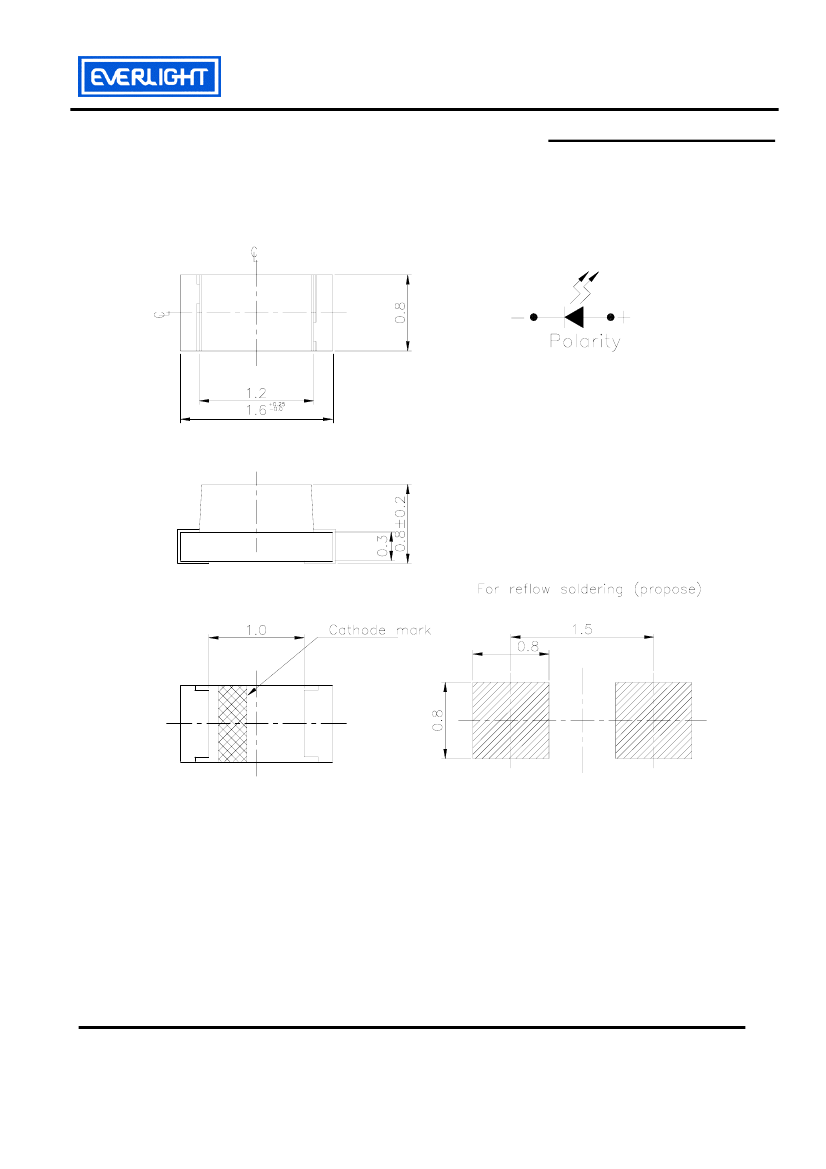

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm,
Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-191-W01
http://www.everlight.com
Prepared date: 08-06-2004
Rev. 1.0
Page: 2 of 11
Prepared by: Jessica Chang
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/W1D-ANPHY/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward Current
(Duty 1/10 @1KHz)
Symbol
V
R
I
F
Topr
Tstg
Tsol
ESD
Pd
I
FP
Rating
5
25
-40 ~ +85
-40 ~ +90
260 (for 5 seconds)
150
110
100
Unit
V
mA
℃
℃
℃
V
mW
mA
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Forward Voltage
Symbol
Iv
2θ1/2
V
F
I
R
Min.
28.5
-----
2.70
-----
Typ.
-----
110
-----
-----
Max.
72.0
-----
3.15
50
Unit
mcd
deg
V
μA
Condition
I
F
=5mA
Reverse Current
V
R
=5V
Bin Range Of Luminous Intensity & Forward Voltage
Symbol
I
V
Bin Code
N
P
15
V
F
16
17
Min.
28.5
45.0
2.70
2.85
3.00
Max.
45.0
72.0
2.85
3.00
3.15
V
Unit
mcd
I
F
=5mA
Condition
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-191-W01
http://www.everlight.com
Prepared date: 08-06-2004
Rev. 1.0
Page: 3 of 11
Prepared by: Jessica Chang
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/W1D-ANPHY/3T
Chromaticity Coordinates Specifications for Bin Grading
Groups
Bin Code
CIE_x
0.274
0.274
0.294
0.294
0.274
0.274
0.294
0.294
0.294
0.294
0.314
0.314
0.294
0.294
0.314
0.314
0.314
0.314
0.334
0.334
0.314
0.314
0.334
0.334
CIE_y
0.226
0.258
0.286
0.254
0.258
0.291
0.319
0.286
0.254
0.286
0.315
0.282
0.286
0.319
0.347
0.315
0.282
0.315
0.343
0.311
0.315
0.347
0.376
0.343
Condition
1
2
3
A
4
I
F
= 5mA
5
6
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01).
2.The products are sensitive to static electricity and care must be fully taken when
handling products.
Everlight Electronics Co., Ltd.
Device No. : DSE-191-W01
http://www.everlight.com
Prepared date: 08-06-2004
Rev. 1.0
Page: 4 of 11
Prepared by: Jessica Chang
EVERLIGHT ELECTRONICS CO.,LTD.
19-21/W1D-ANPHY/3T

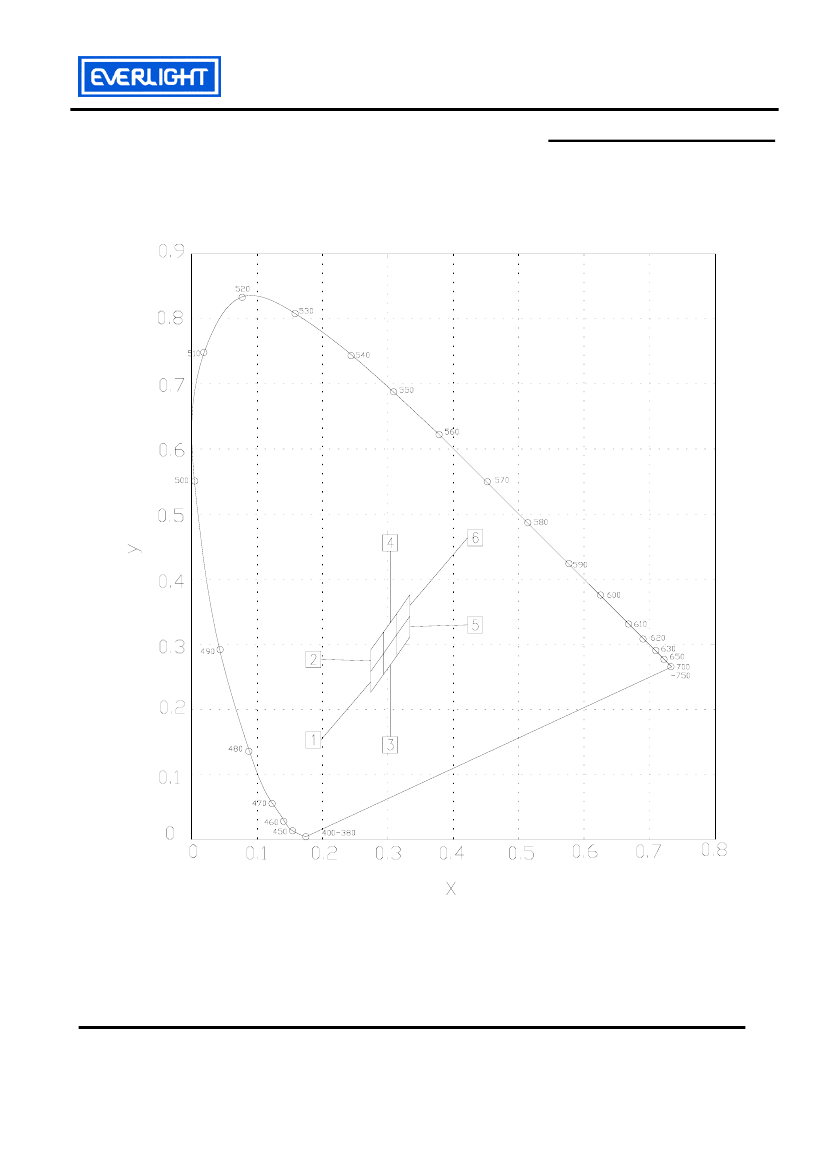

CIE Chromaticity Diagram
Everlight Electronics Co., Ltd.
Device No. : DSE-191-W01
http://www.everlight.com
Prepared date: 08-06-2004
Rev. 1.0
Page: 5 of 11
Prepared by: Jessica Chang
