54390-2009 datasheet, PDF - EEWORLD Datasheet

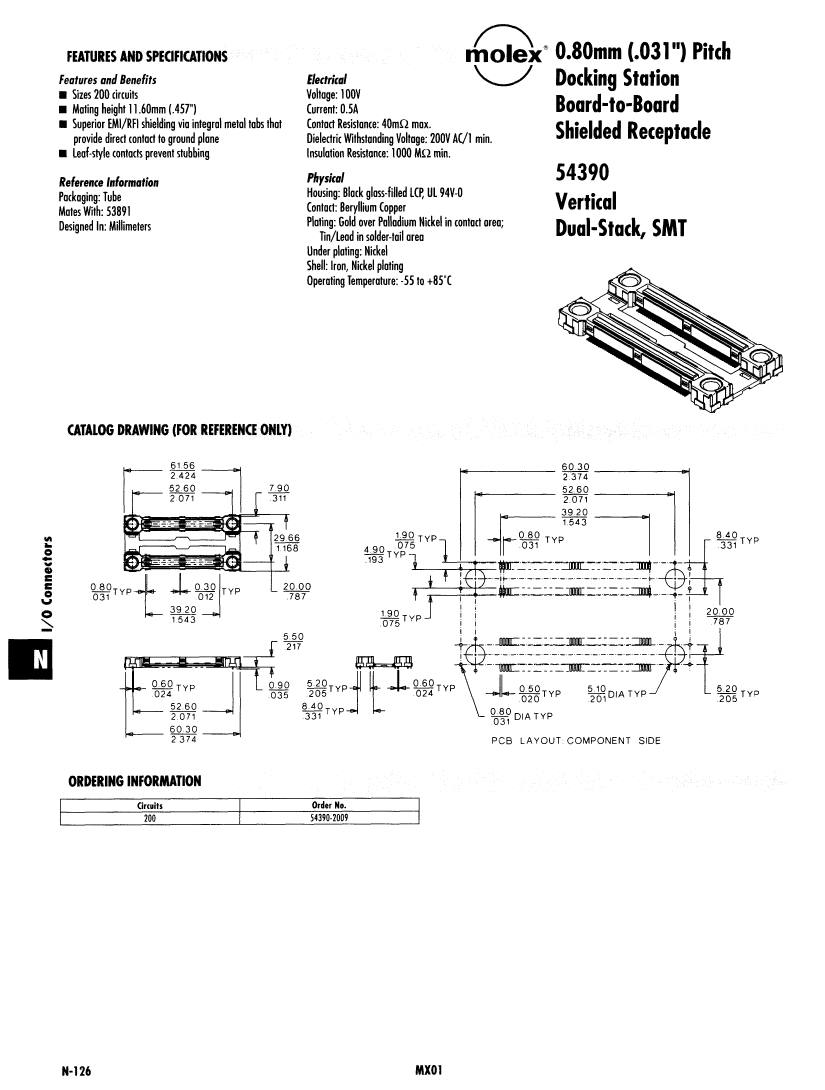

54390-2009: DescriptionBoard Connector, 200 Contact(s), 4 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, Receptacle; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

54390-2009 Overview

Board Connector, 200 Contact(s), 4 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED TYPE
Board mount options	PEG
body width	1.168 inch
subject depth	0.217 inch
body length	2.424 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	5000 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	54390
Plug contact pitch	0.031 inch
Plug information	53891-2009
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	13.208 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	IRON
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0
