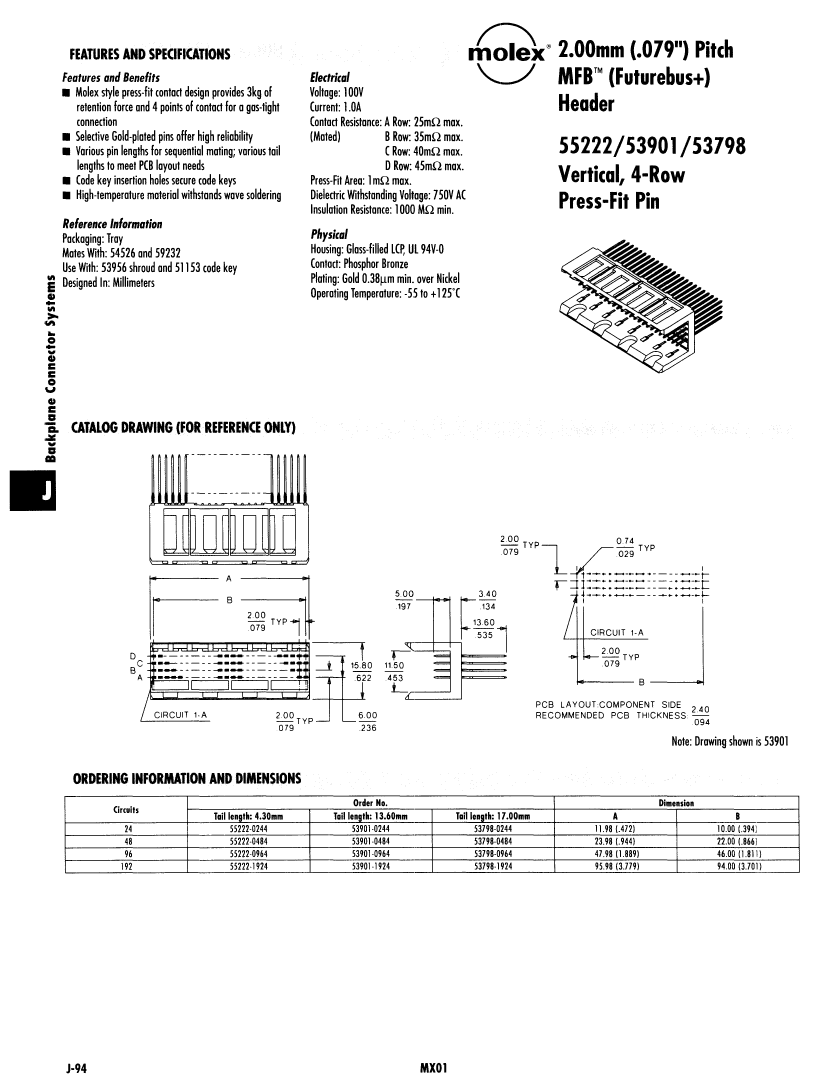

Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug,
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | MFB |
| body width | 0.622 inch |
| subject depth | 0.669 inch |
| body length | 3.779 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) |
| Contact completed and terminated | GOLD (15) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 45 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0008 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 55222 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 15u inch |
| polarization key | POLARIZED KEY |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.169 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 192 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
| 55222-1924 | 55222-0244 | 55222-0484 | 53901-0244 | 53901-1924 | 53901-0964 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug, | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug | Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug | Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug | Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Plug |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | compliant | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | MFB | MFB | MFB | MFB | MFB | MFB |
| body width | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch |
| subject depth | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch |
| body length | 3.779 inch | 0.472 inch | 0.944 inch | 0.472 inch | 3.779 inch | 1.889 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) |
| Contact completed and terminated | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) | GOLD (15) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 45 mΩ | 45 mΩ | 45 mΩ | 45 mΩ | 45 mΩ | 45 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 750VAC V | 750VAC V | 750VAC V | 750VAC V | 750VAC V | 750VAC V |
| Durability | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 1.0008 N | 1.0008 N | 1.0008 N | 1.0008 N | 1.0008 N | 1.0008 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 55222 | 55222 | 55222 | 53901 | 53901 | 53901 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 15u inch | 15u inch | 15u inch | 15u inch | 15u inch | 15u inch |
| polarization key | POLARIZED KEY | POLARIZED KEY | POLARIZED KEY | POLARIZED KEY | POLARIZED KEY | POLARIZED KEY |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.169 inch | 0.169 inch | 0.169 inch | 0.535 inch | 0.535 inch | 0.535 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 192 | 24 | 48 | 24 | 192 | 96 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .139 N | .139 N | .139 N | .139 N | .139 N | .139 N |
