ICL7621DCTV: DescriptionOperational Amplifier, 2 Func, 20000uV Offset-Max, CMOS, MBCY8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size274KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

ICL7621DCTV Overview

Operational Amplifier, 2 Func, 20000uV Offset-Max, CMOS, MBCY8

ICL7621DCTV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	, CAN8,.2
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0004 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	91 dB
frequency compensation	YES
Maximum input offset voltage	20000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
micropower	YES
Negative supply voltage upper limit	-9 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-1/+-5 V
Certification status	Not Qualified
Nominal slew rate	0.16 V/us
Maximum slew rate	0.25 mA
Supply voltage upper limit	9 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	480 kHz
Minimum voltage gain	10000

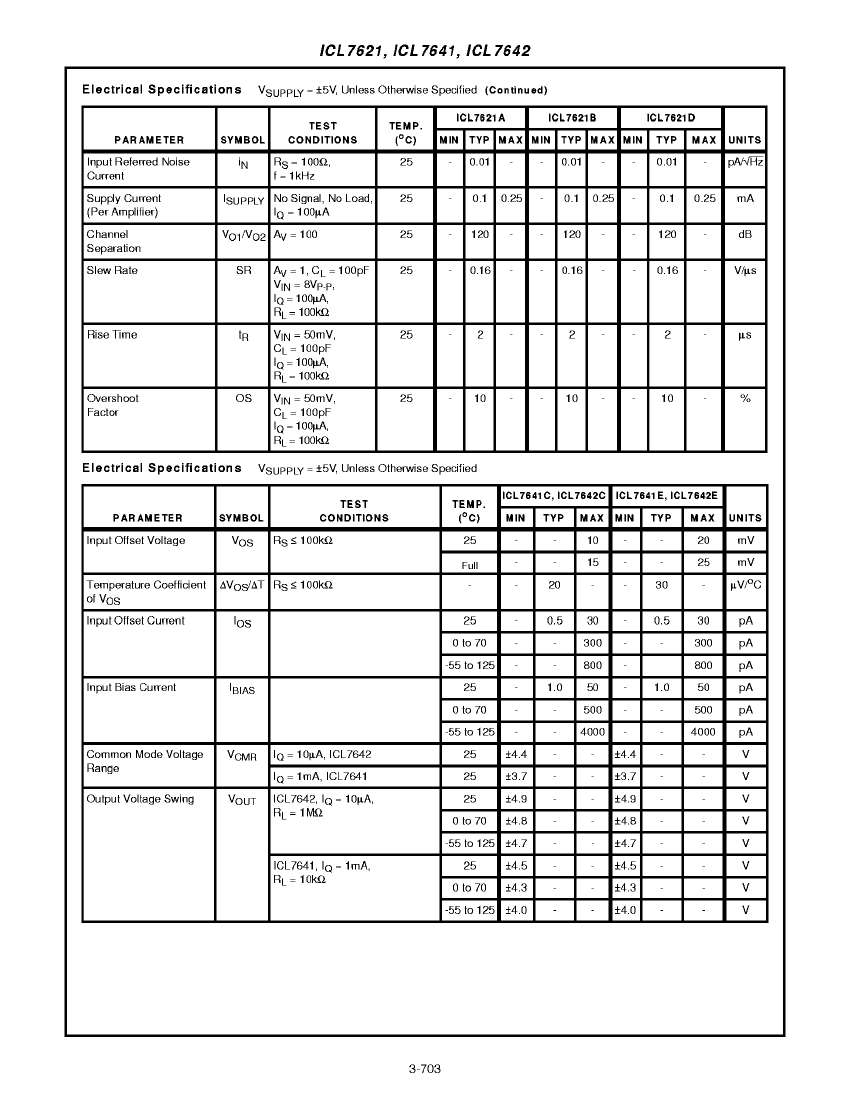

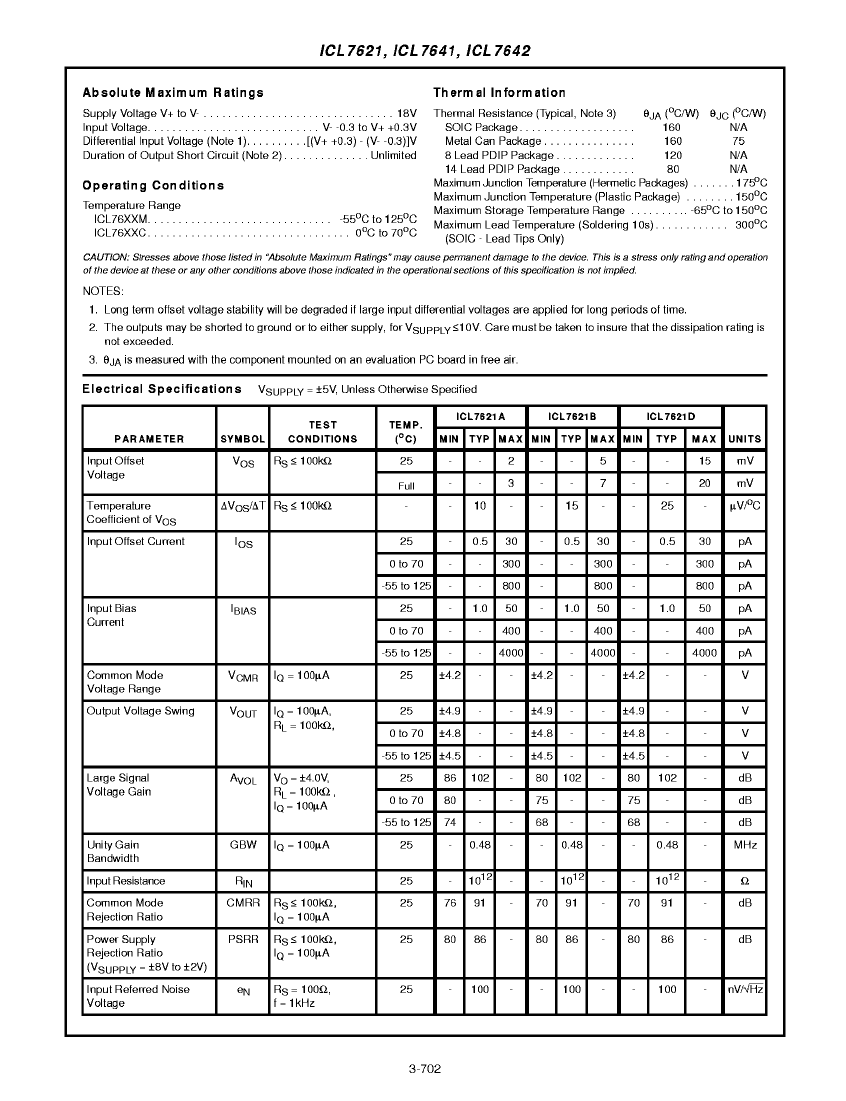

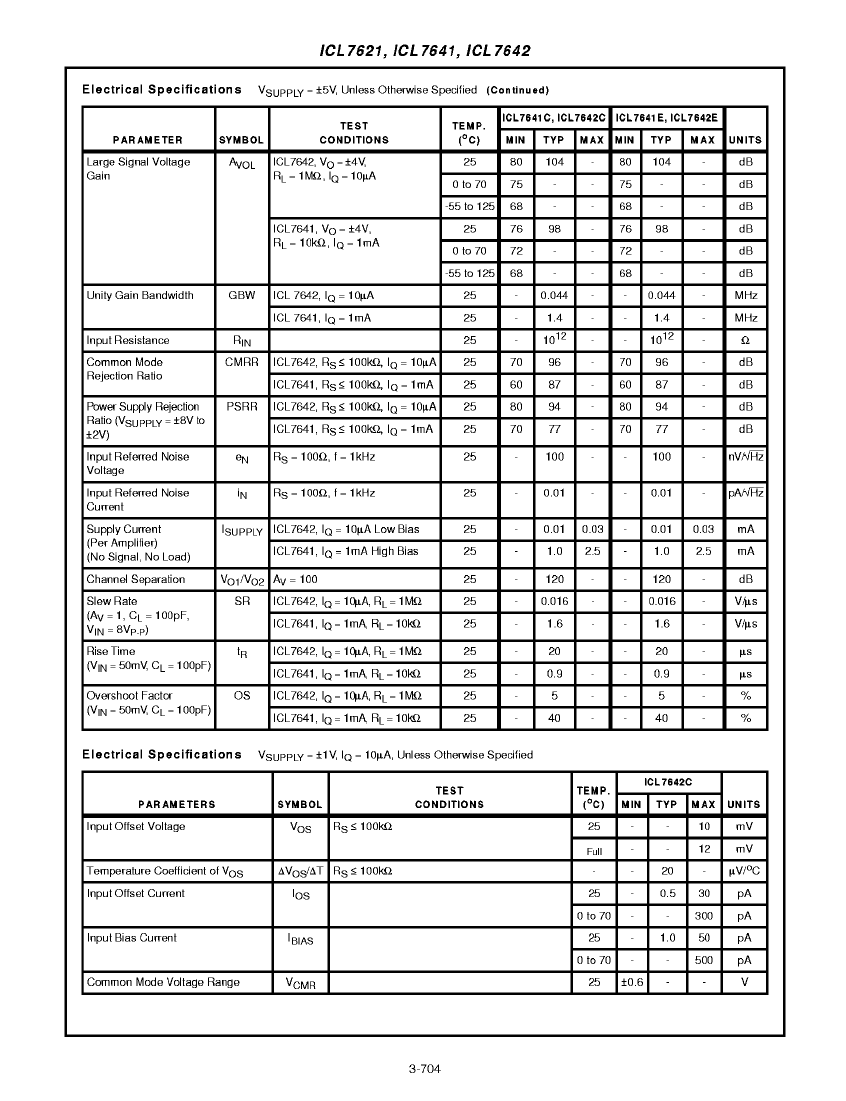

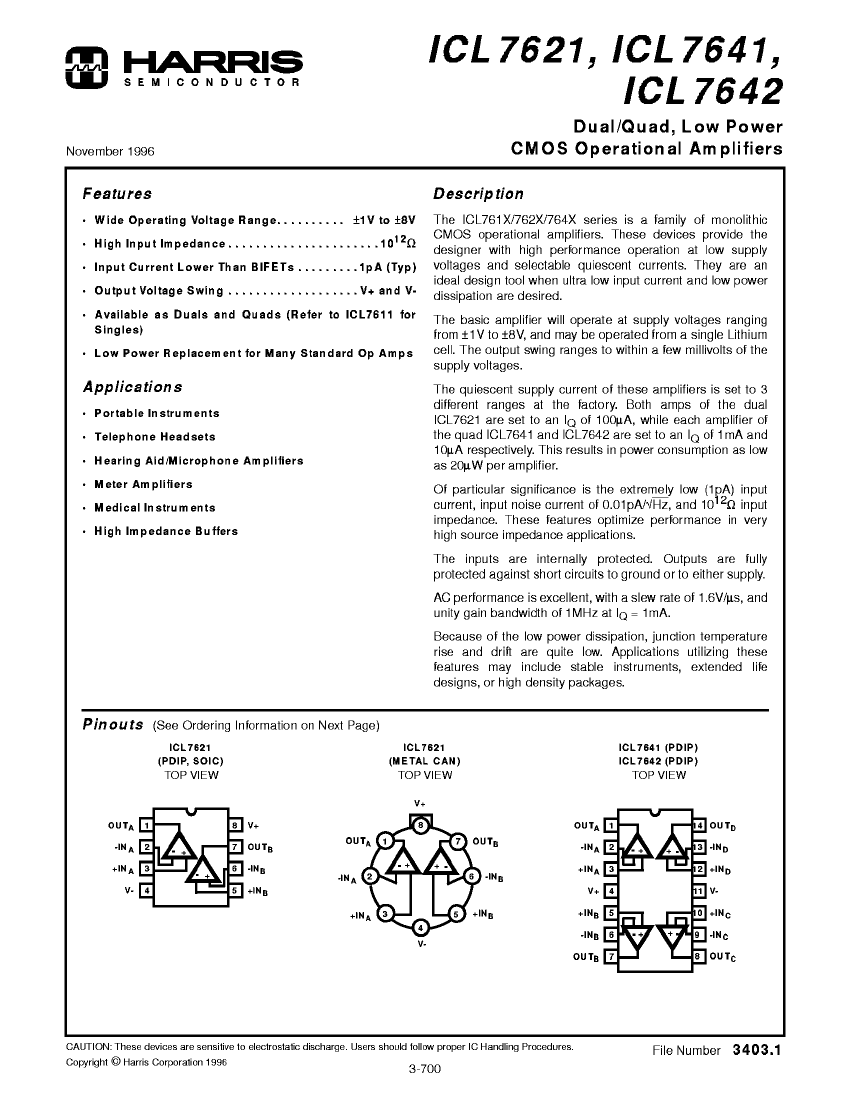

Preview

Download Datasheet

View All

ICL7621DCTV Related Products

	ICL7621DCTV	ICL7621BMTV
Description	Operational Amplifier, 2 Func, 20000uV Offset-Max, CMOS, MBCY8	Operational Amplifier, 2 Func, 7000uV Offset-Max, CMOS, MBCY8
Is it Rohs certified?	incompatible	incompatible
package instruction	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0004 µA	0.004 µA
Maximum bias current (IIB) at 25C	0.00005 µA	0.00005 µA
Minimum Common Mode Rejection Ratio	70 dB	70 dB
Nominal Common Mode Rejection Ratio	91 dB	91 dB
frequency compensation	YES	YES
Maximum input offset voltage	20000 µV	7000 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	NO	NO
micropower	YES	YES
Negative supply voltage upper limit	-9 V	-9 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	70 °C	125 °C
Package body material	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-1/+-5 V	+-1/+-5 V
Certification status	Not Qualified	Not Qualified
Nominal slew rate	0.16 V/us	0.16 V/us
Maximum slew rate	0.25 mA	0.25 mA
Supply voltage upper limit	9 V	9 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	480 kHz	480 kHz
Minimum voltage gain	10000	10000
