NBXHGA053 Overview

50 MHz, OTHER CLOCK GENERATOR, CDSO6

NBXHGA053 Parametric

Parameter Name	Attribute value
Number of terminals	6
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
Processing package description	7 X 5 MM, 2.54 MM PITCH, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, LCC-6
state	Active
microprocessor_microcontroller_peripheral_ic_type	CLOCK GENERATOR, OTHER
jesd_30_code	R-CDSO-N6
utput_clock_frequency_max	50 MHz
Packaging Materials	CERAMIC, METAL-SEALED COFIRED
ckage_code	SON
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
seated_height_max	1.9 mm
Rated supply voltage	3.3 V
Minimum supply voltage	3.14 V
Maximum supply voltage	3.46 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal spacing	2.54 mm
Terminal location	DUAL
length	7 mm
width	5 mm

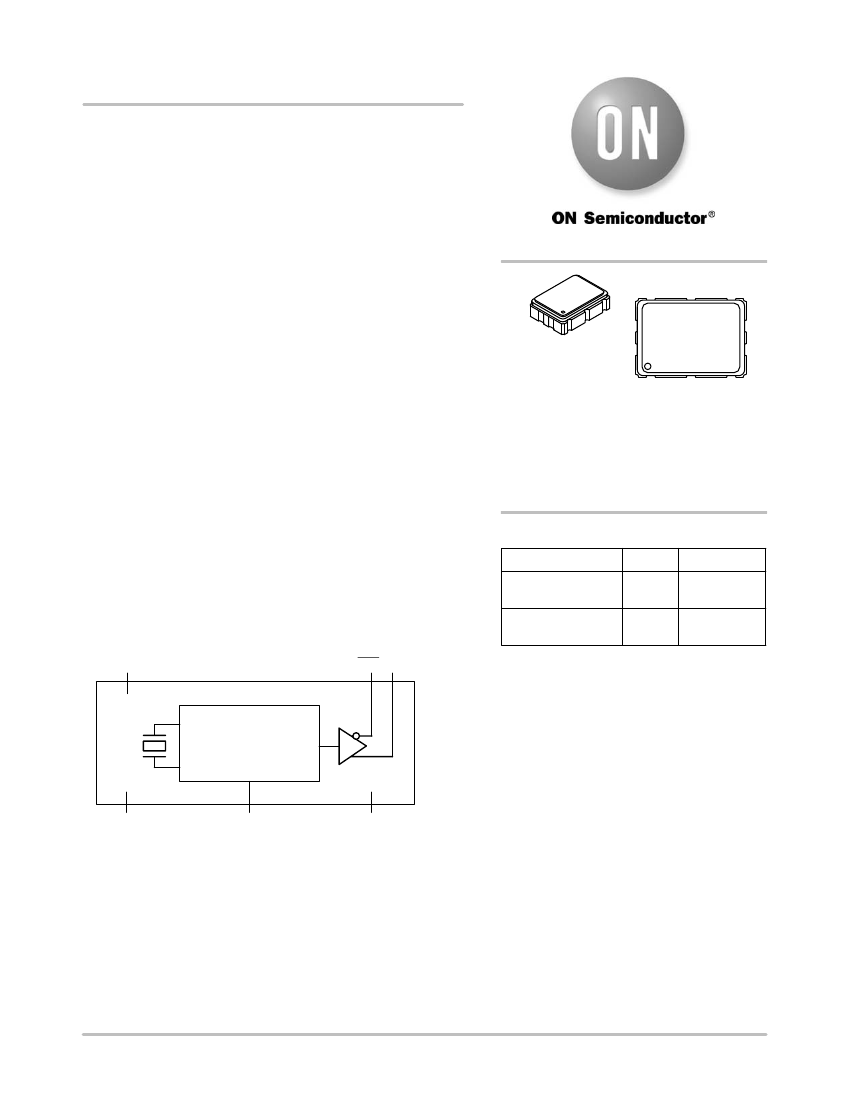

Preview

Download Datasheet

View All

NBXHGA053

3.3 V, 50.00 MHz LVPECL

Clock Oscillator

The NBXHGA053, single frequency, crystal oscillator (XO) is

designed to meet today’s requirements for 3.3 V LVPECL clock

generation applications. The device uses a high Q fundamental crystal

and Phase Lock Loop (PLL) multiplier to provide 50.00 MHz, ultra

low jitter and phase noise LVPECL differential output.

This device is a member of ON Semiconductor’s PureEdget clock

family that provides accurate and precision clock solutions.

Available in 5 mm x 7 mm SMD (CLCC) package on 16 mm tape

and reel in quantities of 100 and 1,000.

Features

http://onsemi.com

MARKING DIAGRAM

NBXHGA053

50.0000

AAWLYYWWG

•

LVPECL Differential Output

Uses High Q Fundamental Mode Crystal and PLL Multiplier

Ultra Low Jitter and Phase Noise

−

0.5 ps (12 kHz

−

20 MHz)

Output Frequency

−

50.00 MHz

Hermetically Sealed Ceramic SMD Package

RoHS Compliant

Operating Range: 3.3 V

±5%

Total Frequency Stability

−

±50

PPM

This is a Pb−Free Device

6 PIN CLCC

LN SUFFIX

CASE 848AB

NBXHGA053= NBXHGA053 (±50 PPM)

50.0000

= Output Frequency (MHz)

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

ORDERING INFORMATION

Device

NBXHGA053LN1TAG

NBXHGA053LNHTAG

Package

CLCC−6

(Pb−Free)

CLCC−6

(Pb−Free)

Shipping

†

1000/Tape &

Reel

100/Tape &

Reel

Applications

•

Networking / Telecom

•

General Purpose

CLK CLK

5 4

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specification

Brochure, BRD8011/D.

Crystal

PLL

Clock

Multiplier

GND

Figure 1. Simplified Logic Diagram

Semiconductor Components Industries, LLC, 2012

January, 2012

−

Rev. 1

Publication Order Number:

NBXHGA053/D
