C6D36DS29B4: DescriptionCard Edge Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size76KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

C6D36DS29B4 Overview

Card Edge Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Black Insulator, Receptacle

C6D36DS29B4 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CANTILEVER TERMINALS
Board mount options	#4-40 THD HOLE
body width	0.37 inch
subject depth	0.61 inch
body length	6.464 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	C6D
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.22 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	72
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

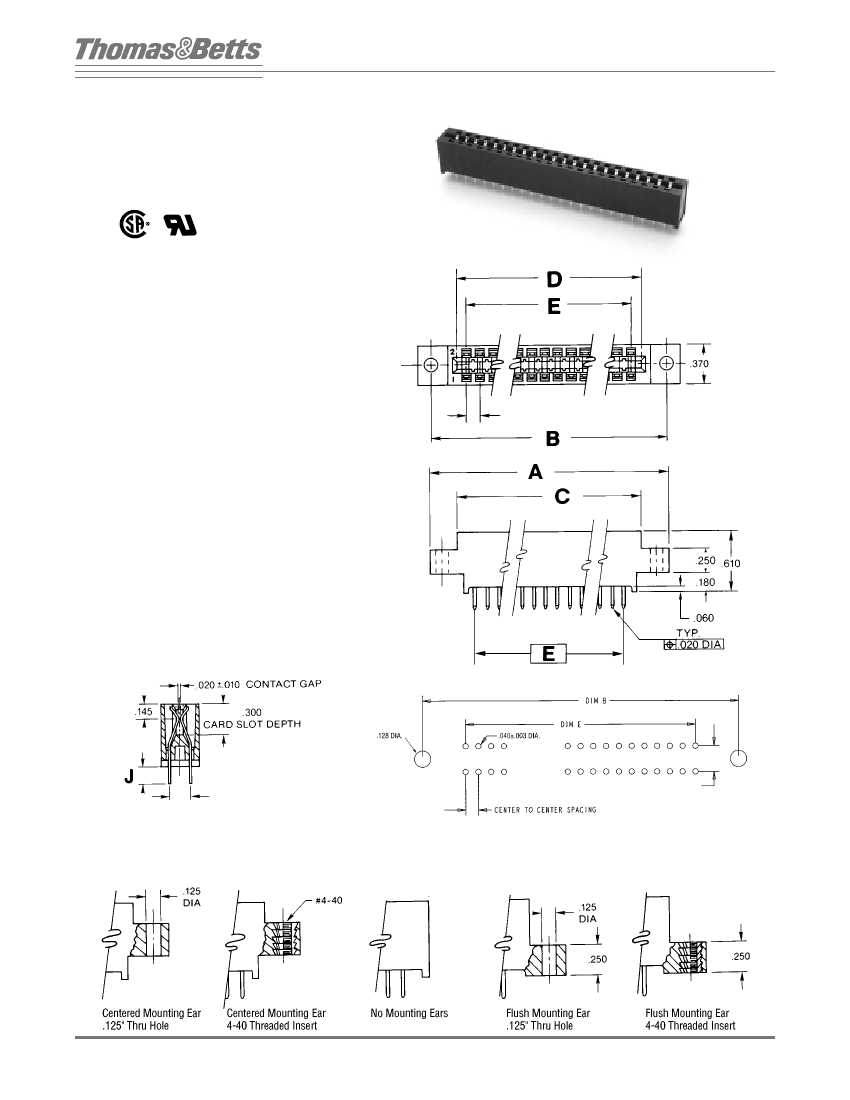

Cardedge

Cantilever Beam–Dip Solder

.156" CENTER-TO-CENTER

.200" ROW-TO-ROW

DIP SOLDER TAILS

.300" CARD SLOT DEPTH

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ESISTANCE

5000 megohms minimum.

NSERTION

ITHDRAWAL

ORCE

AUGHTER

ARD

8 oz./2oz. average contact pair using .0620 steel

blade.

NSULATOR

ODY

High temp. glass filled

thermoplastic, UL rating 94V-O.

OLOR

Black

ONTACTS

High strength copper alloy.

ONTACT

LATING

50 microinches nickel

underplate with 30 microinches gold in the mating

area, tin/lead on tails, 100 microinches minimum

.156

LECTRICAL

ROPERTIES

PERATION

OLTAGE

1500 VDC (sea level)

URRENT

ATING

3 Amperes

NITIAL

ONTACT

ESISTANCE

10 milliohms

NVIRONMENTAL

ROPERTIES

PERATING

EMPERATURE

-55˚C to +125˚C

EMPERATURE

YCLING

MIL-STD-202 method 107

IBRATION

MIL-STD-202 method 204

AUGHTER

ARD

See page 347 for layout

.200

.156

Mounting Styles

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.
