EPE6117 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> EPE6117

EPE6117: Description10 Base-T Multiport Module; CategoryPower management transformer; File Size235KB，2 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EPE6117 Overview

10 Base-T Multiport Module

EPE6117 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	OPTIMIZED FOR AMD REPEATER CHIPS
application	10 BASE-T
high	9.91 mm
JESD-609 code	e0
length	42.93 mm
Manufacturer's serial number	EPE6117
Installation features	THROUGH HOLE MOUNTED
Number of functions	4
physical size	42.93mm X 25.91mm X 9.91mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1; 1:1
width	25.91 mm
Base Number Matches	1

Preview

Download Datasheet

View All

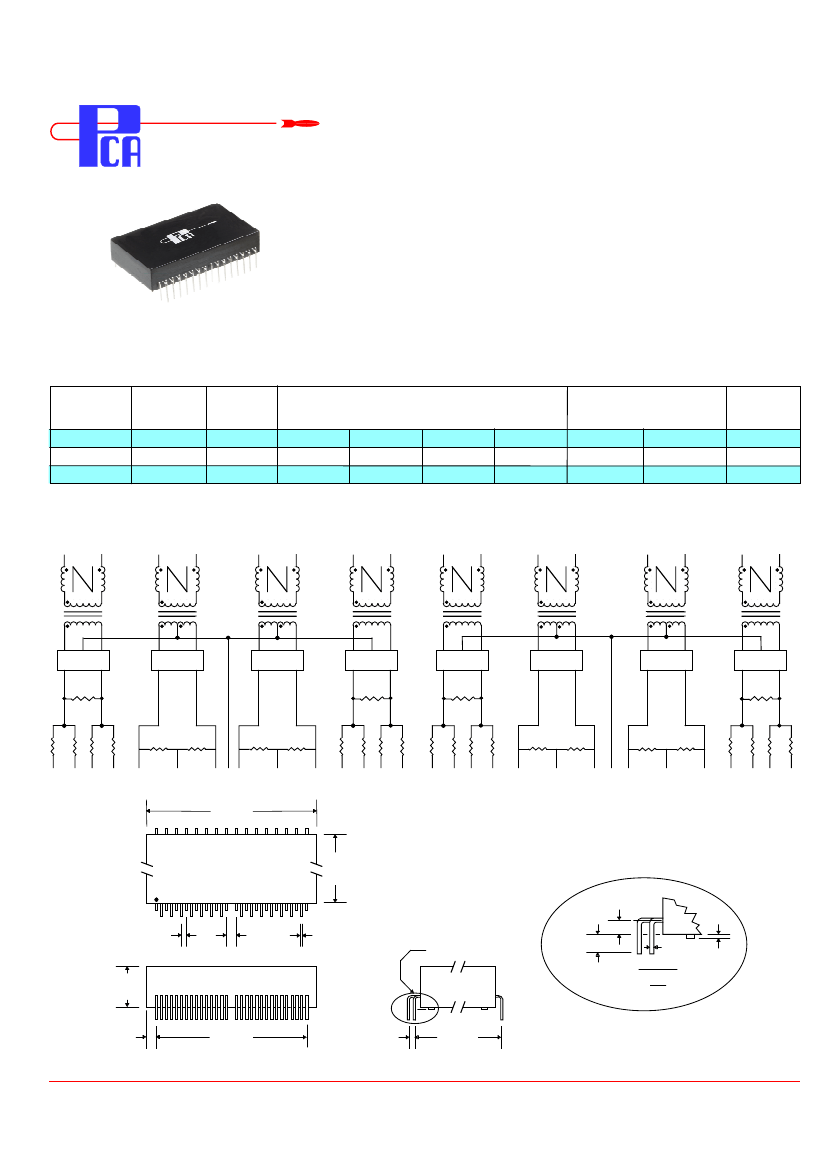

10 Base-T Multiport Module with

Enhanced Common Mode Attenuation

ELECTRONICS INC.

EPE6117

• Optimized for AMD Repeater Chips

• Low Crosstalk enhances network reliability

• Robust construction allows for IR/VP processes

• Complies with or exceeds IEEE 802.3, 10Base-T Standards

Electrical Parameters @ 25° C

Cut-Off

Frequency

(MHz)

± 1.0 MHz

Xmit/Rcv

17/17

Insertion

Loss

(dB Max.)

1-10 MHz

Xmit/Rcv

-1/-1

•

Return

Loss

(dB Min.)

5-10 MHz

Xmit/Rcv

-15/-15

@ 20 MHz

Xmit/Rcv

-7/-5

Attenuation

(dB Min.)

@ 25 MHz

Xmit/Rcv

-18/-11

@ 30 MHz

Xmit/Rcv

-30/-18

@ 40 MHz

Xmit/Rcv

-35/-26

Common Mode

Rejection

(dB Min.)

@ 50 MHz

Xmit/Rcv

-30/-30

@ 100 MHz

Xmit/Rcv

-30/-30

Crosstalk

(dB Min.)

1-10 MHz

Xmit/Rcv

-35/-35

Isolation

: meets or exceeds 802.3 IEEE Requirements •

Characteristic Filter Impedance

: 100

Ω

•

Schematic

Xmit

Rcv

Xmit

Rcv

Xmit

1:1

LPF

1.2K

LPF

1.2K

LPF

1.2K

LPF

1.2K

61.98Ω

61.9Ω

422Ω

61.9Ω

29 30

422Ω

49.9Ω

422Ω

49.9Ω

7 8 9

13 14

18 19 20

23 24 25

1.690

(42.93)

Package

PCA

EPE6117

Date Code

1.015/1.025

(25.78/26.04)

.110

(2.79)

.050

(1.27)

.390

(9.91)

.100

(2.54)

.016/.020

(.406/.508)

See Detail

.125/.150

(3.18/3.81)

DETAIL

.010

(.254)

.095

(2.41)

1.500

(38.10)

.075

(1.91)

1.100

(27.94)

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSE6117

Rev. Orig

5/6/03

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com

422Ω
