Low-Peak™ 250V Class RK1
LPN-RK — 250Vac/dc, 70-600A, Dual Element, Time-Delay Fuses
Dimensions - in
A
B
Available with easyID™
open fuse indication
Description:
Ultimate protection Class RK1 dual element,
current-limiting, time-delay fuses available with optional open
fuse indication.
Catalog Symbols:
LPN-RK-(amp)SP (non-indicating)
LPN-RK-(amp)SPI (indicating)
Ratings:
Volts — 250Vac/dc
Amps — 70-600A
IR — 300kA Vac RMS Sym.
— 100kA Vdc
Agency Information:
CE, UL Listed, Guide JDDZ, File E4273
CSA Certified, Class 1422-02, File 53787,
Class RK1 per CSA C22.2 No. 248.12
Catalog Numbers (amps) — Non-indicating Fuses*
LPN-RK-70SP
LPN-RK-150SP
LPN-RK-350SP
LPN-RK-80SP
LPN-RK-175SP
LPN-RK-400SP
LPN-RK-90SP
LPN-RK-200SP
LPN-RK-450SP
LPN-RK-100SP
LPN-RK-225SP
LPN-RK-500SP
LPN-RK-110SP
LPN-RK-250SP
LPN-RK-600SP
LPN-RK-125SP
LPN-RK-300SP
* Open fuse indication available on all part numbers by inserting the suffix “I,”
e.g., LPN-RK-90SPI. Requires 75Vac minimum voltage.
Amp Rating
70-100
110-200
225-400
450-600
A
5.88 (± 0.062)
7.13 (± 0.062)
8.63 (± 0.094)
10.38 (± 0.094)
B
1.10 (± 0.02)
1.61 (± 0.02)
2.36 (± 0.02)
2.88 (± 0.02)
Features:
• Industry’s only UL Listed and CSA Certified fuse with a
300kA Vac interrupting rating that exceeds requirements for
virtually all applications
• Fast short-circuit protection provides optimal arc flash
protection to reduce hazard to personnel
• Easy selective coordination with all Low-Peak fuses using
simple 2:1 ampacity ratio
• Current-limiting for maximum short-circuit protection
• “No damage” Type “2” protection for IEC and NEMA motor
starters when properly sized
• High in-rush current motor protection
• Time-delay that permits 130% FLA sizing for back-up motor
protection
• Provides protection against single-phase motor damage
• Low watt loss power consumption
• Electrically isolated end caps for added safety
Applications:
• Feeder and Branch Circuits
• Motors
• General Purpose Circuits
Recommended Fuse Blocks
Fuse Amps
70-100
110-200
225-400
450-600
1-Pole
RM25100-1CR
RM25200-1CR
RM25400-1CR
RM25600-1CR
• Transformers
• Solenoids
Carton Quantity and Weight
Amp Rating
Carton Qty.
70–100
110–200
225–400
450–600
5
1
1
1
2-Pole
RM25100-2CR
RM25200-2CR
RM25400-2CR
RM25600-2CR
3-Pole
RM25100-3CR
RM25200-3CR
RM25400-3CR
RM25600-3CR
For additional information on the RM Series of 250 volt fuse
blocks, see product brochure # 3192.
Fuse Reducers For Class R Fuses
Equipment
Fuse Clips
200A
400A
600A
Desired Fuse
(Case) Size
100A
100A
200A
100A
200A
400A
Catalog Numbers
(Pairs) 250V
NO.2621-R
NO.2641-R
NO.642-R
NO.2661-R
NO.2662-R
NO.2664-R
†
† Single reducer only (pair not required).
For additional information on Class R fuse reducers, see
Data Sheet # 1118.
0713
BU-SB13687
Page 1 of 3
Data Sheet # 1004
Low-Peak™ 250V Class RK1
LPN-RK — 250Vac/dc, 70-600A, Dual Element, Time-Delay Fuses

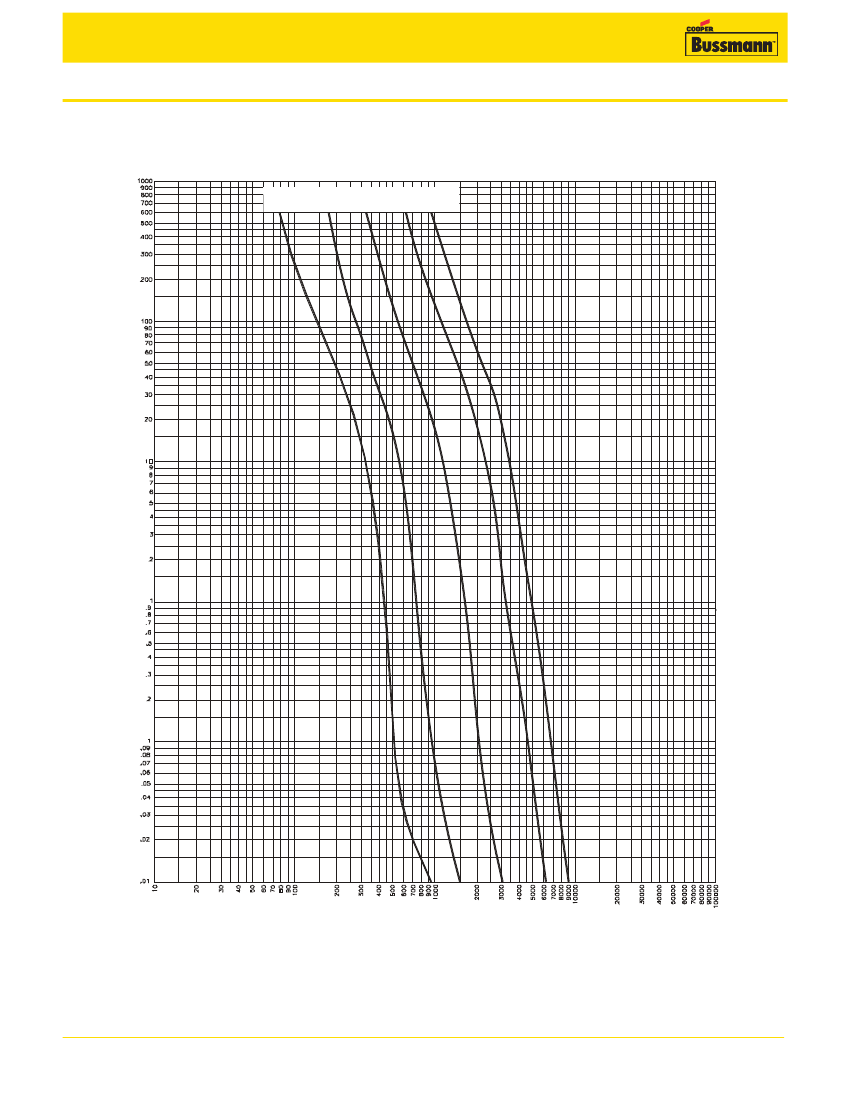

Time-Current Curves - Average Melt
AMP RATING
400
100
200
600
60
TIME IN SECONDS
CURRENT IN AMPS
NOTE: 60 Amp fuse curve is ferrule style and included to show only
relative performance. For actual 60 amp time-current curve
performance, see Data Sheet 1003.
0713
BU-SB13687
Page 2 of 3
Data Sheet # 1004
Low-Peak™ 250V Class RK1
LPN-RK — 250Vac/dc, 70-600A, Dual Element, Time-Delay Fuses
Current-Limitation Curves
B
400,000
300,000
200,000
INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPERES
100,000
90,000
80,000
70,000
60,000
50,000
40,000
30,000
20,000
600A
400A
200A
100A
10,000
9,000
8,000
7,000
6,000
5,000
4,000
3,000
2,000
A
200,000
PROSPECTIVE SHORT-CIRCUIT CURRENT - SYMMETRICAL RMS AMPS
Current-Limiting Effects
Prosp.
Let-Through Current
S.C.C.
(Apparent RMS Symmetrical Vs. Fuse Rating)
—
100A
200A
400A
600A
1000
1000
1000
1000
1000
2000
2000
2000
2000
2000
3000
2000
3000
3000
3000
5000
2000
3000
5000
5000
10,000
3000
4000
7000
9000
15,000
3000
5000
8000
11,000
20,000
3000
5000
8000
11,000
25,000
3000
5000
9000
12,000
30,000
4000
6000
9000
12,000
35,000
4000
6000
10,000
13,000
40,000
4000
6000
10,000
13,000
50,000
4000
7000
11,000
14,000
60,000
4000
7000
11,000
16,000
70,000
4000
7000
12,000
16,000
80,000
5000
8000
12,000
16,000
90,000
5000
7000
13,000
17,000
100,000
5000
8000
13,000
17,000
150,000
6000
9000
15,000
19,000
200,000
6000
11,000
16,000
20,000
250,000
7000
11,000
17,000
21,000
300,000
7000
12,000
18,000
22,000
