NCB-H0805R600TR datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> NCB-H0805R600TR

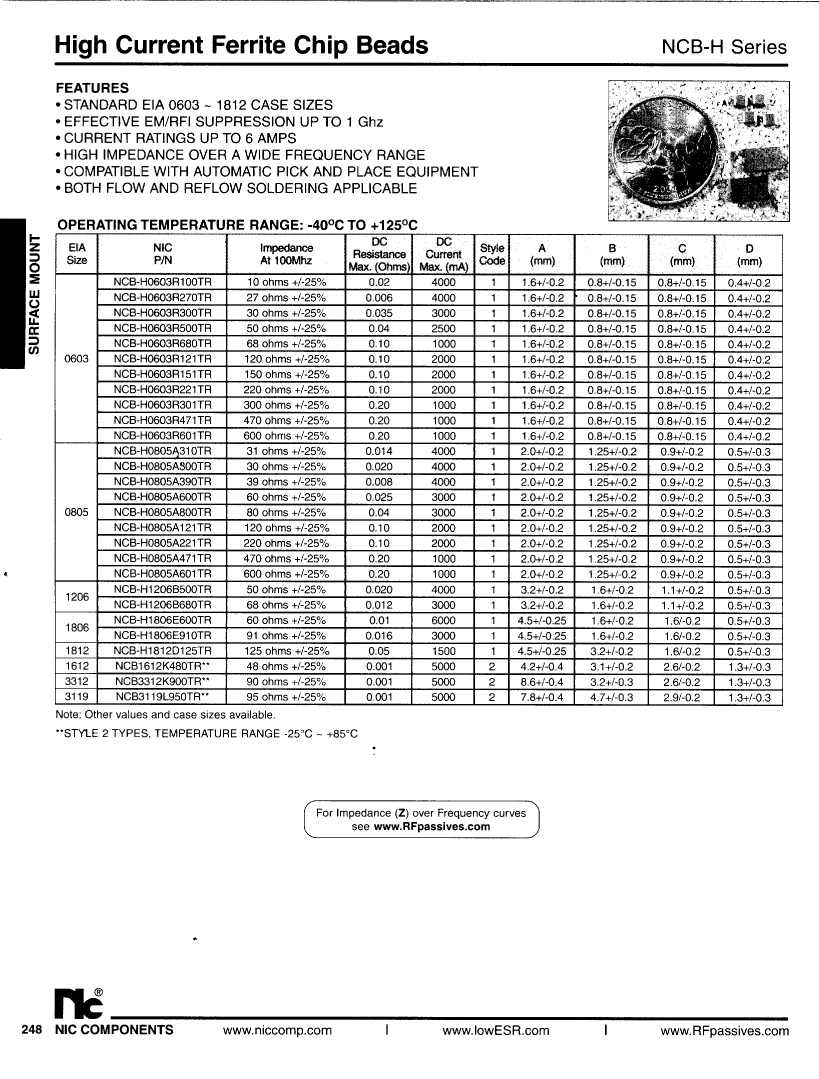

NCB-H0805R600TR: DescriptionFerrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE; CategoryAnalog mixed-signal IC filter; File Size98KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NCB-H0805R600TR Overview

Ferrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE

NCB-H0805R600TR Parametric

Parameter Name	Attribute value
Maker	Nichicon
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.025 Ω
filter type	FERRITE CHIP
high	0.9 mm
length	2 mm
Manufacturer's serial number	NCB-H
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output impedance	60 OHM Ω
physical size	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
Rated current	3 A
width	1.25 mm

Preview

Download Datasheet

View All

NCB-H0805R600TR Related Products

	NCB-H0805R600TR	NCB-H0805R121TR	NCB-H0805R221TR	NCB-H0805R300TR	NCB-H0805R310TR	NCB-H0805R390TR	NCB-H0805R471TR	NCB-H0805R601TR	NCB-H0805R800TR
Description	Ferrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 2A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 2A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 4A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 4A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 4A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 1A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 1A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE	Ferrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, SURFACE MOUNT PACKAGE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.025 Ω	0.1 Ω	0.1 Ω	0.02 Ω	0.014 Ω	0.008 Ω	0.2 Ω	0.2 Ω	0.04 Ω
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
high	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm
length	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Manufacturer's serial number	NCB-H	NCB-H	NCB-H	NCB-H	NCB-H	NCB-H	NCB-H	NCB-H	NCB-H
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance	60 OHM Ω	120 OHM Ω	220 OHM Ω	30 OHM Ω	31 OHM Ω	39 OHM Ω	470 OHM Ω	600 OHM Ω	80 OHM Ω
physical size	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
Rated current	3 A	2 A	2 A	4 A	4 A	4 A	1 A	1 A	3 A
width	1.25 mm	1.25 mm	-	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Is Samacsys	-	N	N	N	N	N	N	N	N
Base Number Matches	-	1	1	1	1	1	1	1	1
