MY400X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MY400X

MY400X: Description25Amp Fast Recovery Full Wave Bridge Rectifier; CategoryDiscrete semiconductor diode; File Size124KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MY400X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MY400X	-	-	View	Buy Now

MY400X Overview

25Amp Fast Recovery Full Wave Bridge Rectifier

MY400X Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	HERMETIC SEALED, GLASS PACAKGE-2
Contacts	2
Reach Compliance Code	unknow
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-MUPF-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	25 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

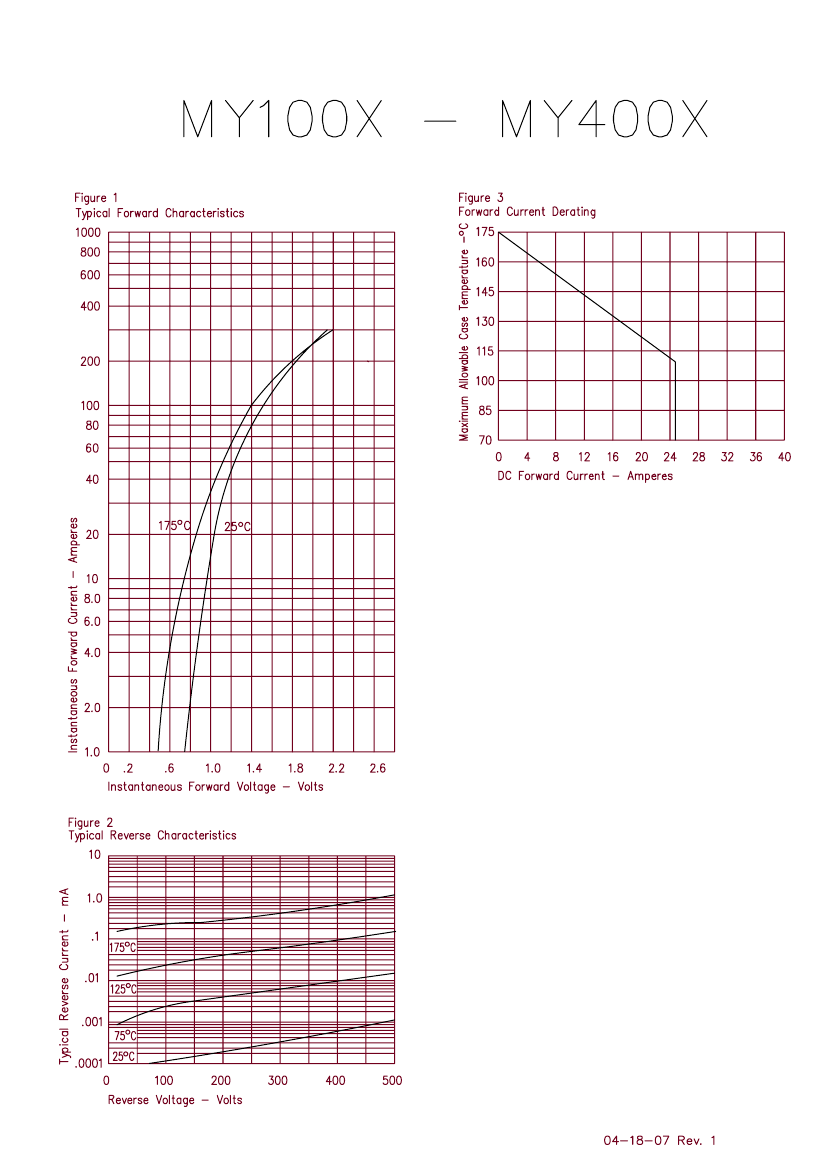

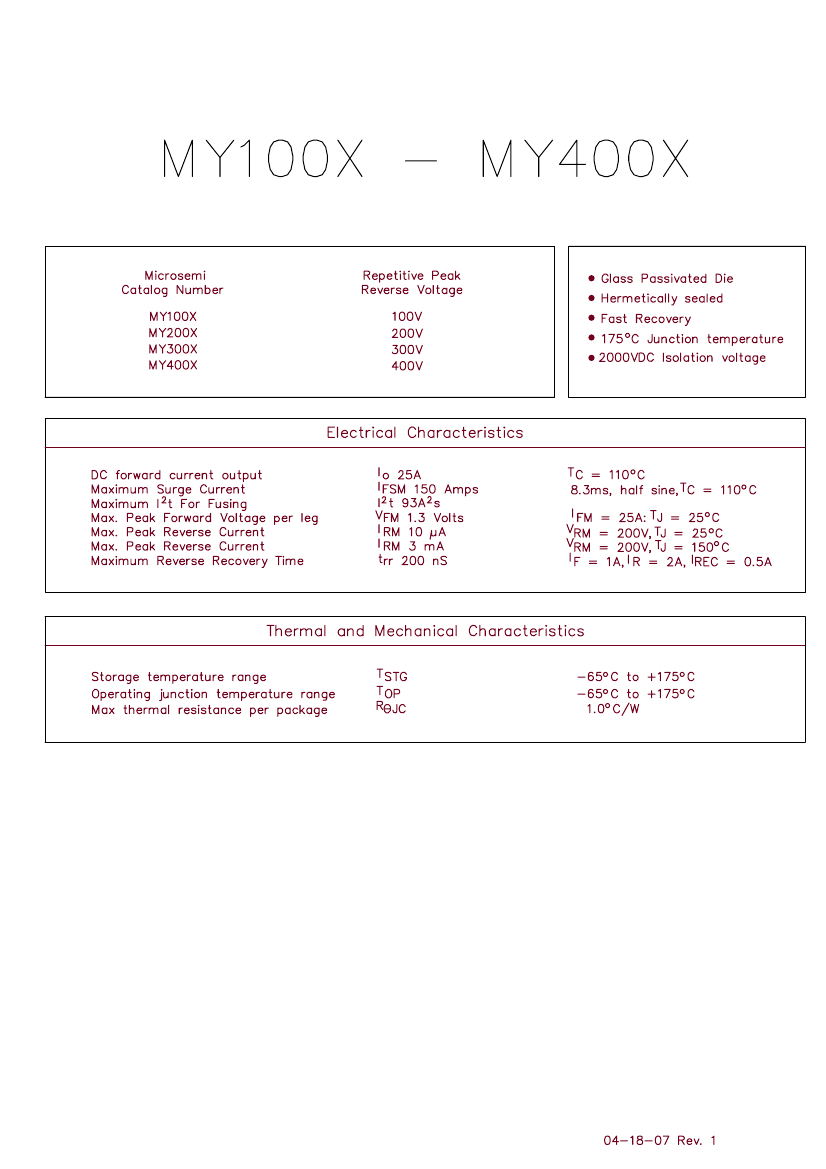

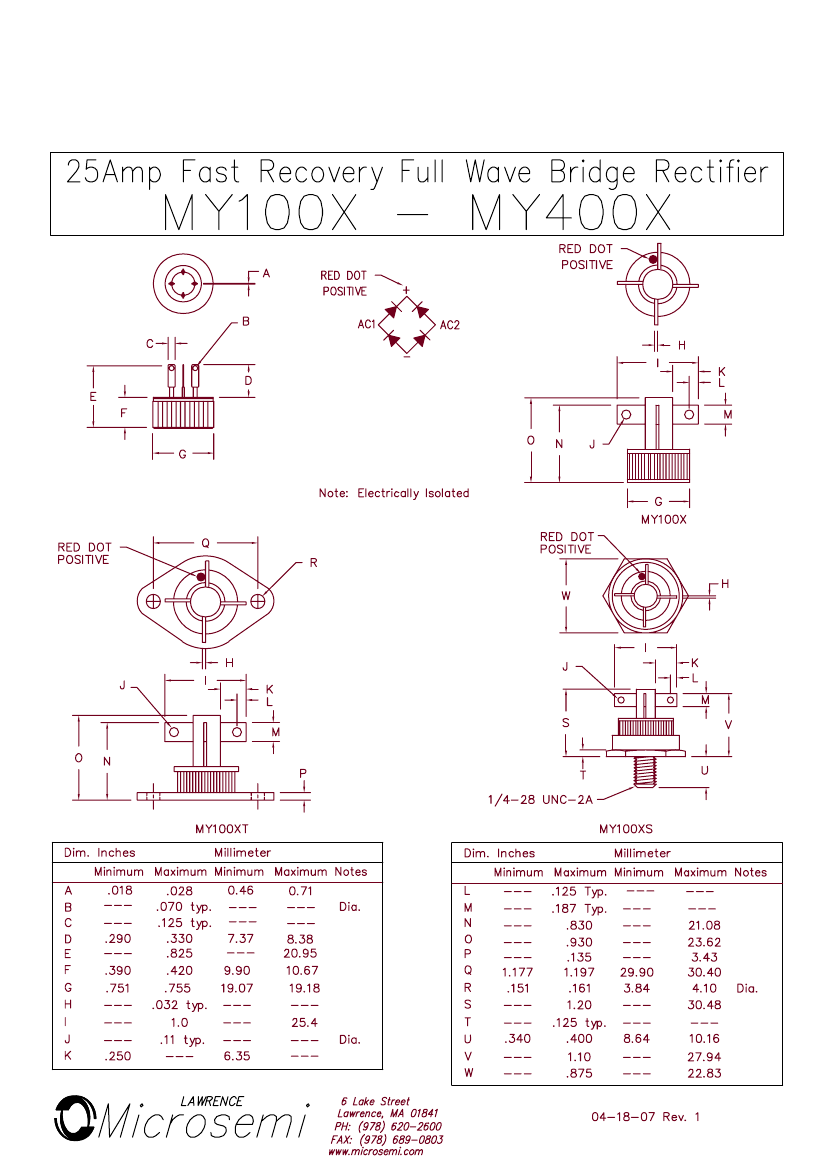

Preview

Download Datasheet

View All

MY400X Related Products

	MY400X	MY100X_07	MY300X	MY100X	MY200X
Description	25Amp Fast Recovery Full Wave Bridge Rectifier	25Amp Fast Recovery Full Wave Bridge Rectifier	25Amp Fast Recovery Full Wave Bridge Rectifier	25Amp Fast Recovery Full Wave Bridge Rectifier	25Amp Fast Recovery Full Wave Bridge Rectifier
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to
Maker	Microsemi	-	Microsemi	-	Microsemi
package instruction	HERMETIC SEALED, GLASS PACAKGE-2	-	HERMETIC SEALED, GLASS PACAKGE-2	O-MUPF-D1	HERMETIC SEALED, GLASS PACAKGE-2
Contacts	2	-	2	2	2
Reach Compliance Code	unknow	-	unknow	compli	unknow
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	-	1.3 V	1.3 V	1.3 V
JESD-30 code	O-MUPF-D1	-	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1
JESD-609 code	e0	-	e0	e0	e0
Maximum non-repetitive peak forward current	150 A	-	150 A	150 A	150 A
Number of components	4	-	4	4	4
Phase	1	-	1	1	1
Number of terminals	1	-	1	1	1
Maximum operating temperature	175 °C	-	175 °C	175 °C	175 °C
Maximum output current	25 A	-	25 A	25 A	25 A
Package body material	METAL	-	METAL	METAL	METAL
Package shape	ROUND	-	ROUND	ROUND	ROUND
Package form	PRESS FIT	-	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	-	300 V	100 V	200 V
surface mount	NO	-	NO	NO	NO
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	-	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
ECCN code	-	-	EAR99	EAR99	EAR99
