LH28F002SCHN-L12 datasheet, PDF

Datasheet> All Categories > storage> storage> LH28F002SCHN-L12

LH28F002SCHN-L12: DescriptionFlash, 256KX8, 120ns, PDSO44, 13.20 X 28.20 MM, PLASTIC, SOP-44; Categorystorage storage; File Size2MB，43 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F002SCHN-L12 Overview

Flash, 256KX8, 120ns, PDSO44, 13.20 X 28.20 MM, PLASTIC, SOP-44

LH28F002SCHN-L12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	13.20 X 28.20 MM, PLASTIC, SOP-44
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.2 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programming voltage	3.3 V
Certification status	Not Qualified
Maximum seat height	3.15 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
type	NOR TYPE
width	13.2 mm

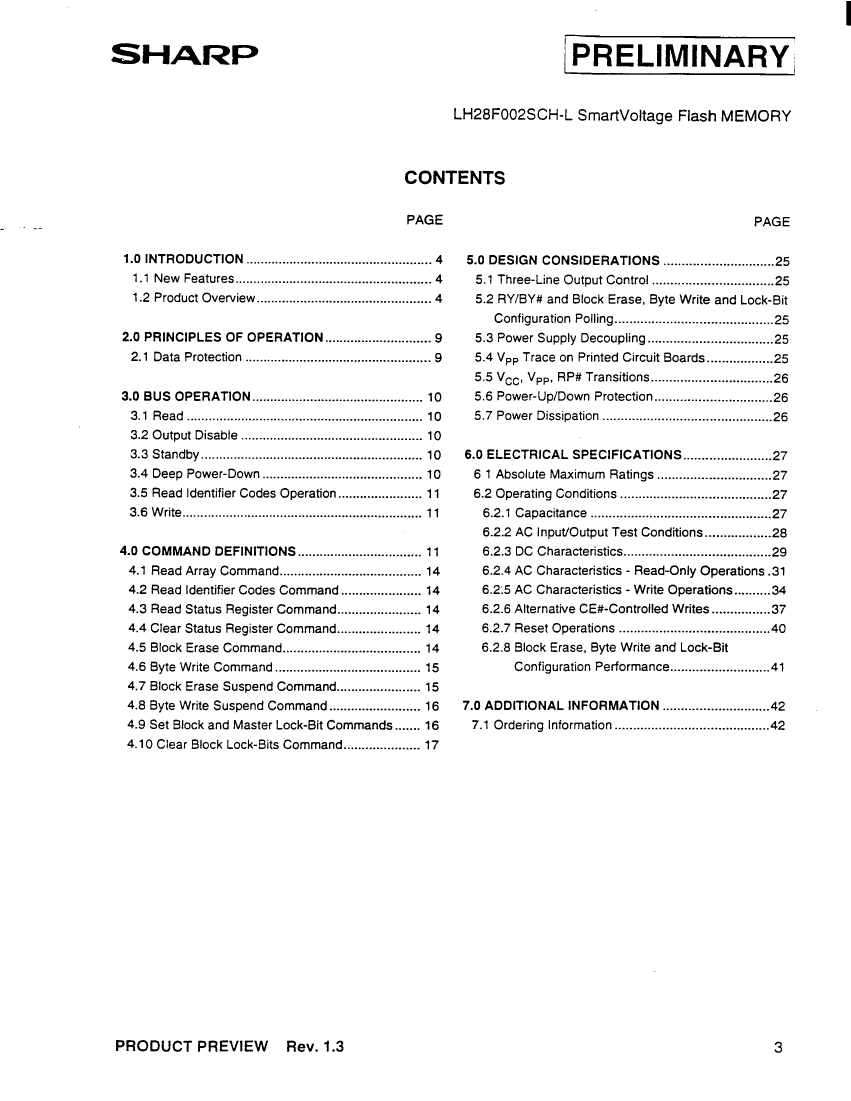

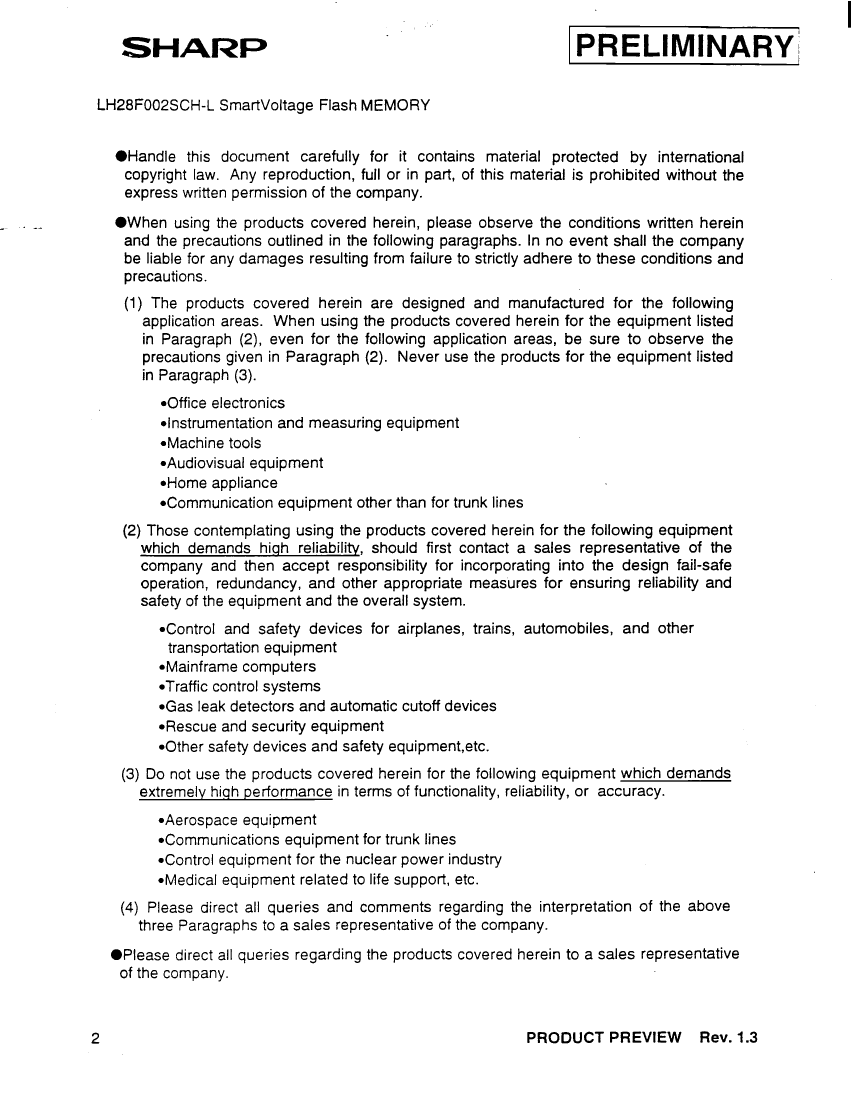

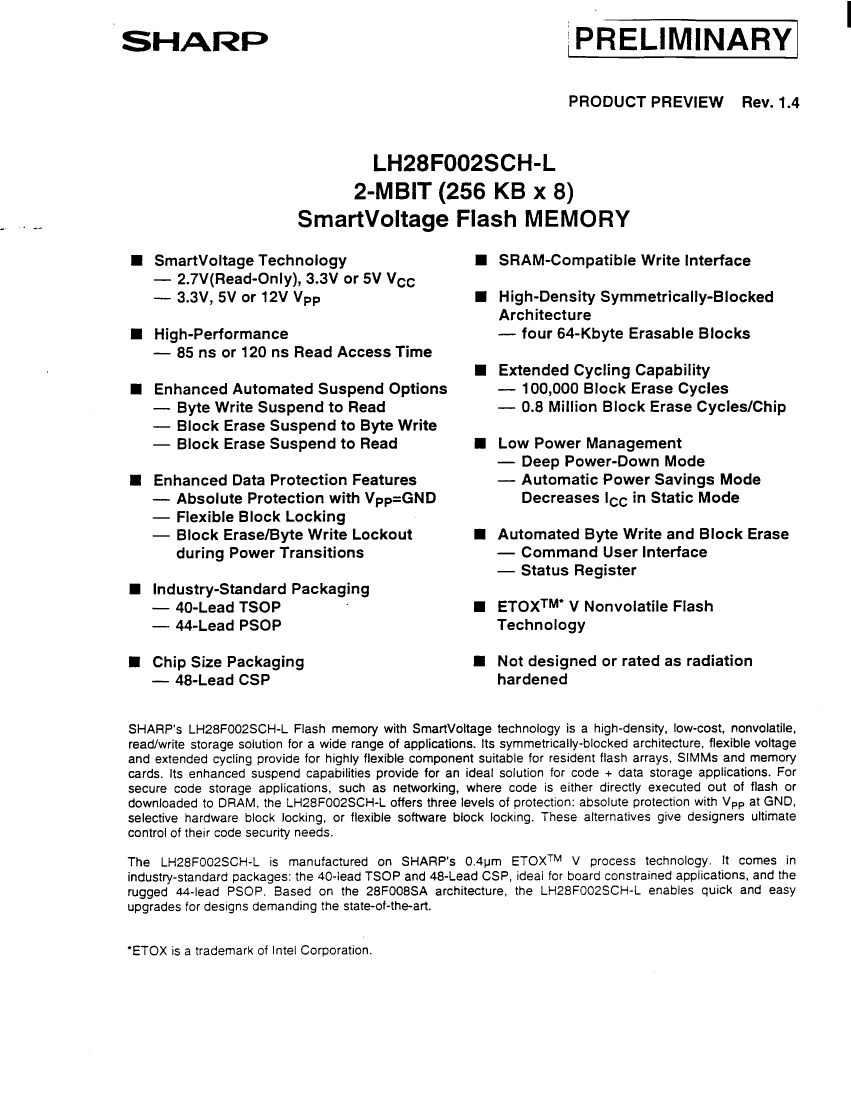

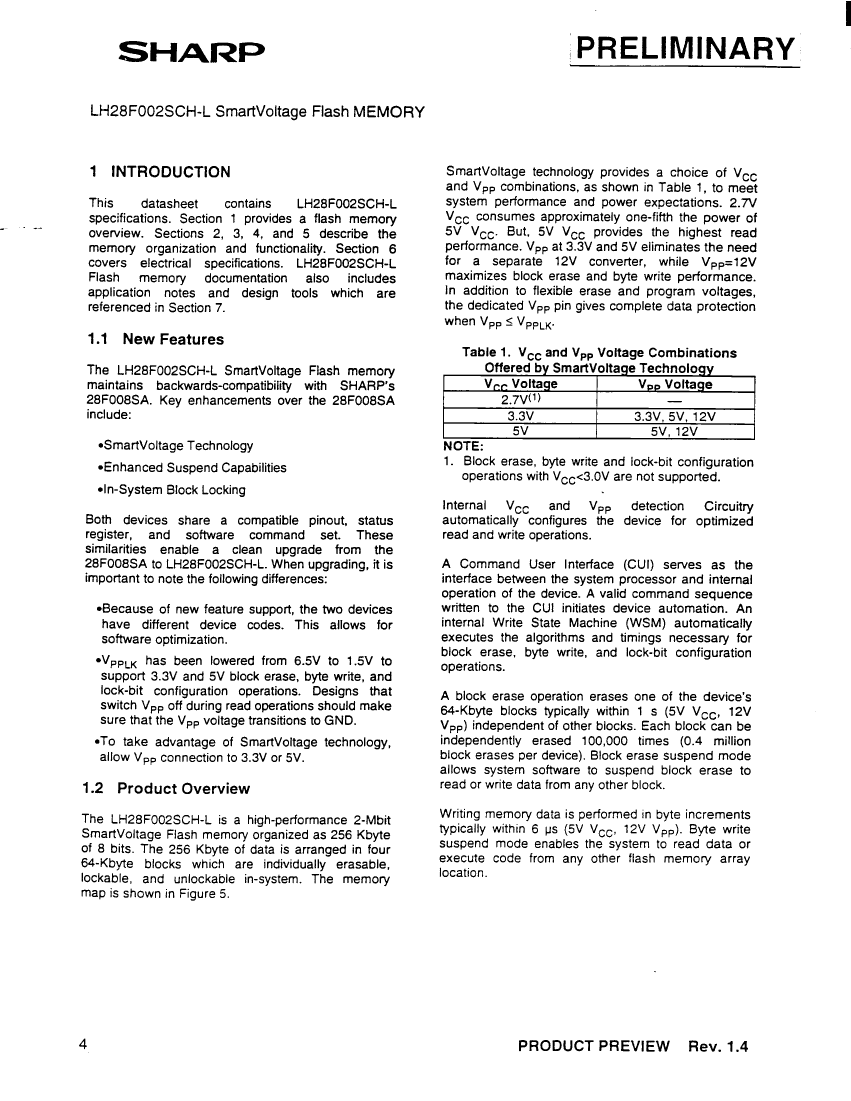

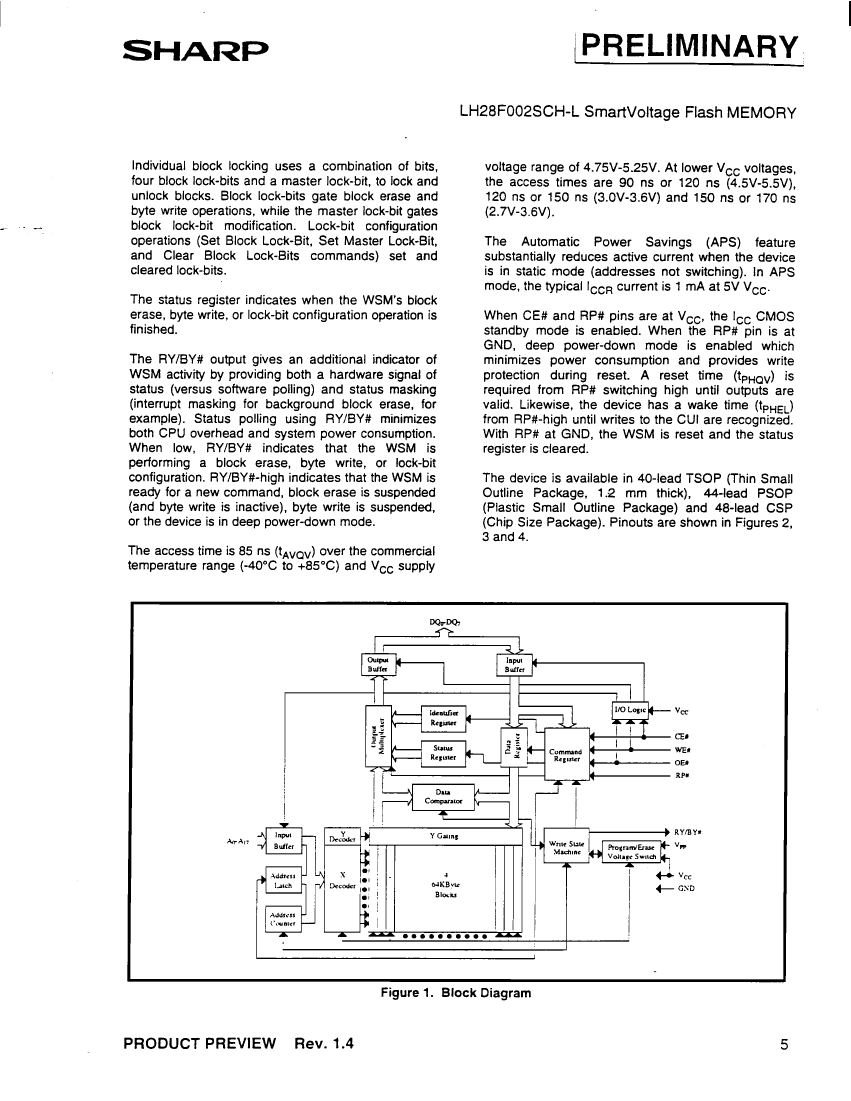

Preview

Download Datasheet

View All

LH28F002SCHN-L12 Related Products

	LH28F002SCHN-L12	LH28F002SCHB-L12	LH28F002SCHB-L85	LH28F002SCHN-L85	LH28F002SCHT-L12	LH28F002SCHT-L85
Description	Flash, 256KX8, 120ns, PDSO44, 13.20 X 28.20 MM, PLASTIC, SOP-44	Flash, 256KX8, 170ns, PBGA48, 6 X 8 MM, PLASTIC, CSP, FBGA-48	Flash, 256KX8, 150ns, PBGA48, 6 X 8 MM, PLASTIC, CSP, FBGA-48	Flash, 256KX8, 85ns, PDSO44, 13.20 X 28.20 MM, PLASTIC, SOP-44	Flash, 256KX8, 170ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	13.20 X 28.20 MM, PLASTIC, SOP-44	6 X 8 MM, PLASTIC, CSP, FBGA-48	TFBGA,	13.20 X 28.20 MM, PLASTIC, SOP-44	10 X 20 MM, PLASTIC, TSOP1-40	TSOP1,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	170 ns	150 ns	85 ns	170 ns	150 ns
JESD-30 code	R-PDSO-G44	R-PBGA-B48	R-PBGA-B48	R-PDSO-G44	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
length	28.2 mm	8 mm	8 mm	28.2 mm	18.4 mm	18.4 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	44	48	48	44	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TFBGA	TFBGA	SOP	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Programming voltage	3.3 V	3 V	3 V	3.3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.15 mm	1.2 mm	1.2 mm	3.15 mm	1.2 mm	1.2 mm
Nominal supply voltage (Vsup)	5 V	3.3 V	3.3 V	5 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	BALL	BALL	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	1.27 mm	0.5 mm	0.5 mm
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	13.2 mm	6 mm	6 mm	13.2 mm	10 mm	10 mm
type	NOR TYPE	NOR TYPE	-	NOR TYPE	NOR TYPE	-
Other features	-	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	-	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
Parallel/Serial	-	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL
Maximum supply voltage (Vsup)	-	3.6 V	3.6 V	-	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	2.7 V	2.7 V	-	2.7 V	2.7 V
