PN7288: DescriptionWide Band Low Power Amplifier, 5MHz Min, 250MHz Max, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size198KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

PN7288 Overview

Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max, SM-11, 4 PIN

PN7288 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	21 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

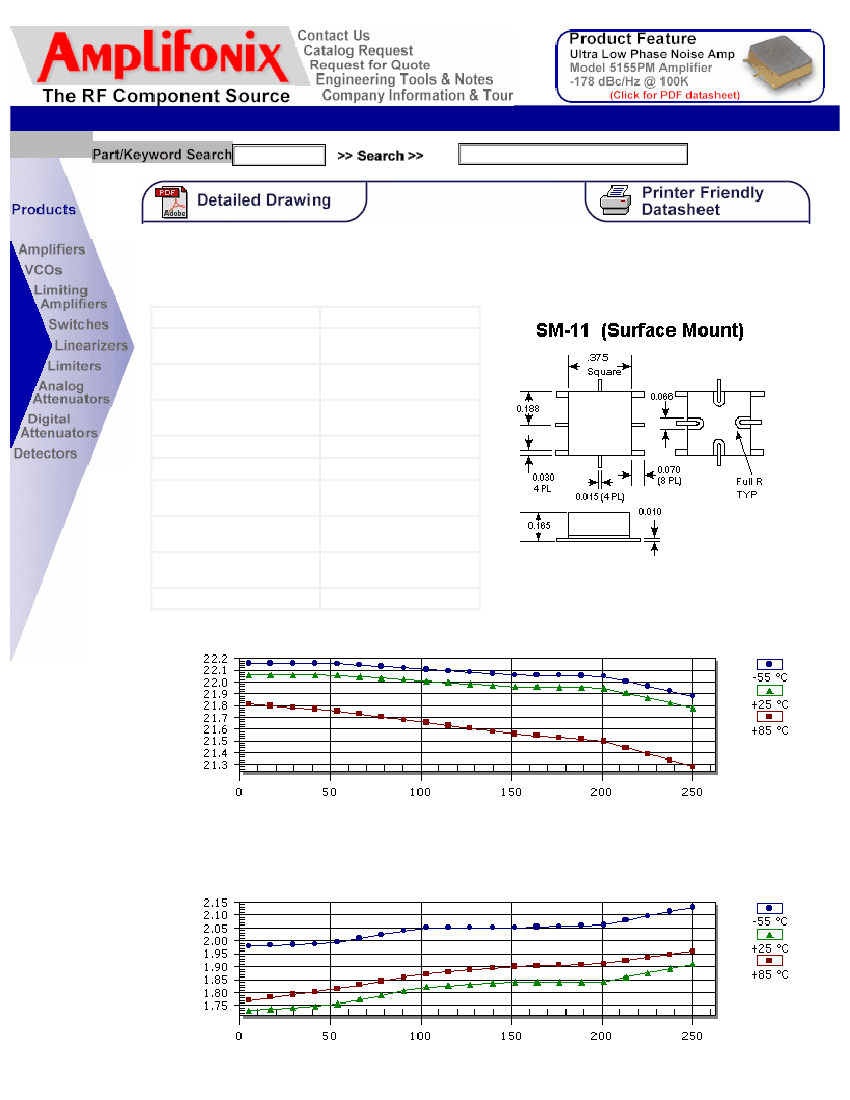

Preview

Download Datasheet

View All

Cross Reference Guide

PN7288 / SPN7288*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 250.0 MHz

22.0 dB Typical

21.0 dB Min

1.8 dB Typical

2.2 dB Max

7.5 dBm Typical

6.5 dBm Min

20.0 dBm Typical

23.0 dBm Typical

1.2/2.0 Input Typ/Max

1.2/2.0 Output Typ/Max

-23.0 dB Typical

-22.0 dB Min

15.0 Volts

18.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

PN7288 Related Products

	PN7288
Description	Wide Band Low Power Amplifier, 5MHz Min, 250MHz Max, SM-11, 4 PIN
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	21 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
