CD74FCT646SM96 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74FCT646SM96

CD74FCT646SM96: DescriptionFCT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24; Categorylogic logic; File Size158KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74FCT646SM96 Overview

FCT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24

CD74FCT646SM96 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
Other features	DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA
series	FCT
JESD-30 code	R-PDSO-G24
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	0.08 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

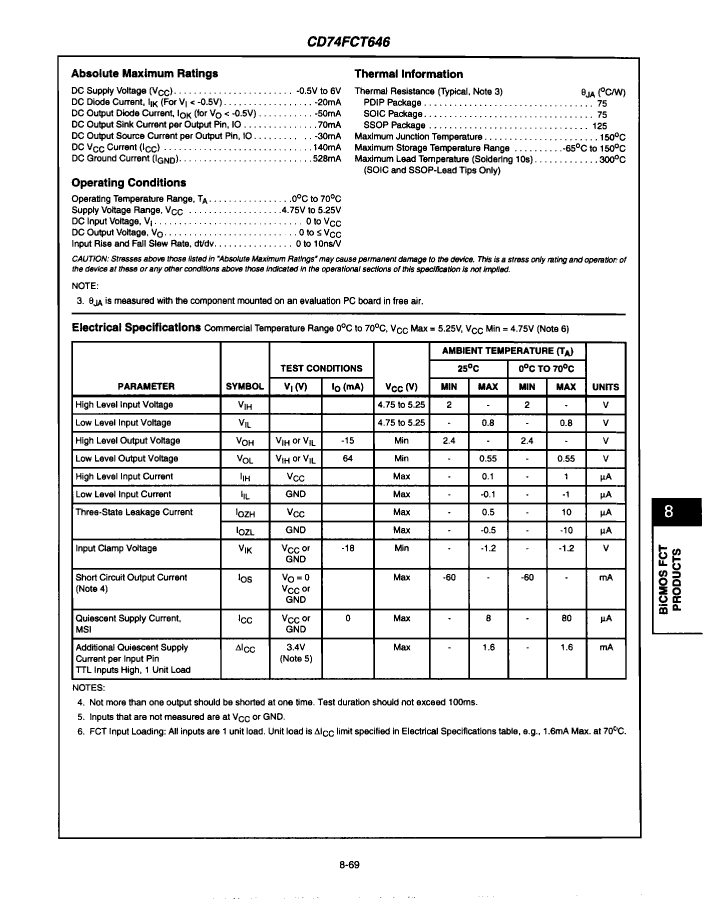

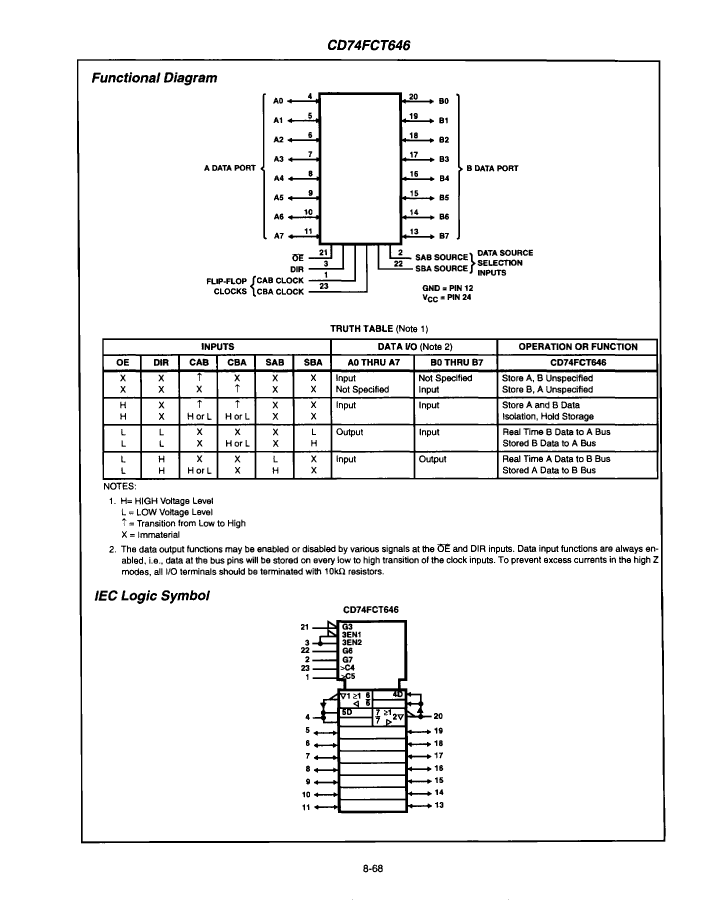

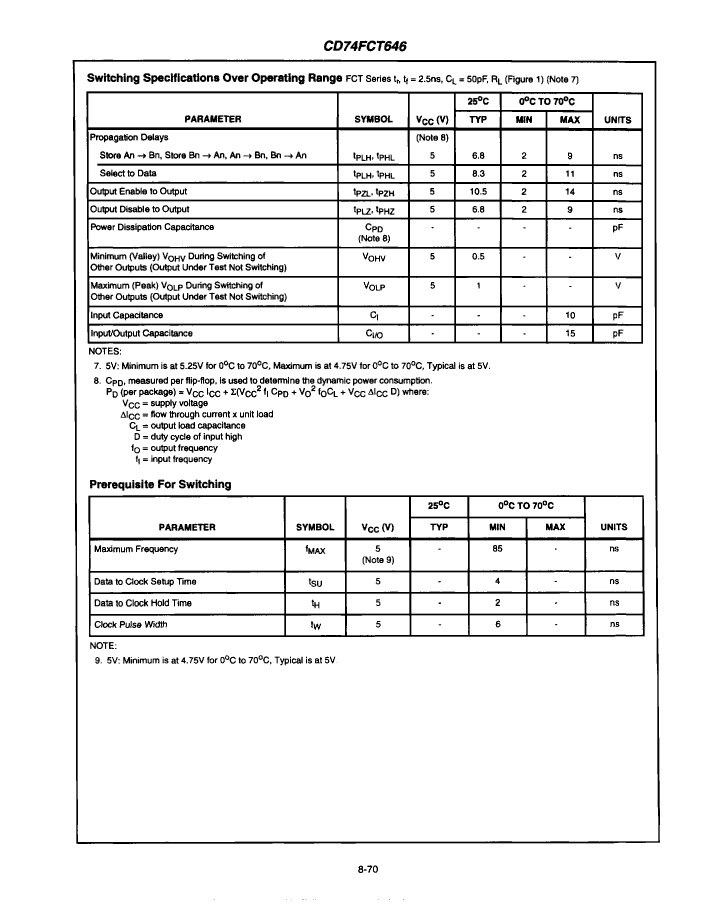

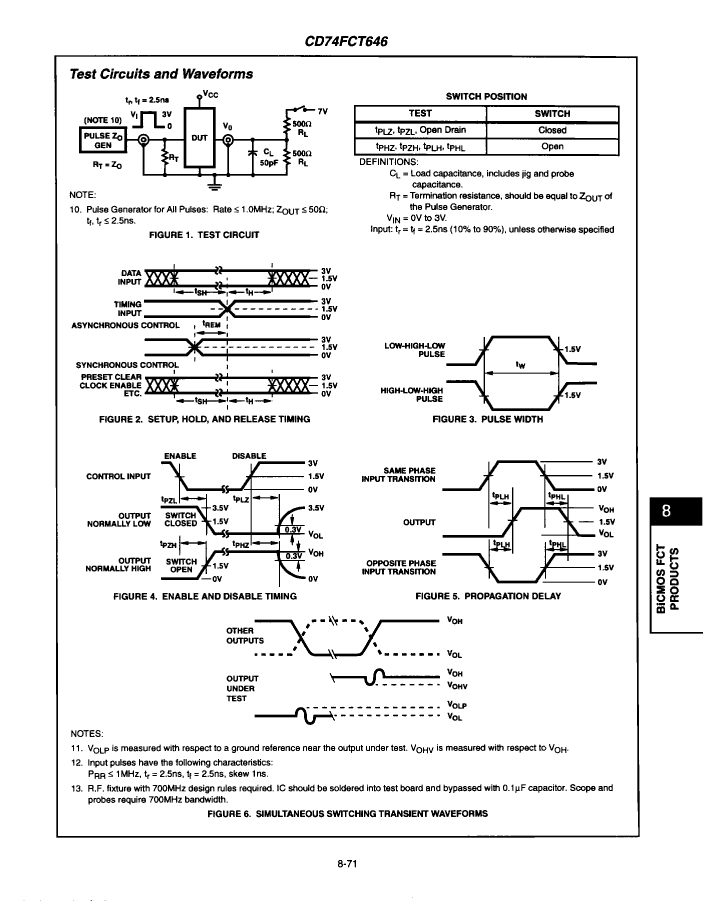

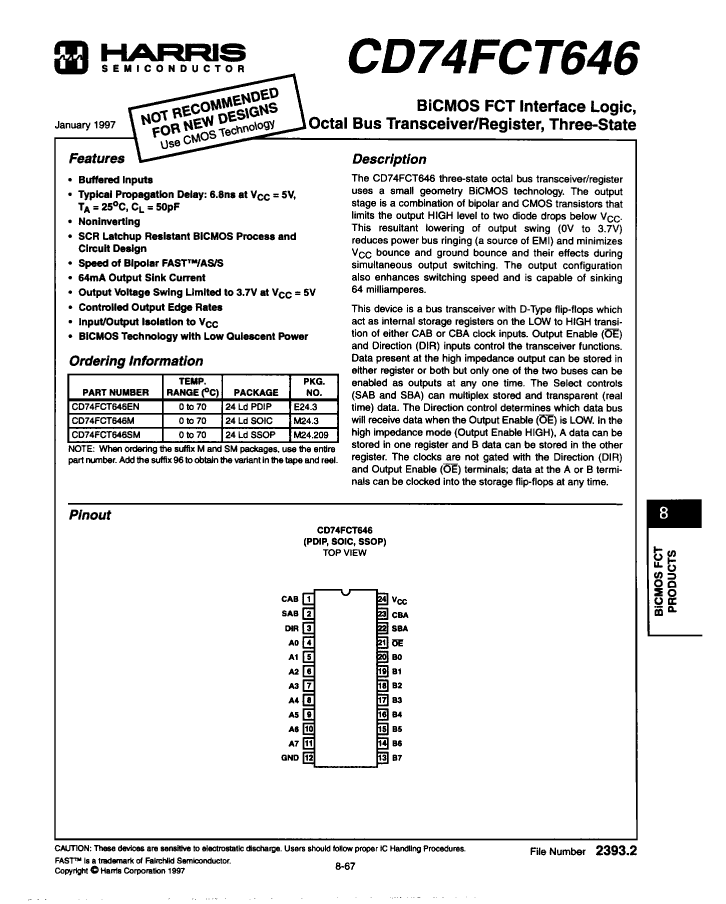

Preview

Download Datasheet

View All

CD74FCT646SM96 Related Products

	CD74FCT646SM96	CD74FCT646SM	CD74FCT646EN	CD74FCT646M	CD74FCT646M96
Description	FCT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SSOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,DIP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC
package instruction	,	SSOP, SSOP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	SOP, SOP24,.4
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	_compli
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES
technology	BICMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
Control type	-	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-609 code	-	e0	e0	e0	e0
MaximumI(ol)	-	0.064 A	0.064 A	0.064 A	0.064 A
encapsulated code	-	SSOP	DIP	SOP	SOP
Encapsulate equivalent code	-	SSOP24,.3	DIP24,.3	SOP24,.4	SOP24,.4
power supply	-	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	-	9 ns	9 ns	9 ns	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	0.635 mm	2.54 mm	1.27 mm	1.27 mm
Trigger type	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
