303091 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 303091

303091: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size272KB，4 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

303091 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,

303091 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.583 inch
subject depth	0.87 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1550VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	1.5568 N
Insulation resistance	1000000000000 Ω
insulator material	POLYCARBONATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	Z,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-1
Evacuation force-minimum value	1.5568 N

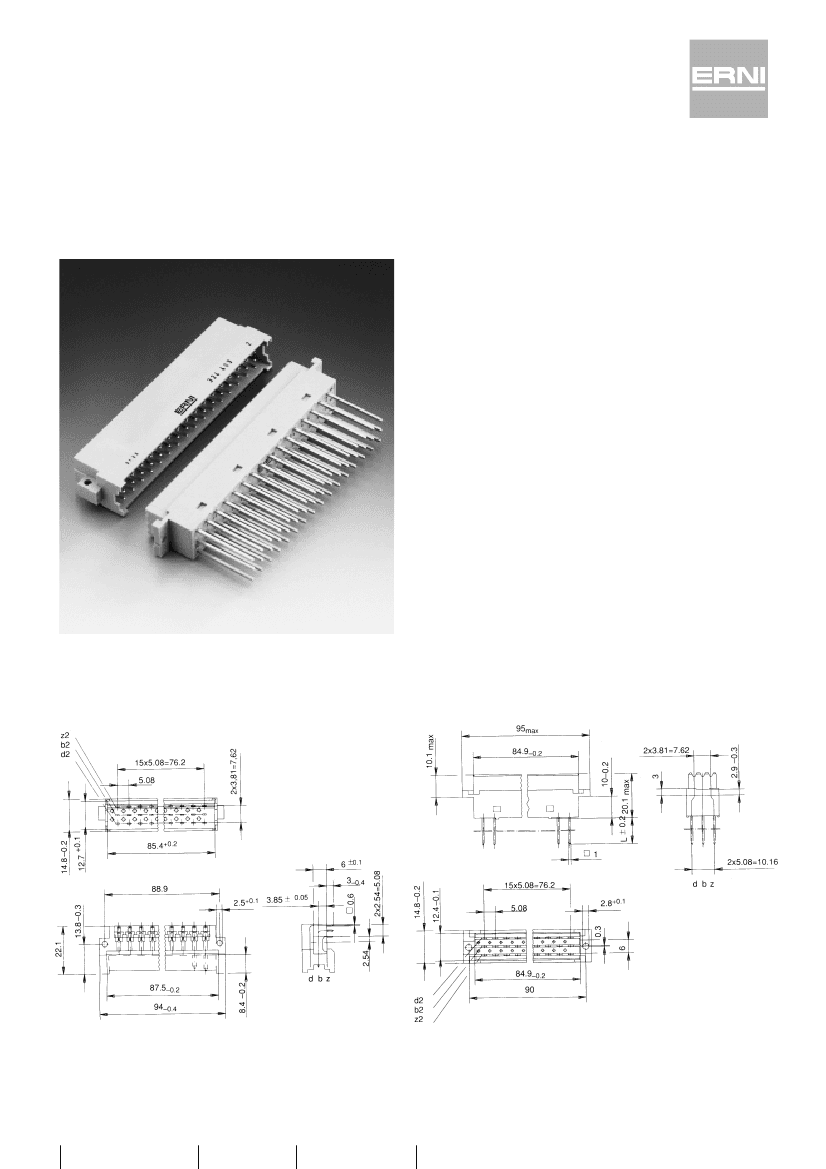

303091 Preview

Size F

as per DIN 41612/IEC 60603-2

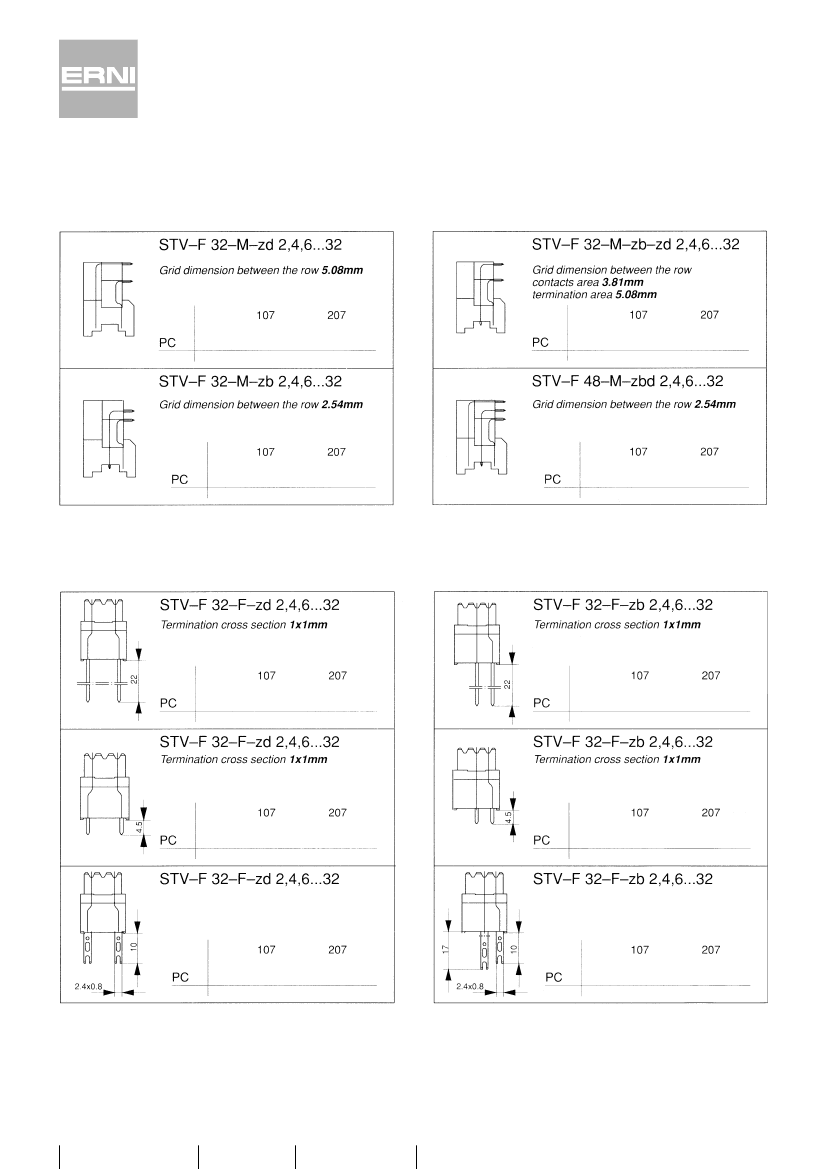

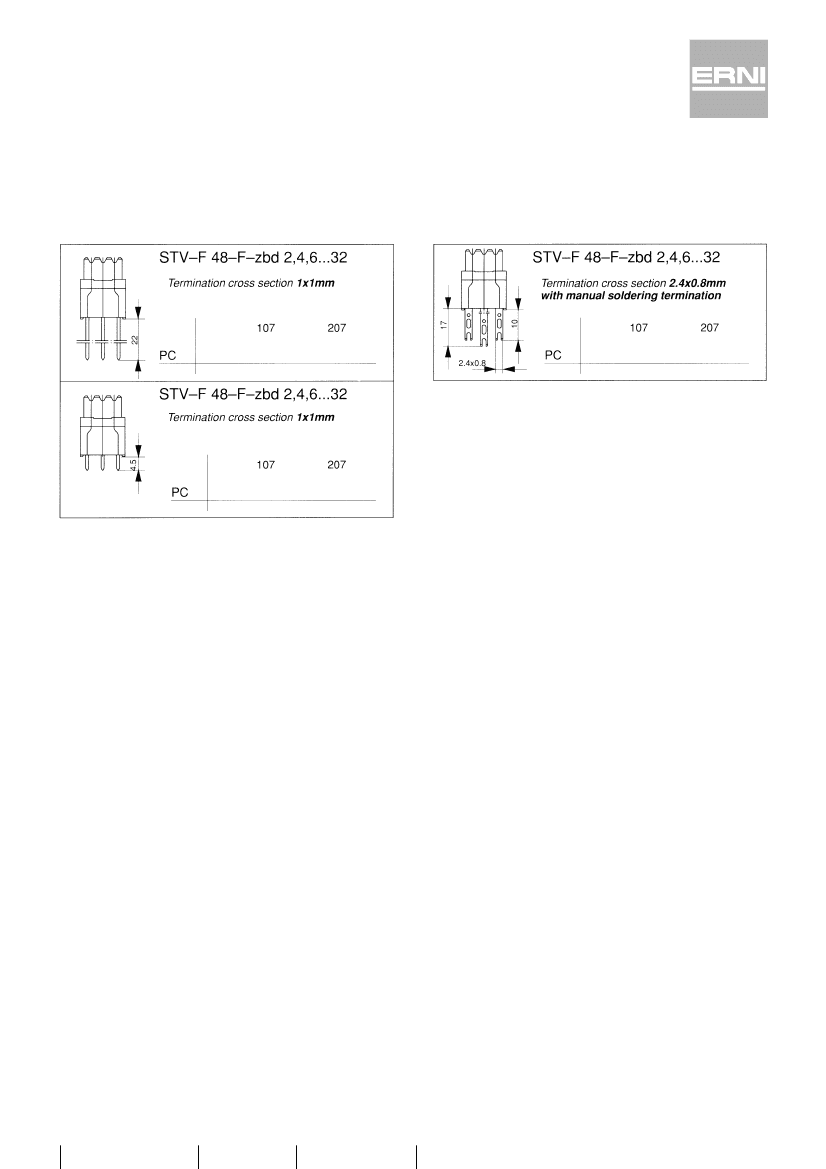

Dimensional drawings

Male connector

Female connector

www.ERNI.com/contact/

catalog E 074484

05/02

Edition 4

Orderings details

Male connector size F

as per DIN 41612/IEC 60603-2, maximum three rows loaded, maximum 48 contacts

303 284

303 484

303 091

303 491

303 283

303 483

334 203

334 403

Male connectors with early make/last break contacts can be

loaded in any position.

Further versions on request.

Female connector size F

as per DIN 41612/IEC 60603-2, maximum three rows loaded, maximum 48 contacts

314 204

314 404

313 289

313 489

314 025

314 425

314 221

314 421

314 047

314 447

Further versions on request.

314 045

314 445

www.ERNI.com/contact/

catalog E 074484

05/02

Edition 4

Orderings details

Female connector size F

as per DIN 41612/IEC 60603-2

344 234

344 434

344 251

344 451

344 265

344 465

Size F connectors have integral coding by means of coding

pins. The male connectors have pre-marked positions which

require holes to be drilled. The coding pins from the male

connectors can then be inserted into the complementary

holes pre-drilled in the female connectors.

All size F male and female connectors are also available for

use in

EX-explosion

protected equipment. The mouldings of

these connectors are manufactured from creepage-proof

material (CTI>000).

Please address any inquiries to our sales consultants.

Further versions on request.

www.ERNI.com/contact/

catalog E 074484

05/02

Edition 4

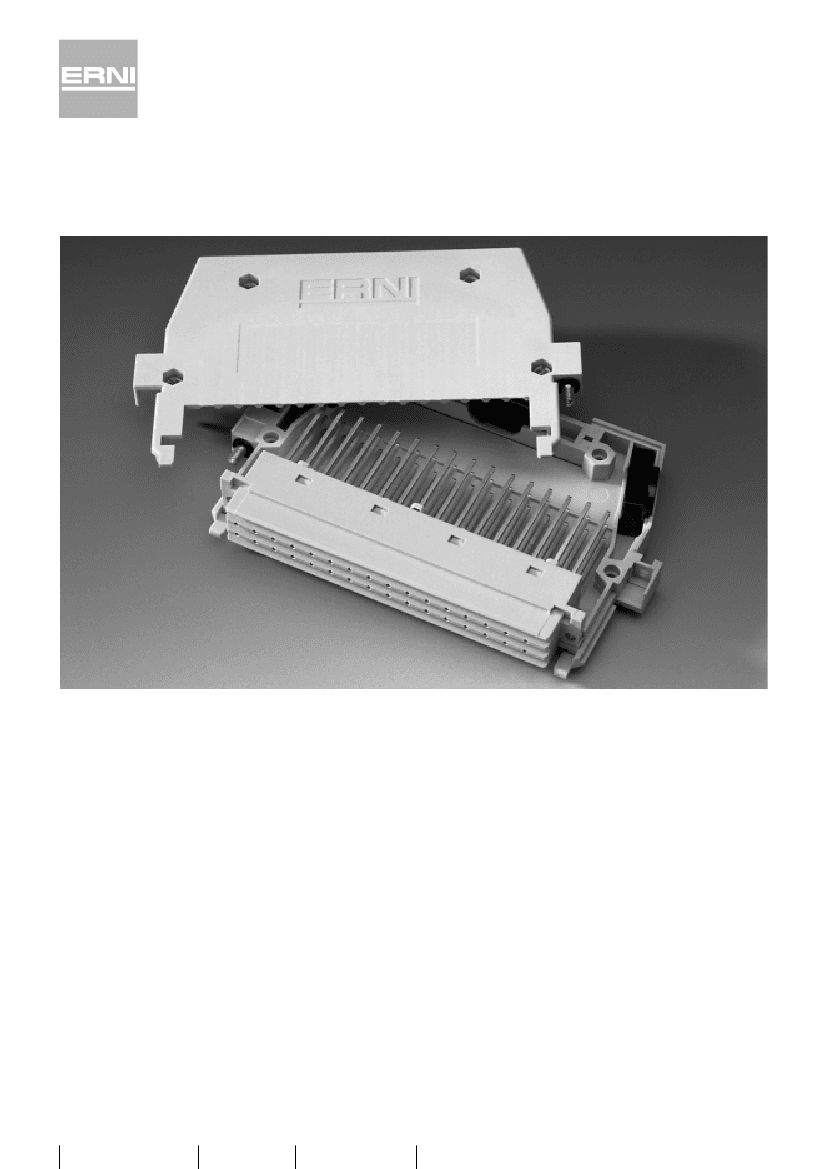

Example of an application

The ERNI interface connector system also offers a complete

range of accessories for size F connectors.

Size F female connectors fit into the series KSG-203

connector housings.

Various guide elements are available for installing these

connectors on the front panel, the guide elements and frames

permit connections from the wiring side of the 19" rack.

The slim design of size F connectors is maintained even

when installed in an ERNI connector housing. The housings

have an overall width of only 15 mm and therefore fit into the

3 x 5.08 mm (15.24 mm) module. With ERNI connector

housings, insertion and withdrawal is achieved by the use of

integral mounting screws.

All individual metal parts around the connector housing are

securely fitted to prevent short circuits during removal.

For applications where protection against incorrect mating is

necessary, a coding system is available. For information on

use and ordering details, please refer to the data sheet

„Mateable Wiring Transfer System“ or consult our sales

department.

www.ERNI.com/contact/

catalog E 074484

05/02

Edition 4
