85106T2024SZ50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85106T2024SZ50

85106T2024SZ50: DescriptionMIL Series Connector, 24 Contact(s), Aluminum Alloy, Female, Solder Terminal, Plug,; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric View All

85106T2024SZ50 Overview

MIL Series Connector, 24 Contact(s), Aluminum Alloy, Female, Solder Terminal, Plug,

85106T2024SZ50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Esterline Technologies Corporation
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

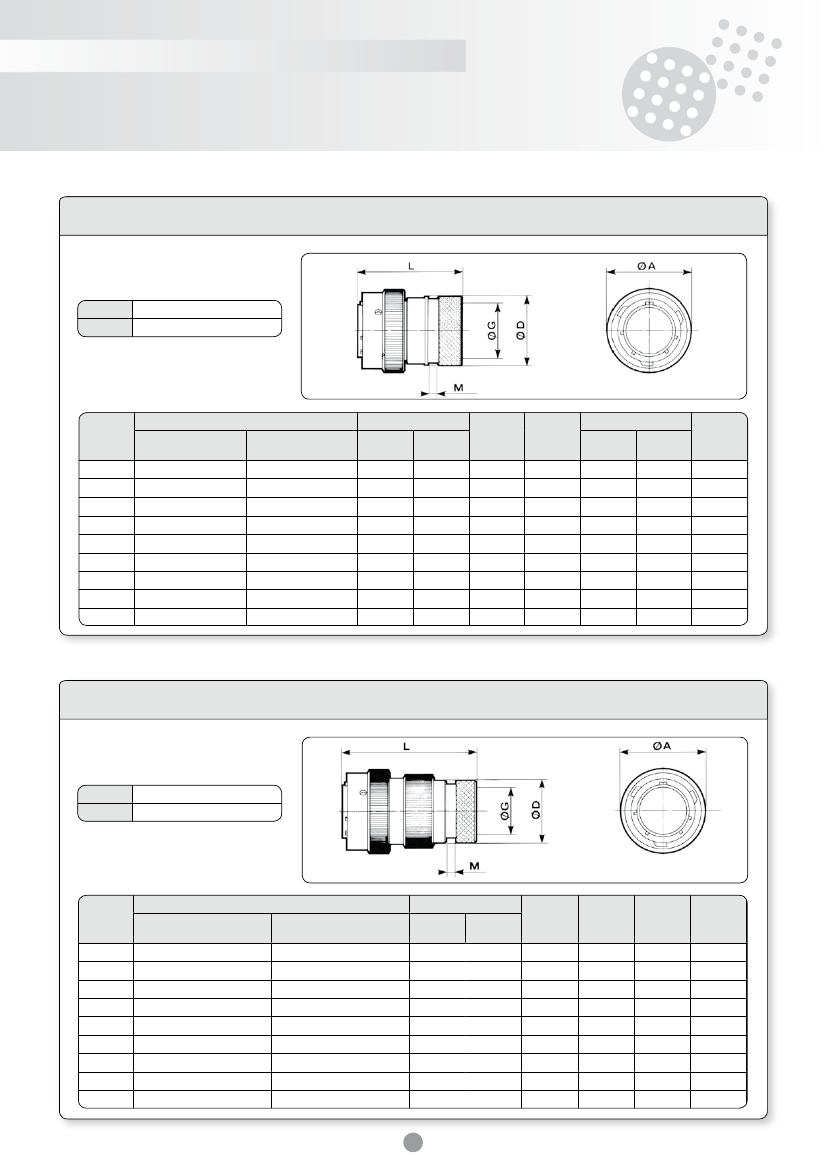

851

Fiche avec raccord droit pour gaine thermorétractable

Plug with straight backshell for heatshrink sleeving

06 T

06 RT

VG 95328 J

Taille de

boîtier

Shell size

Références /

Part numbers

contacts à souder

solder contacts

851 06 T 8..

L max

souder

solder

36.70

39.00

44.00

42.70

sertir

crimp

36.00

38.30

42.90

41.60

contacts à sertir

crimp contacts

851 06 RT 8..

max

19.05

21.80

26.1

29.35

32.50

35.30

38.85

42.05

45.10

max

5.35

18.1

23.45

24.25

29.55

31.75

35.85

38.20

41.30

G max

souder

solder

7.20

10.20

3.20

16.10

19.25

21.30

24.40

27.50

30.60

sertir

crimp

6.70

9.40

1.95

1 5

5.1

18.05

19.95

23.05

25.55

28.65

max

3.70

. 50..

. 50 ..

851 06 T 10..

. 50..

851 06 T 1

. 50..

2..

851 06 T 1

. 50..

4..

851 06 T 16..

851 06 T 18..

851 06 T 20..

851 06 T 22..

851 06 T 24..

851 06 RT 10..

851 06 RT 1

2..

851 06 RT 1

4..

851 06 RT 16..

851 06 RT 18..

851 06 RT 20..

851 06 RT 22..

851 06 RT 24..

. 50..

Fiche avec raccord droit démontable pour gaine thermorétractable

Plug with removable straight backshell for heatshrink sleeving

06 M

06 RM

Taille de

boîtier

Shell size

Références /

Part numbers

contacts à souder

solder contacts

851 06 M 8 ..

L max

souder

solder

50.00

52.00

sertir

crimp

contacts à sertir

crimp contacts

851 06 RM 8 ..

max

19.05

21.80

26.1

29.35

32.50

35.30

38.85

42.05

45.10

max

3.55

5.35

19.48

21.30

24.50

26.45

30.73

34.24

36.47

max

7.05

9.90

2.60

5.90

18.95

20.90

23.70

26.60

29.30

max

3.50

. 50..

. 50 ..

851 06 M 10 ..

851 06 M 1 ..

851 06 M 16 ..

851 06 M 18 ..

851 06 M 20 ..

851 06 M 22 ..

851 06 M 24 ..

. 50..

851 06 RM 10 ..

851 06 RM 1 ..

851 06 RM 16 ..

851 06 RM 18 ..

851 06 RM 20 ..

851 06 RM 22 ..

851 06 RM 24 ..

. 50..

Note : toutes les dimensions sont en mm / all dimensions are in mm
