BUS-63117-140S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> BUS-63117-140S

BUS-63117-140S: DescriptionMIL-STD-1553 Data Bus Transceiver, DDIP-24; CategoryWireless rf/communication Telecom circuit; File Size125KB，16 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

BUS-63117-140S Overview

MIL-STD-1553 Data Bus Transceiver, DDIP-24

BUS-63117-140S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	compli
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Negative supply voltage rating	-12 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.015 mm
surface mount	NO
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

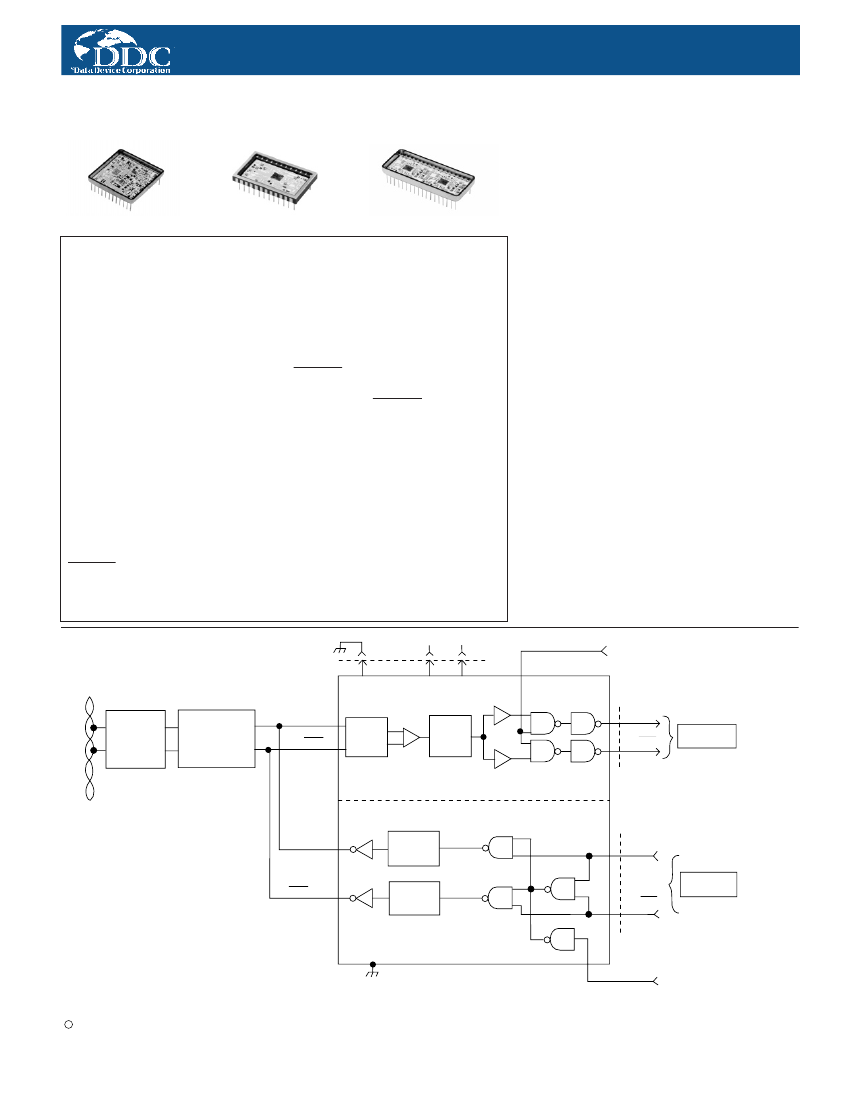

BUS-63100 SERIES

MIL-STD-1553 DATA BUS

SINGLE AND DUAL TRANSCEIVERS

BUS-63102

BUS-63105

BUS-63125

DESCRIPTION

The BUS-63100 transceivers are

complete transmitter and receiver

pairs conforming fully to MIL-STD-

1553A and 1553B. Features available

with selected models of this high reli-

ability series include: Smiths and

Harris interface type choices,

+12 V/+15 V power supply voltage

range, variable threshold levels, and

single (24-pin DDIP or square) and

completely independent dual redun-

dant (36-pin DDIP) packaging config-

urations. All models are also available

in flat packs.

The receiver section of the BUS-

63100 series accepts phase-modula-

ted bipolar data from a MIL-STD-1553

Data Bus and produces TTL signal

data at its outputs: RX Data Out and

RX Data Out. These outputs repre-

sent positive and negative variations

of the input data signals beyond an

internally fixed or externally set

threshold level. An external STROBE

input enables or disables the receiver

outputs.

The transmitter section accepts bipo-

lar TTL signal data at its TX Data and

TX Data input lines and produces

phase modulated bipolar data at the

TX Data and TX Data outputs. The

transmitters’ output voltage level is

typically 28 Vpp to 30 Vpp. An exter-

nal input, INHIBIT, takes priority over

the transmitter inputs and disables

the transmitter when activated with a

logic “1.”

The small size and different model

capabilities available with the

BUS-63100 series simplify engineer-

ing design, making it an excellent

choice for interfacing with any

MIL-STD-1553 system.

FEATURES

•

Conforms Fully to MIL-STD-1553A

and 1553B

•

Some Models Available to Military

(DESC) Drawings

•

Model Capabilities:

Single or Dual Redundant

Packaging

-12 V/-15 V Power Supply Voltage

Range Available

Harris or Smith’s I/O Compatibility

•

Small Size:

Single – 24-Pin DDIP or Square

Dual – 36-Pin DDIP Flat Packs

•

Low Power

•

High Reliability – LSI

±V

1553

DATA

BUS

+5 V

RECEIVER STROBE

BI PHASE

TTL DATA

PHASE MODULATED

BIPOLAR DATA

RX Data In

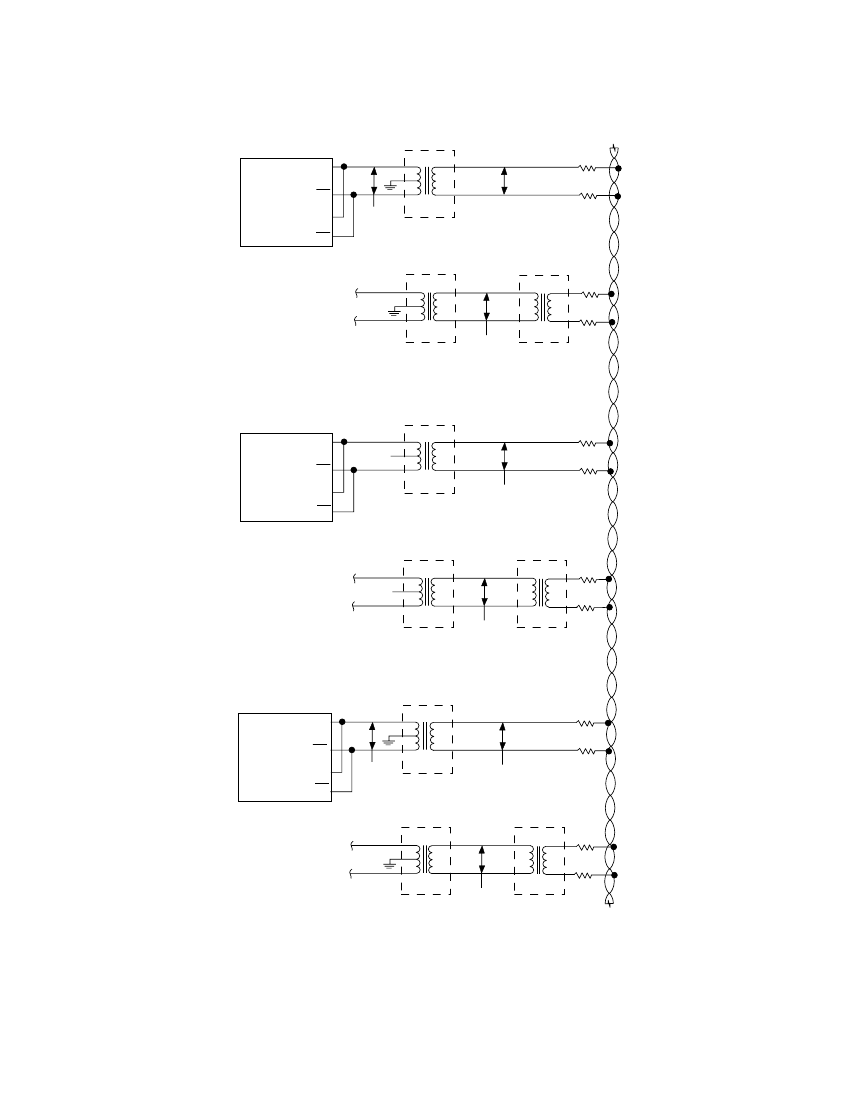

SHORT OR

LONG STUB

COUPLING

ISOLATION

TRANSFORMER

RX Data In

RECEIVER SECTION

COMPARATOR

RX Data

LIMITER

FILTER

RX Data

DECODER

COMPARATOR

TRANSMITTER SECTION

DRIVER

TX Data Out

SHAPING

NETWORK

DRIVER

TX Data Out

SHAPING

NETWORK

TX Data In

ENCODER

TX INHIBIT

FIGURE 1. BUS-63100 BLOCK DIAGRAM

DDC Custom Monolithics utilized in this product are copyright under the Semiconductor chip Protection Act.
