L-15W16NJV4E: Description1 ELEMENT, 0.016 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size183KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-15W16NJV4E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L-15W16NJV4E	-	-	View	Buy Now

L-15W16NJV4E Overview

1 ELEMENT, 0.016 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD

L-15W16NJV4E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.08 Ω
Nominal inductance(L)	0.016 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.6 A
self resonant frequency	11000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 500 MHZ
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

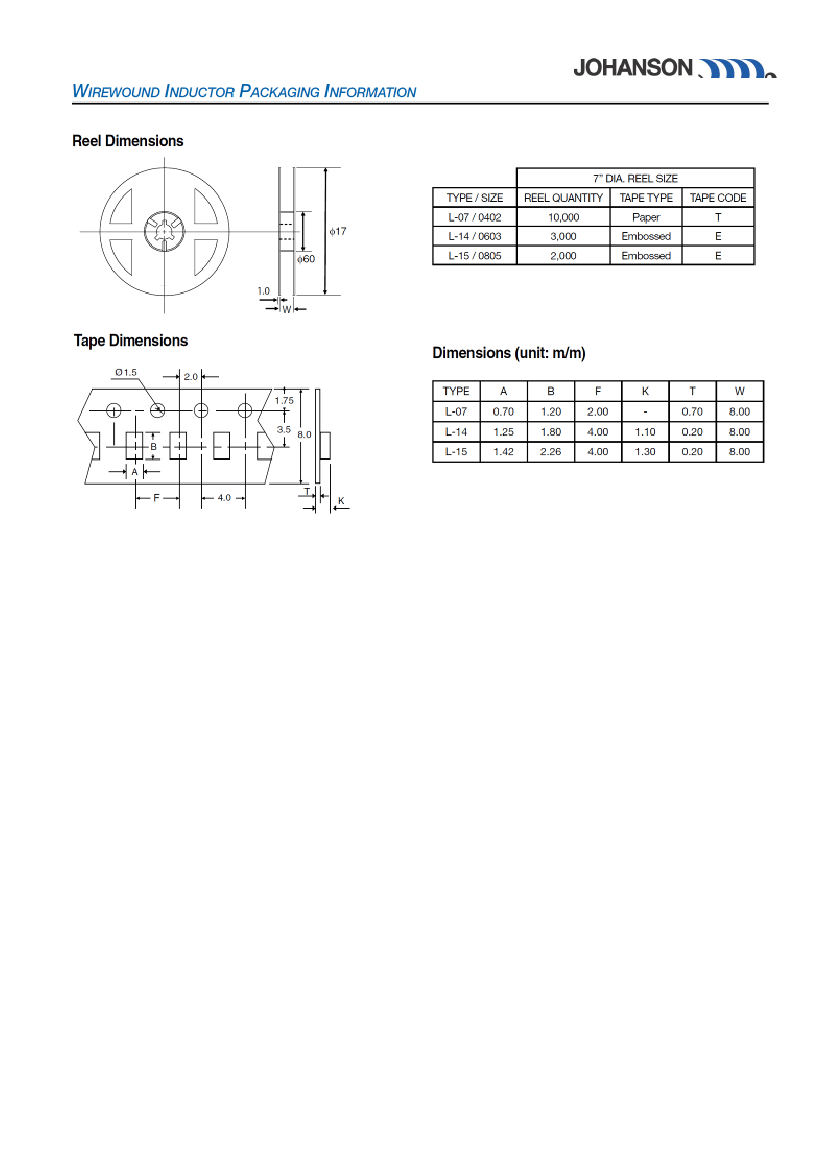

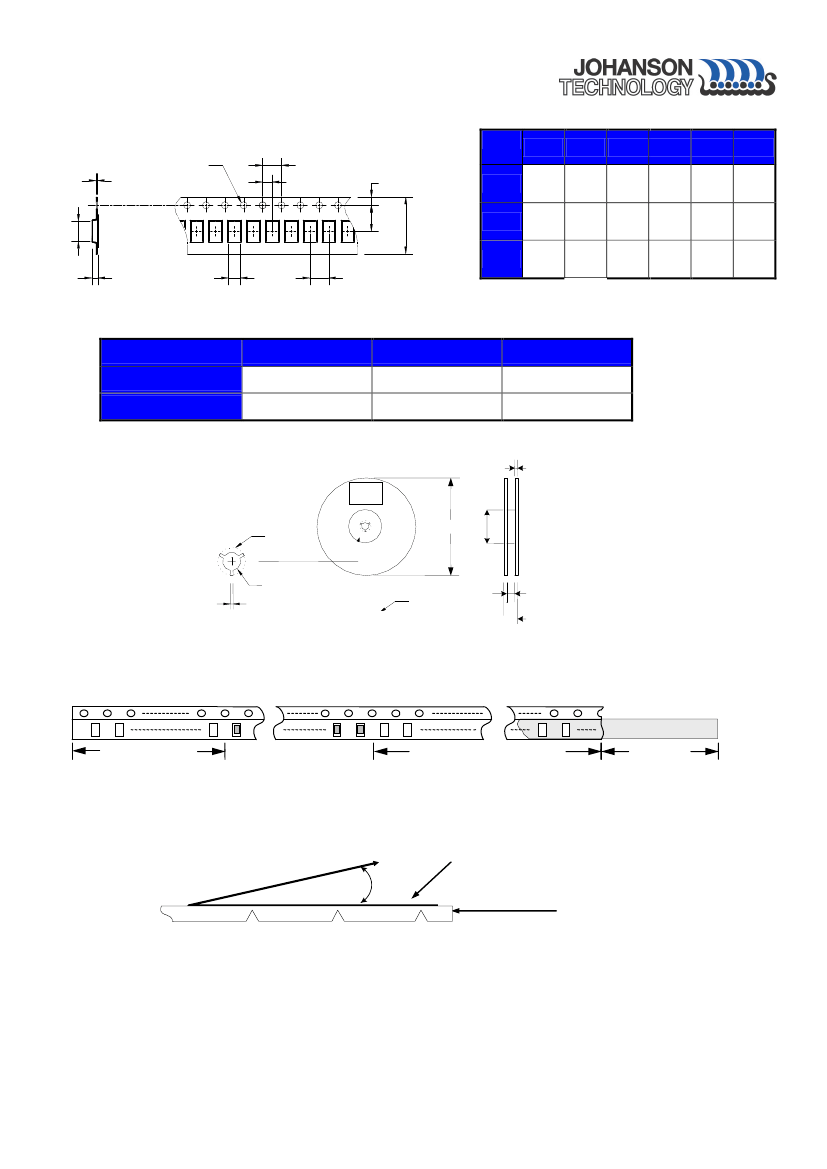

Chip and Wirewound Inductor Packaging Information

Taping Specifications

Type

L-05B

A

2.0±

0.05

A’

4.0±0.1

B

0.38±

0.02

C

0.68±

0.02

D

2.0±

0.05

T

Max.

0.44

Max.

1.0

Max.

1.3

φ1.5

0.2 ±

+0.1/-0.0

0.05

A’

D

(Units: mm)

1.75 ±

0.1

3.5 ± 0.1

8 ± 0.2

C

L-07C

2.0±0.1 4.0±0.1 0.6±0.1 1.1±0.1 2.0±0.1

L-14C

4.0±0.1 4.0±0.1 1.0±0.1 1.8±0.1 2.0±0.1

B

T

A

Quantity

Type

Quantity/reel

Tape material

L-05B

15,000 pcs

Paper

L-07C

10,000 pcs

Paper

L-14C

4,000 pcs

Paper

Reel Dimensions (Unit: mm)

Label

D:21.8 ± 0.8

1.2 ± 0.2

178 ± 2.0

60 ± 0.5

D:13.0 ± 0.3

2.0 ± 0.5

9 ± 0.3

11.4 ± 1.0

Label: Customer’s Name, Johanson P/N, Date

Leader / Trailer Tape (Unit: mm)

Trailer End

Leader End

Trailer (80mm min.)

Empty Compartments with

Cover Tape (80mm min.)

Cover Tape Only

60mm min.

Peel-off Force

Peeling Direction

Top Cover Tape

<10

0

Carrier Tape

Peel-off force should be in the range of 0.1 – 0.6 N at a peel-off speed of 300±10 mm/min .

Notes

The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery

conditions when placing your order.

L-15W16NJV4E Related Products

	L-15W16NJV4E	L-07C10NJV6T	L-14W82NJV4E	L-15W12NJV4E	L-15W27NGV4E
Description	1 ELEMENT, 0.016 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.01 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.082 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.012 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.027 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	conform to	conform to	-	conform to	conform to
Reach Compliance Code	compli	compli	-	compli	compli
ECCN code	EAR99	EAR99	-	EAR99	EAR99
core material	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC
DC Resistance	0.08 Ω	-	-	0.08 Ω	0.12 Ω
Nominal inductance(L)	0.016 µH	0.01 µH	-	0.012 µH	0.027 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4	e3	-	e4	e4
Number of functions	1	1	-	1	1
Number of terminals	2	2	-	2	2
Maximum operating temperature	125 °C	100 °C	-	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	60	8	-	60	60
Maximum rated current	0.6 A	-	-	0.6 A	0.6 A
self resonant frequency	11000 MHz	-	-	11000 MHz	11000 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	-	NO	NO
special characteristics	Q MEASURED AT 500 MHZ	Q MEASURED AT 100 MHZ	-	Q MEASURED AT 500 MHZ	Q MEASURED AT 500 MHZ
surface mount	YES	YES	-	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	-	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND
Tolerance	5%	5%	-	5%	2%
