GD54HCT02J datasheet, PDF - EEWORLD Datasheet

GD54HCT02J: DescriptionNOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14,; Categorylogic logic; File Size83KB，4 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

GD54HCT02J Overview

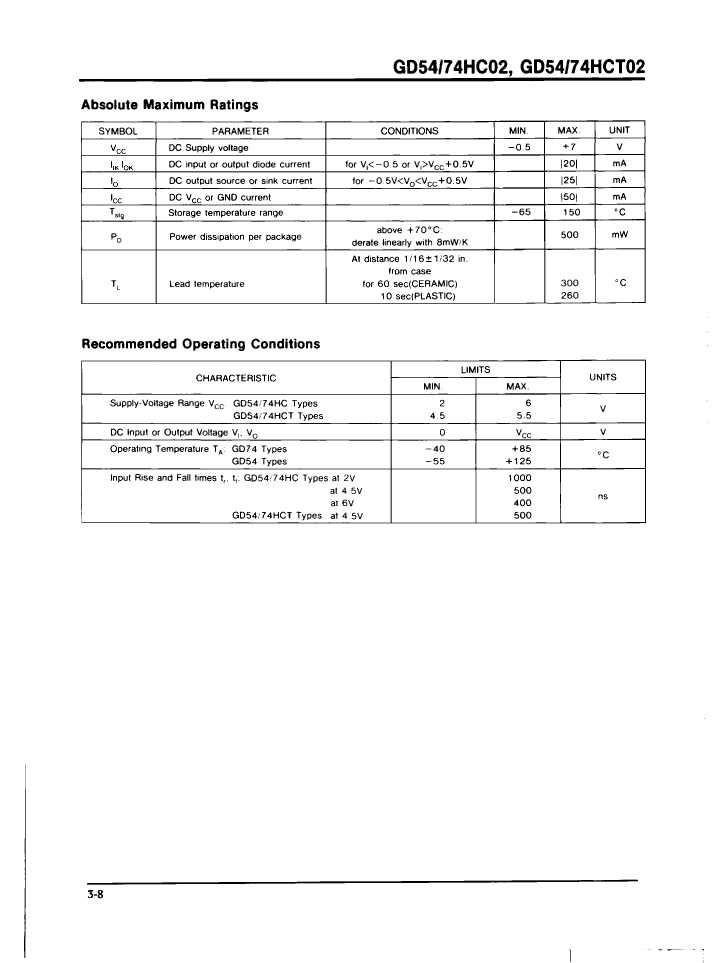

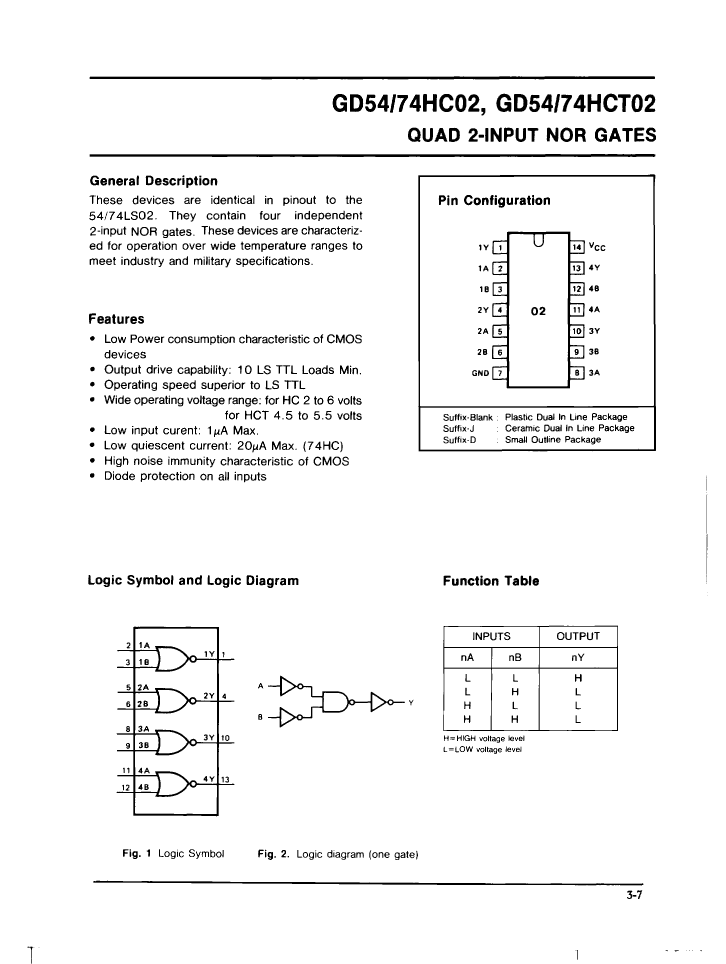

NOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE

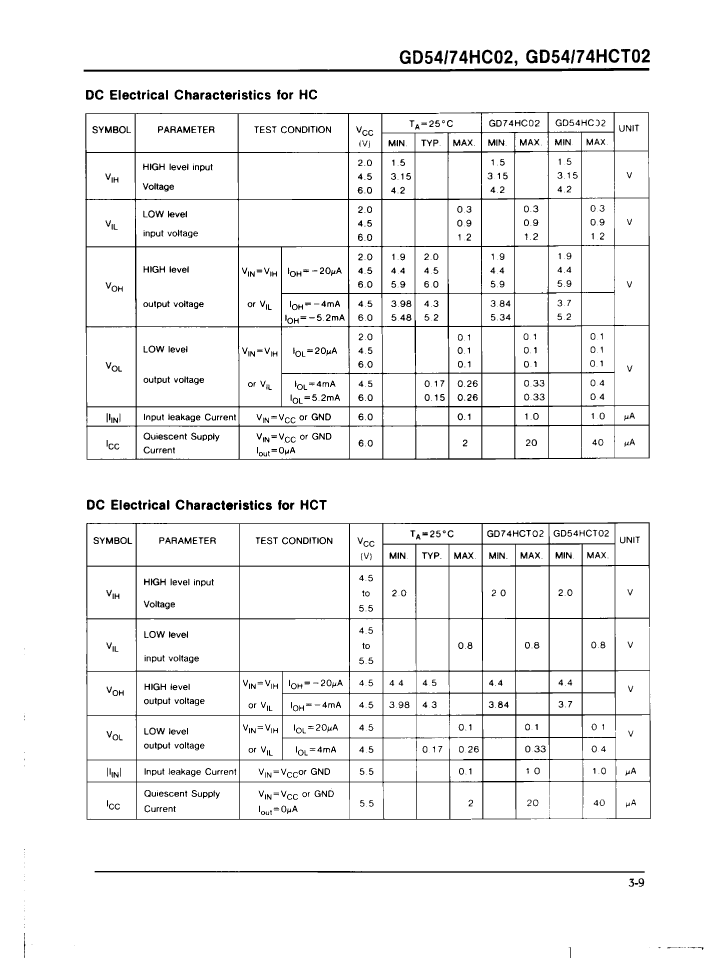

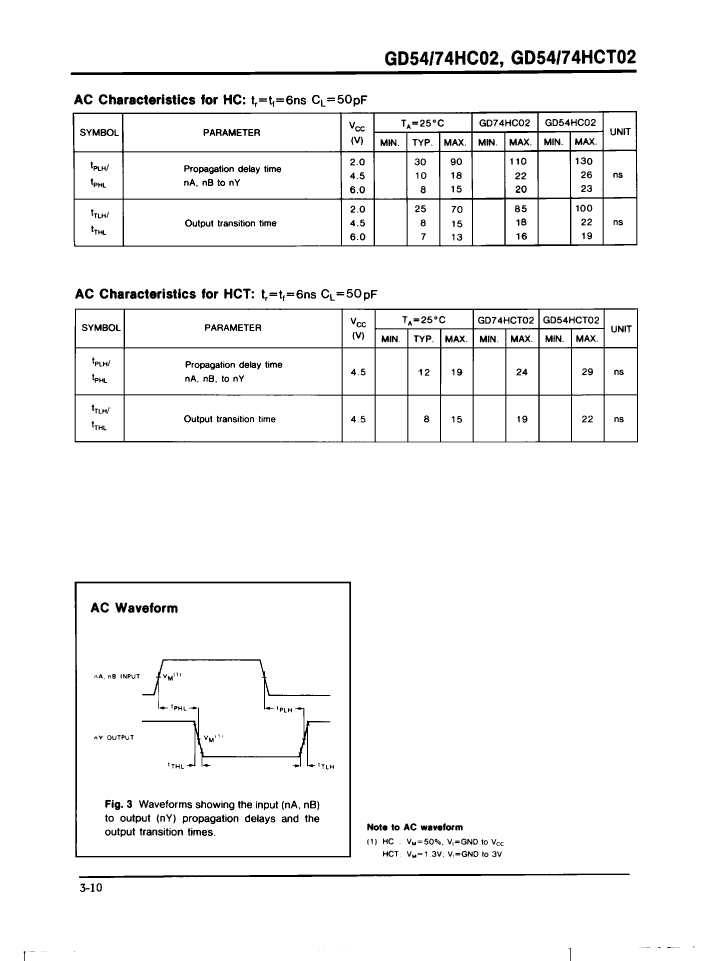

propagation delay (tpd)	29 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
